57A-4
INTERIOR EQUIPMENT
Dashboard: Removal - Refitting
57A

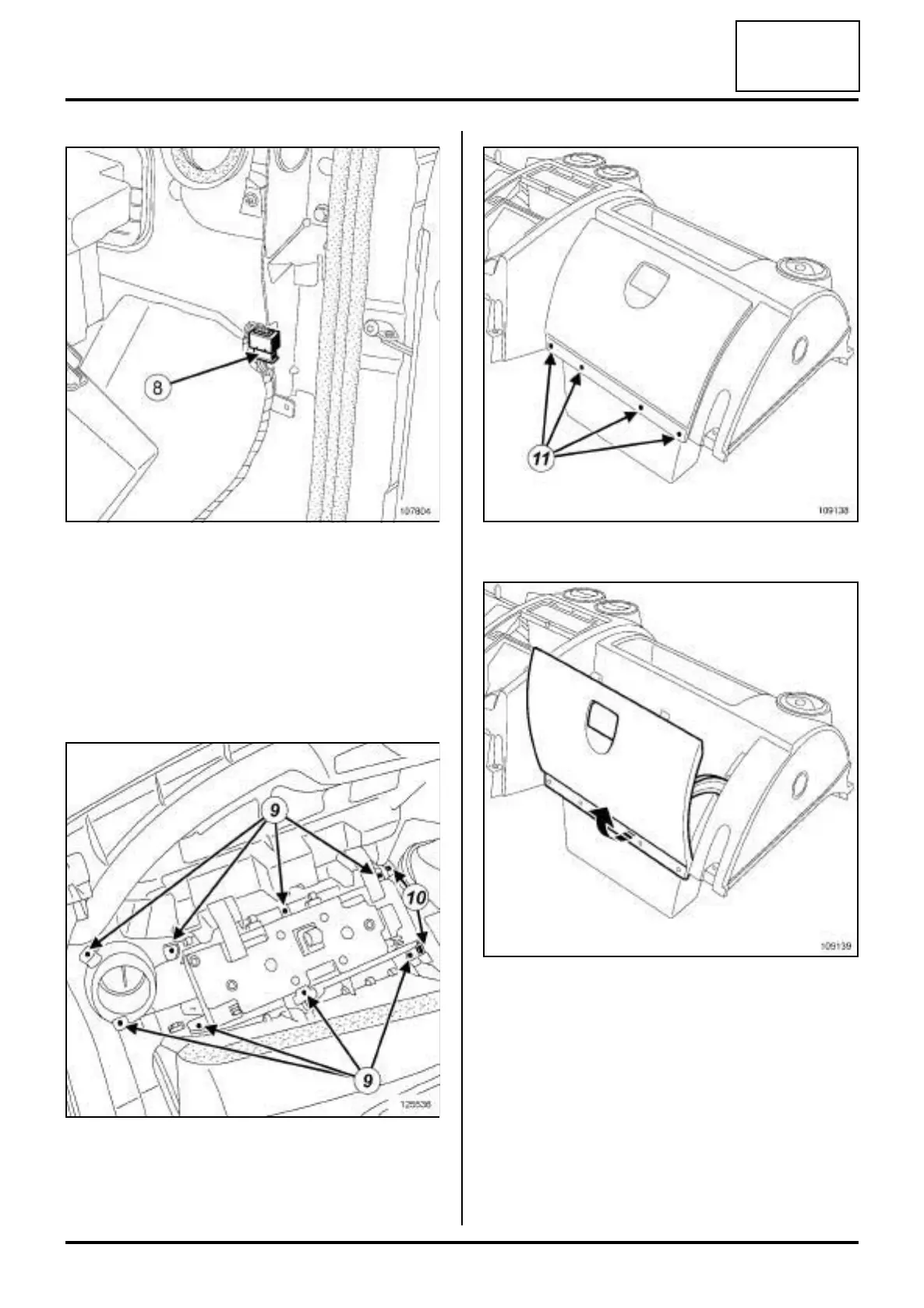

a Disconnect the connector (8) .
a Remove:
-the dashboard (this operation requires two people),
-the passenger front airbag (depending on equip-
ment level) (see Passenger's frontal airbag: Re-
moval - Refitting) (88C, Airbags and
pretensioners).
a Remove the bolts (9) .
a Unclip the right-hand side trim at (10) .
a Remove the right-hand side trim.
a Remove the rivets (11) .
a Remove the glove box lid.
REFITTING
I - REFITTING PREPARATION OPERATION
a Ensure that the wiring is in good condition.
107804
125536
109138
109139
