61A-22
HEATING
Heater matrix: Removal - Refitting
LEFT-HAND DRIVE
61A

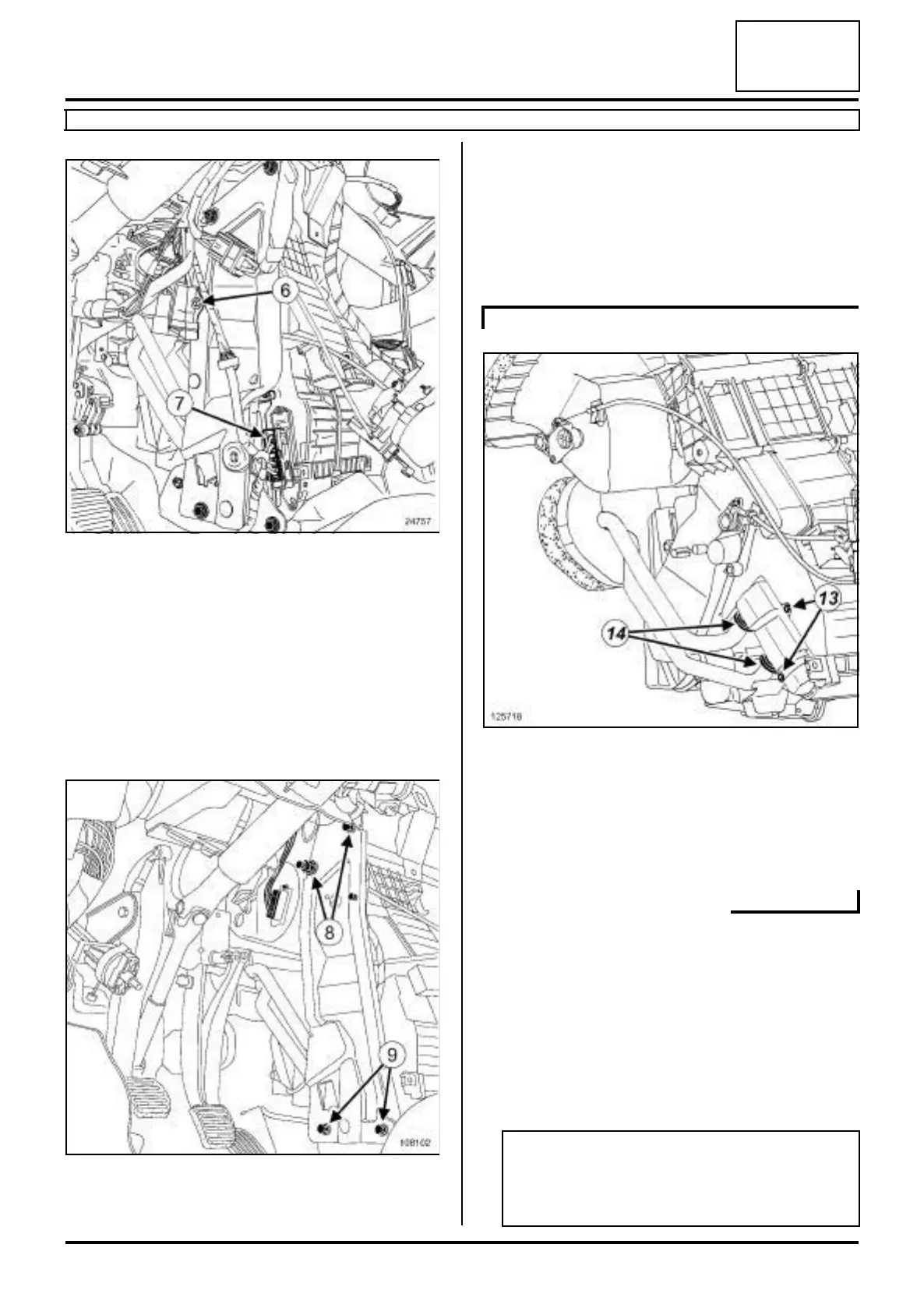

a Remove:
-the heating resistor relay mounting bolt (6) ,
-the heating resistor relay mounting.
a Disconnect the connector (7) from the heating resis-
tor.
a Partially lift the floor carpet to access the strut bolt.
a Mark the position of the strut on the body before re-
moving it.
a Remove:
-the two upper nuts (8) from the strut,
- the two lower bolts (9) from the strut,
- the stay.
a Put a container in place to recover the coolant.
II - REMOVAL OPERATION
a Remove:
- both heater matrix bolts (13) ,
- the heater matrix pipe clips (14) using a screwdriv-
er.
a Remove the heater matrix.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the seals between the pipes and the
heater matrix.
24757
108102
H79
125718
WARNING
To avoid any leaks, check that the pipe surface is
sound before positioning the new seal. The sur-
face must be clean and scratch free.
