Renault Duster 2007 - Page 81

10A-55
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K4M
10A

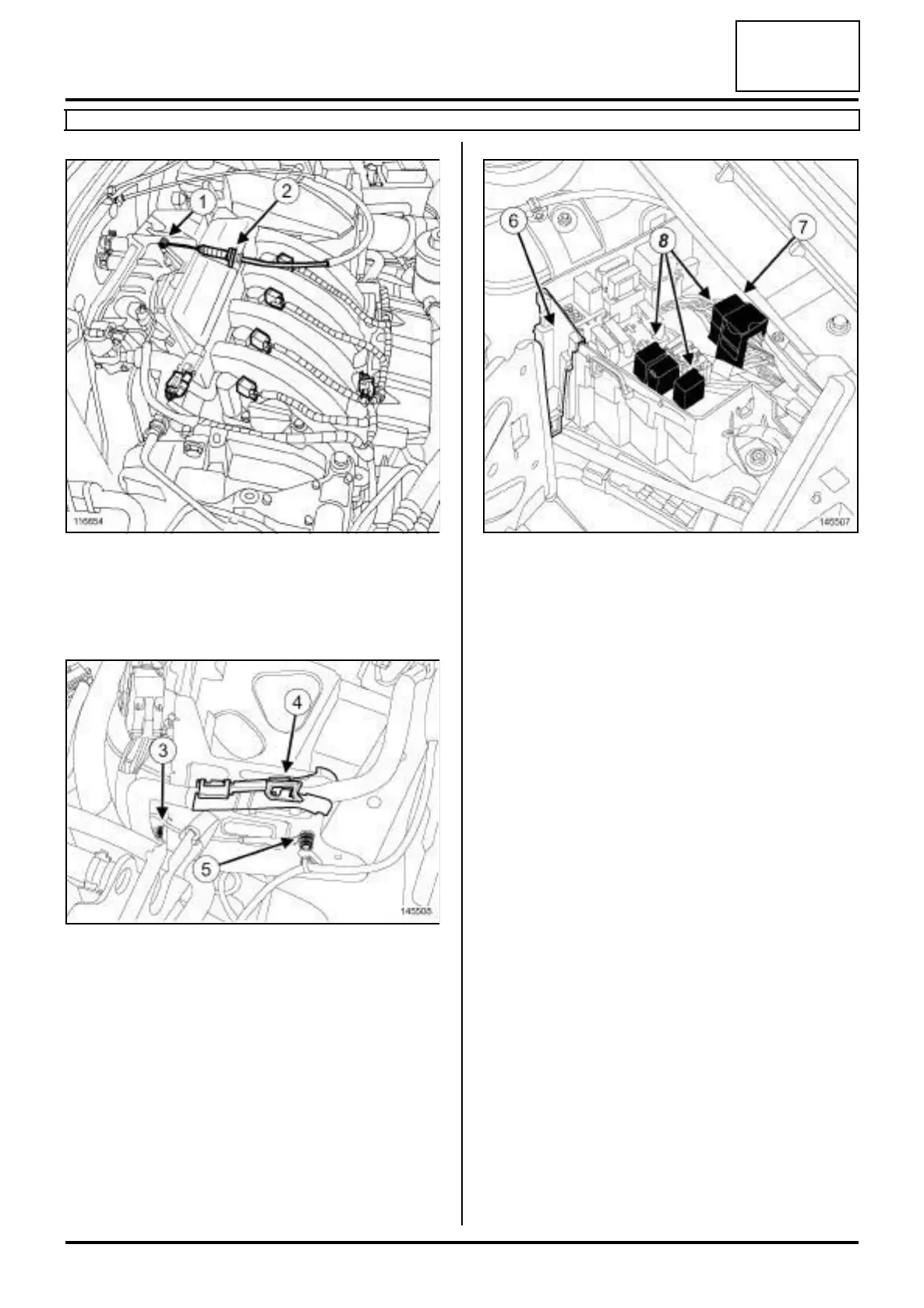

a Disconnect the accelerator cable on the throttle
valve at (1) .
a Remove the accelerator cable from the inlet distribu-
tor at (2) .
a Remove the engine wiring bolt (3) on the battery
mounting.
a Unclip the battery wiring at (4) .
a Remove the earth strap bolt (5) on the battery
mounting.
a Remove the fuse and relay box cover.
a Remove the side protector (6) of the fuse and relay
box.
a Disconnect the engine harness - front wiring con-
nector (7) .
a Unclip the engine harness fuse holders and relays
(8) from their mountings on the fuse and relay box in
the engine compartment.
a Position the engine harness, fuses and relays on the
engine.
a Remove:
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the engine undertray bolts,
- the engine undertray,
- the front bumper (see Front bumper assembly:
Exploded view) and (see Exterior body front
trim assembly: Exploded view) (55A, Exterior
protection),
- the front wheel arch liners (see Exterior body
front trim assembly: Exploded view) (55A, Exte-
rior protection).
a Drain:
- the engine oil if necessary (see 10A, Engine and
cylinder block assembly, Engine oil: Draining -
Refilling, page 10A-32) ,
- the gearbox oil (see Manual gearbox oils: Drain-
ing - Filling) (21A, Manual gearbox),
116654
145508
145507
