10A-62
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K4M
10A

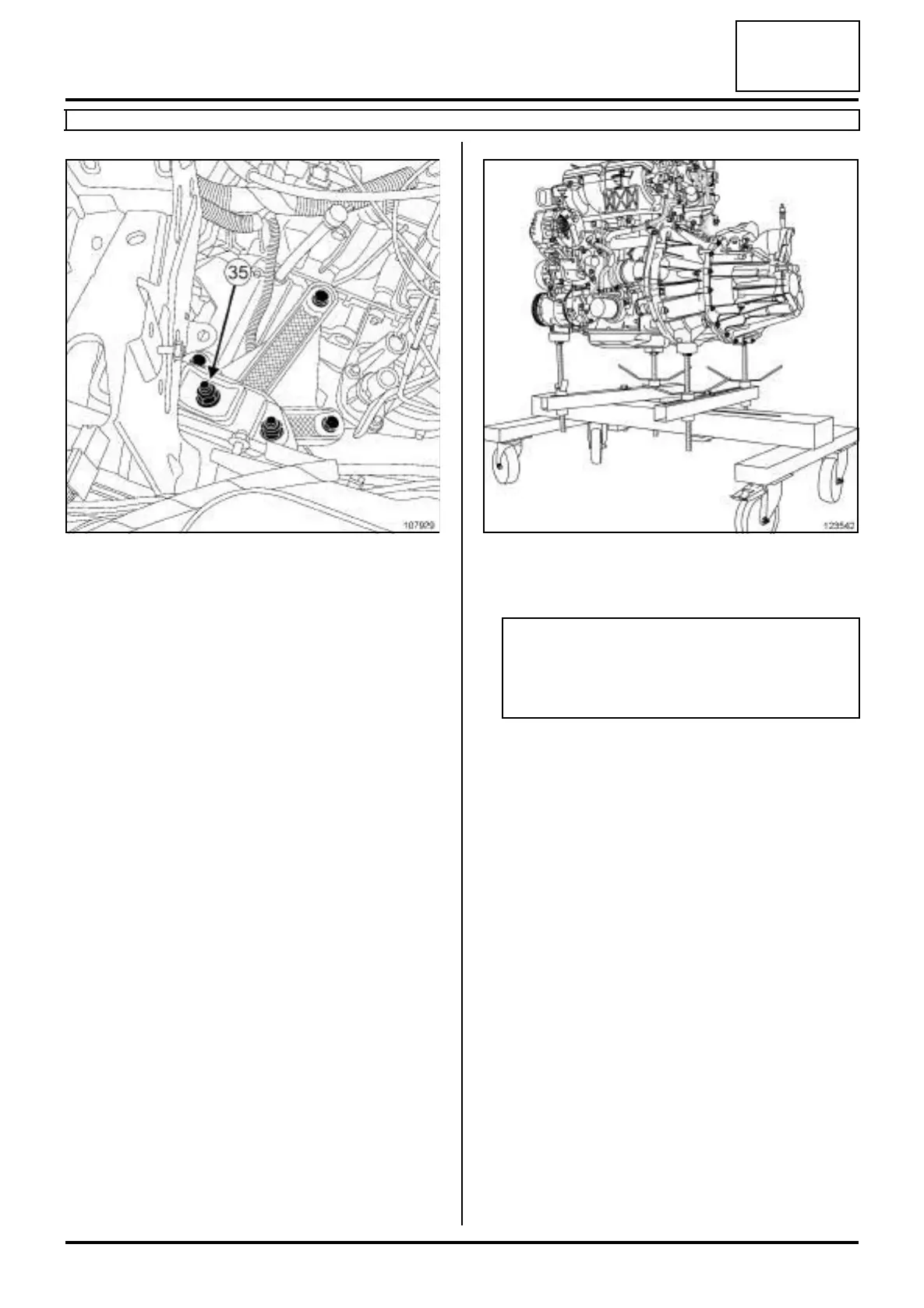

a Remove the nut (35) on the rubber pad support of
the left-hand suspended engine mounting.
a Strike the gearbox stud with a copper hammer to
separate the engine - gearbox assembly from the
body.
a Lift the vehicle to remove the engine - gearbox as-
sembly.
a Remove the engine - gearbox assembly.
REFITTING
I - REFITTING PREPARATION OPERATION
a For standard engine replacements (see Engine:
Standard replacement) (Technical Note 6006A,
10A, Engine and peripherals).
a parts always to be replaced: ring between ex-
haust manifold and catalytic converter
II - REFITTING OPERATION
a Fit the engine - gearbox assembly.
a Refit the nut on the rubber pad support of the left-
hand suspended engine mounting.
a Torque tighten the nut on the rubber pad support
of the left-hand suspended engine mounting (62
N.m).
a Refit the right-hand suspended engine mounting
(see 19D, Engine mounting, Right-hand sus-
pended engine mounting: Removal - Refitting,
page 19D-4) .
107929 123542
Note:
Ensure that no component obstructs the move-
ment of the body around the engine - gearbox
assembly.
