10A-61
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K4M
10A

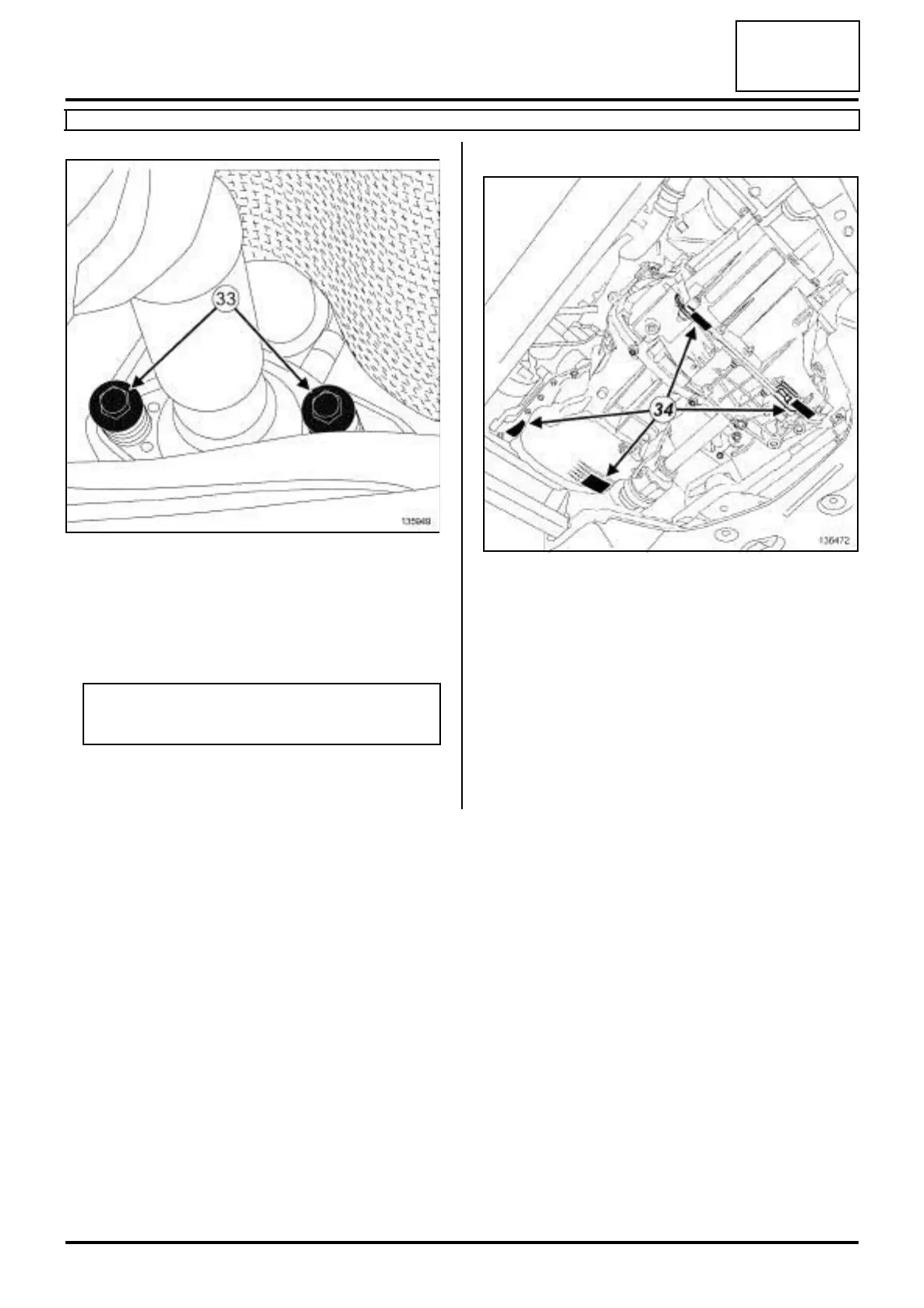

a Remove:
-the bolts (33) from the exhaust flange,
-the exhaust bracket ring.
a Move aside the exhaust pipe.
a Remove the front axle subframe (see Front axle
subframe: Removal - Refitting) (31A, Front axle
components).
II - REMOVAL OPERATION
a Mark the positions of the suspended engine mount-
ings on the body.
a Support the engine - gearbox assembly on the en-
gine marks (34) using the (Mot. 1390).
a Remove the right-hand suspended engine mounting
(see 19D, Engine mounting, Right-hand sus-
pended engine mounting: Removal - Refitting,
page 19D-4) .
135949
Note:
Pull the exhaust pipe backwards.
136472
