10A-60
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K4M
10A

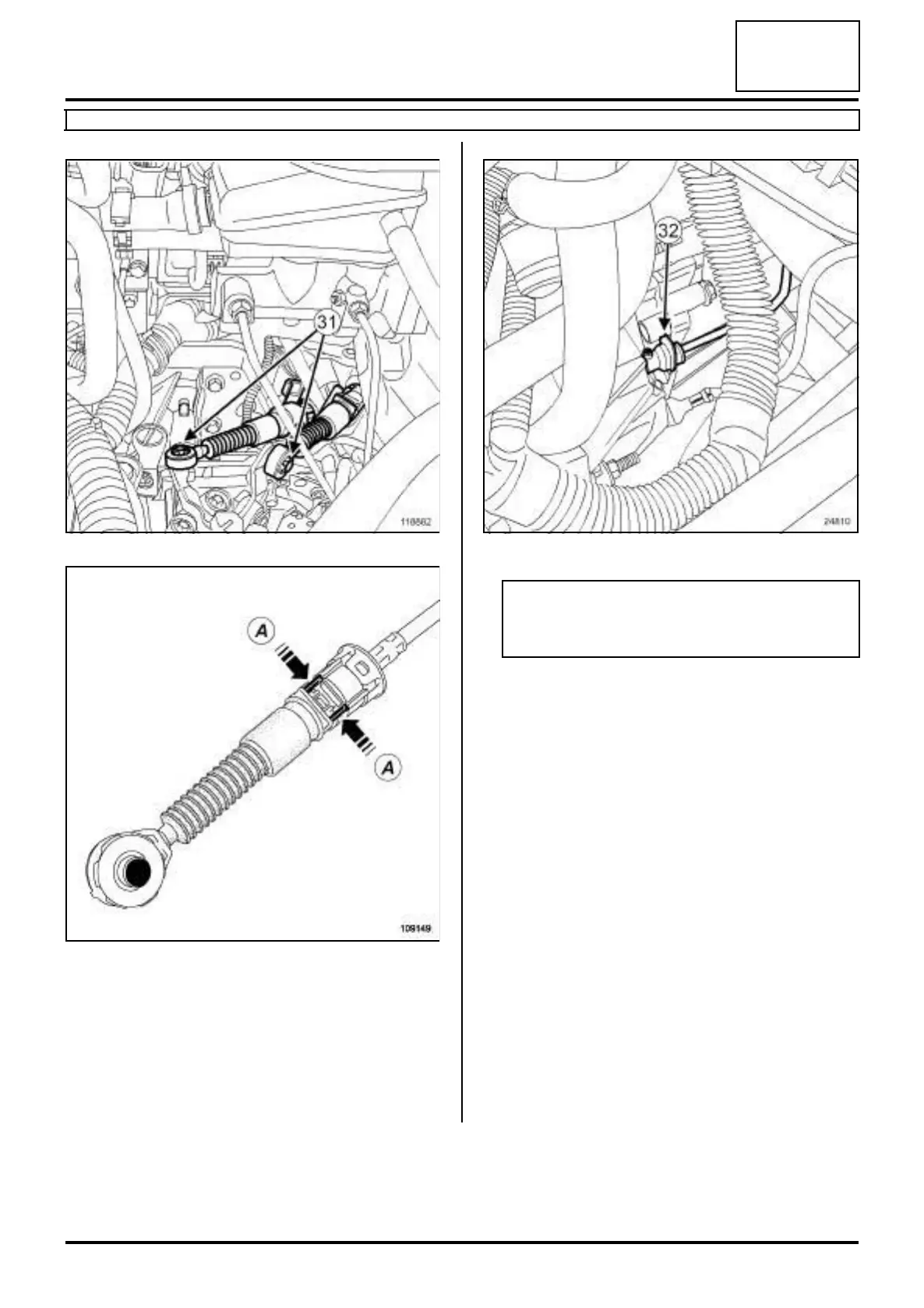

a Unclip:
-the gear control cables on the gearbox at (31) us-
ing a screwdriver,
-the gear control cables from the sleeve stops by
pressing at (A) .
a Move the gear control cables away from the gear-
box.
a
a Disconnect the clutch control pipe on the clutch
slave cylinder by pressing the clip (32) .
a Recover the brake fluid in a container.
a Fit blanking plugs on the pipe openings.
a Remove the lower engine tie-bar (see 19D, Engine
mounting, Lower engine tie-bar: Removal - Refit-
ting, page 19D-8) .
118882
109149
24810
WARNING
Do not pull the clip. If it is incorrectly handled in
any way, the pipe will need to be replaced.
