10A-59
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K4M
10A

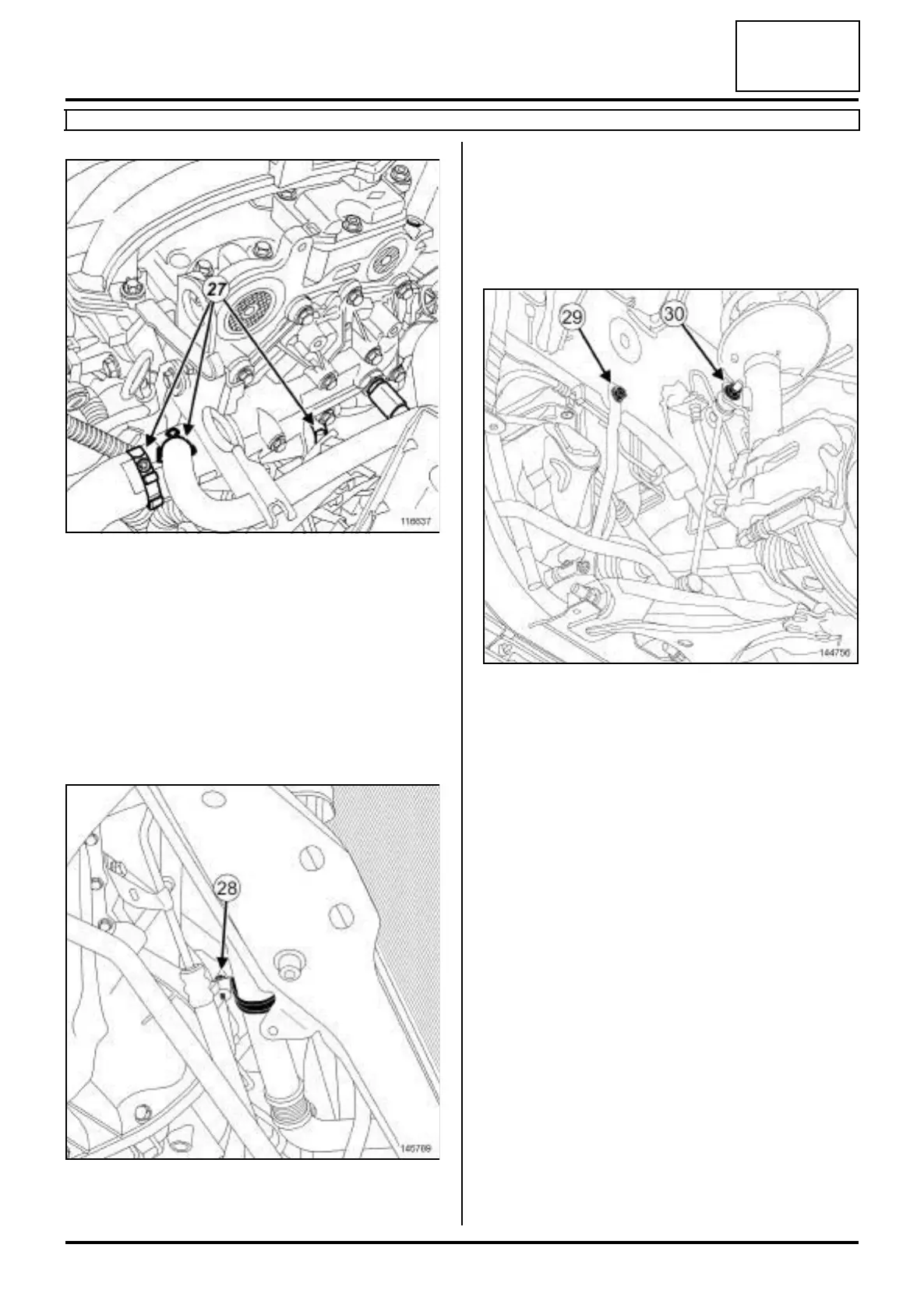

a Move aside the clips (27) of the coolant hoses on the
water chamber using the (Mot. 1448).
a Disconnect the cooling hoses from the water cham-
ber.
a Unclip the downstream oxygen sensor wiring on the
steering box heat shield.
a Disconnect the downstream oxygen sensor connec-
tor.
a Remove the cooling pipe support bolt (28) on the
sump.
a Remove (see ) (36A, Steering assembly):
- the heat shield bolts on the steering box,
- the steering box heat shield,
- the steering box bolts on the front axle subframe.
a Attach the steering rack to the body.
a Remove:
- the front axle subframe tie-rod upper bolts (29) ,
- the anti-roll bar tie rod upper bolts (30) ,
- the front right-hand wheel driveshaft (see Front
right-hand driveshaft: Removal - Refitting)
(29A, Driveshaft),
- the front left-hand wheel driveshaft (see Front left-
hand driveshaft: Removal - Refitting) (29A,
Transmission).
a Pass the power-assisted steering low pressure pipe
over the gearbox cover.
116637
145789
144756
