INSTRUMENT PANEL
Instrument panel: Removal - Refitting
83A

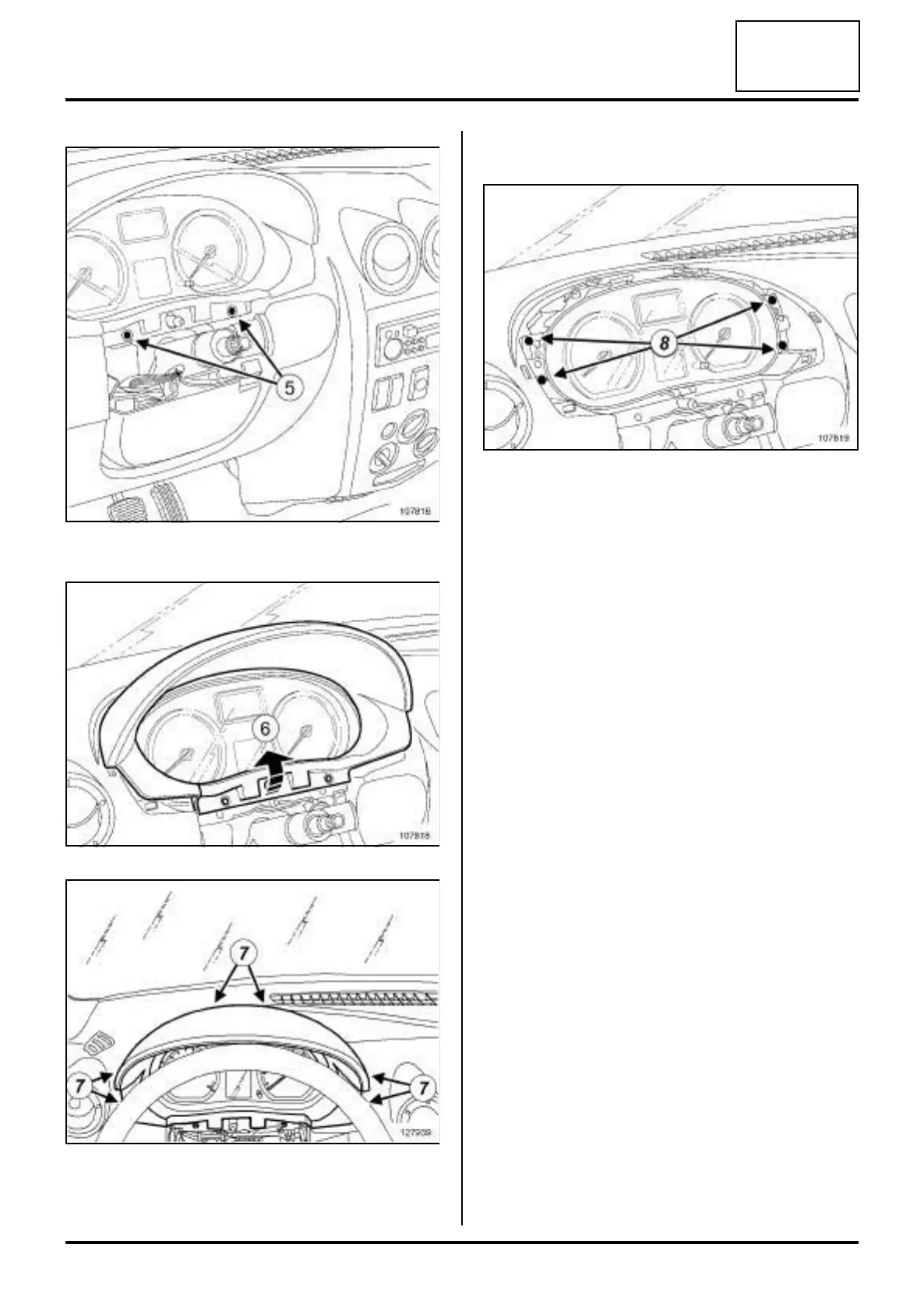

a Remove the bolts (5) of the instrument panel frame.
a Unclip the instrument panel frame at (6) and (7) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the bolts (8) from the instrument panel.
a Unclip the instrument panel.
a Disconnect the connectors from the instrument pan-
el.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Connect the connectors to the instrument panel.
a Clip on the instrument panel.
a Refit the instrument panel bolts.
II - FINAL OPERATION
a Clip in place the instrument panel frame.
a Refit the bolts of the instrument panel frame.
a Clip on:
- the trims,
- the centre trim.
a Clip on:
- the upper half-shell,
- the lower half-shell.
a Refit the two lower bolts.
III - CHECKING AFTER REPAIR
a Switch on the ignition.
a Check the operation of the instrument panel.
a Set the time (see Clock: Before/after repair proce-
dure) .
