84A-9
CONTROL - SIGNALS
Central door locking switch: Removal - Refitting
84A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the radio (see 86A, Radio, Radio: Remov-
al - Refitting, page 86A-3) .

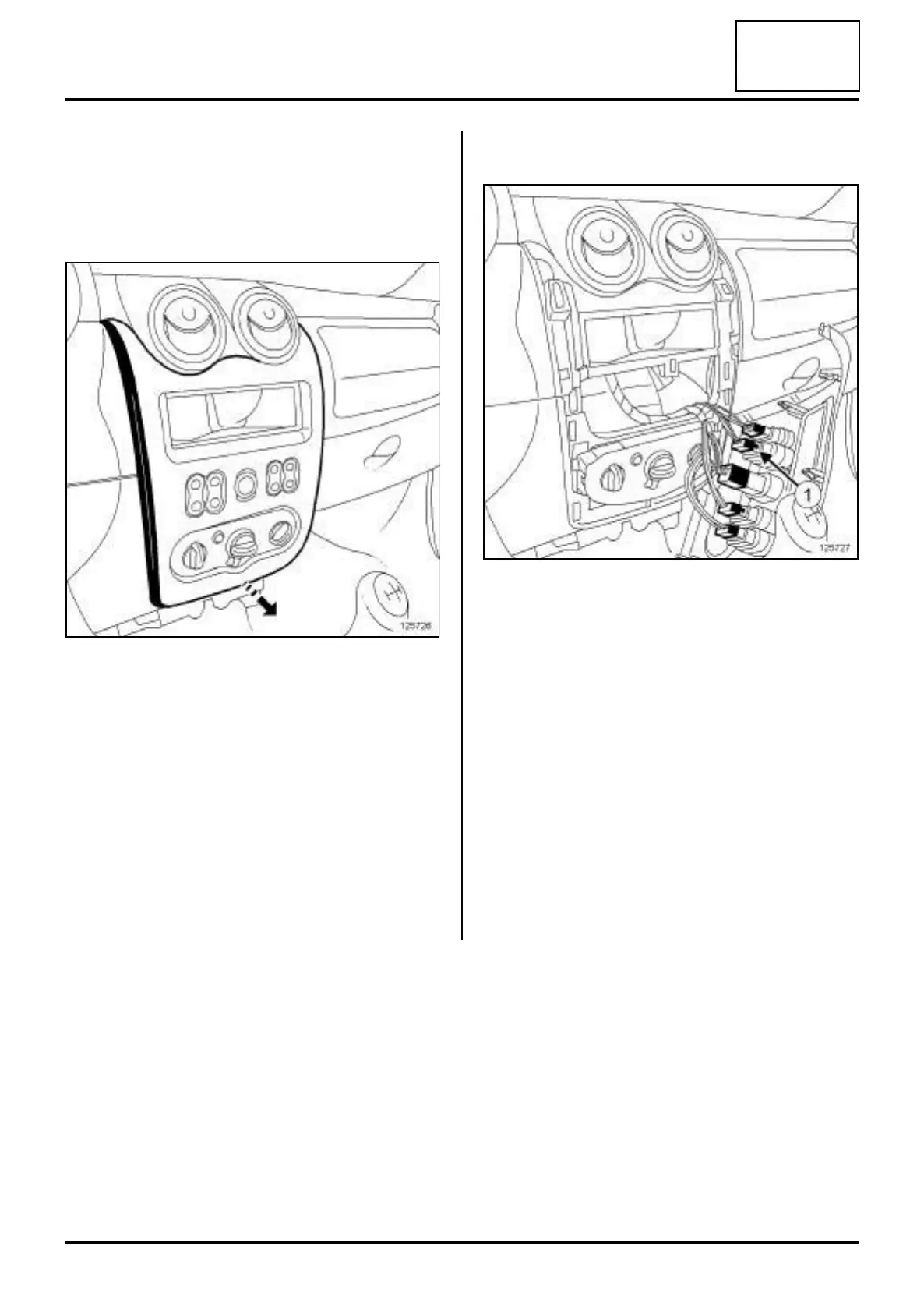

a Unclip the central trim assembly, starting at the bot-
tom.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (1) from the central door
locking switch.
a Unclip the central locking switch by moving clips.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Clip the door locking switch.
a Connect the central door locking switch connector.
II - FINAL OPERATION
a Clip on the central trim assembly, starting at the top.
a Refit the radio (see 86A, Radio, Radio: Removal -
Refitting, page 86A-3) .
125726
125727
