84A-10
CONTROL - SIGNALS
Remote headlight beam adjustment control: Removal - Refitting
84A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED

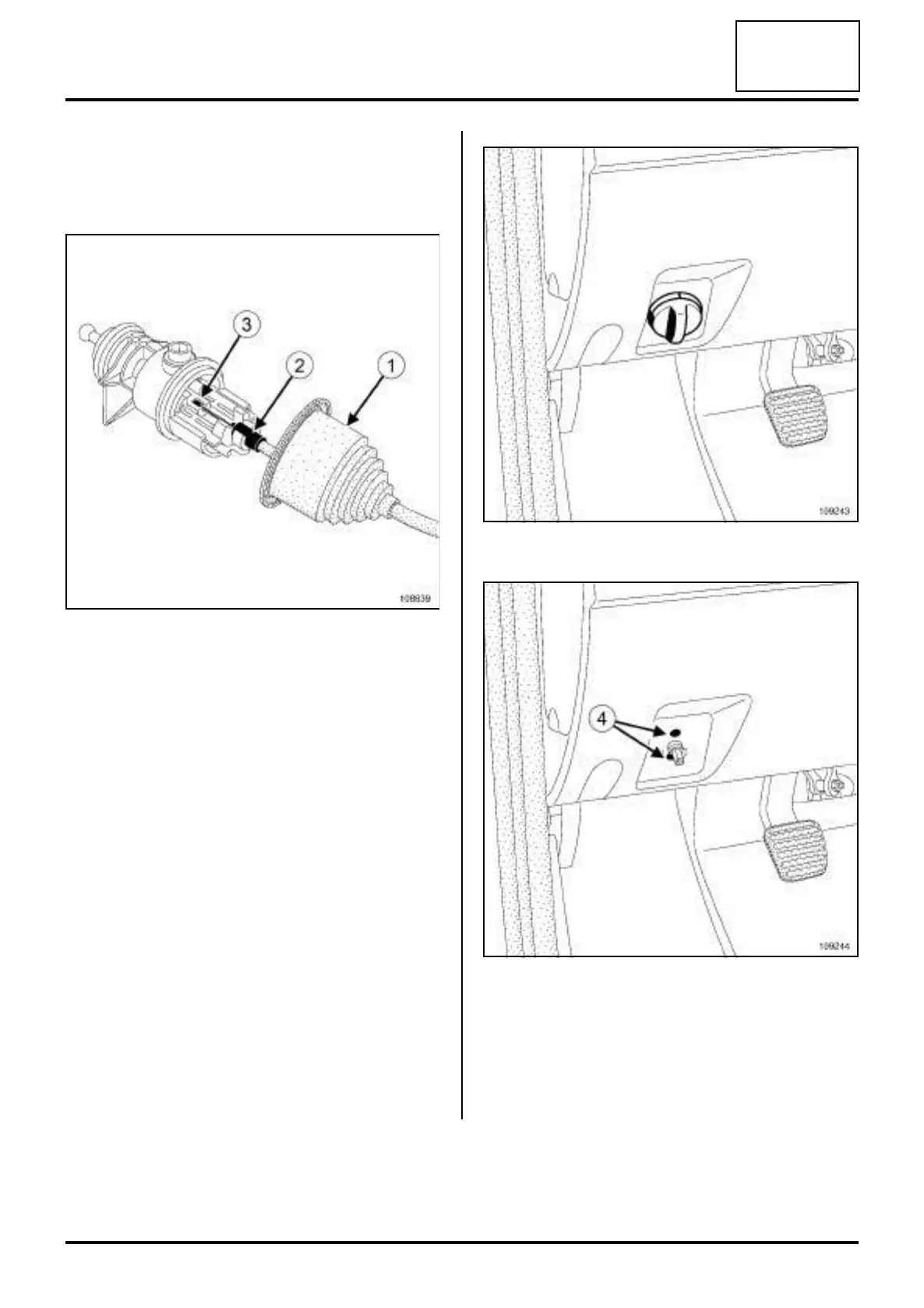

a Retract the sealing sleeve (1) from the left-hand ac-
tuator.
a Unclip the end piece of the left-hand actuator sheath
(2) .
a Remove:
-the cable (3) from the left-hand actuator,
-the sealing sleeve (1) .
a Retract the sealing sleeve (1) from the right-hand
actuator.
a Unclip the end piece of the right-hand actuator
sheath (2) .
a Remove:
-the cable (3) from the right-hand actuator,
-the sealing sleeve (1) .
a Unpick the « cables - sheaths » assembly. Note
down the position of fitting.
a Unclip the adjustment knob.
a Remove the bolts (4) .
a Remove:
- the adjustment control through the dashboard,
-the « control - cables - sheaths » assembly from
the vehicle interior. Note down the position of fit-
ting.
108639
109243
109244
