Windscreen washer reservoir: Removal - Refitting
LEFT-HAND DRIVE
85A

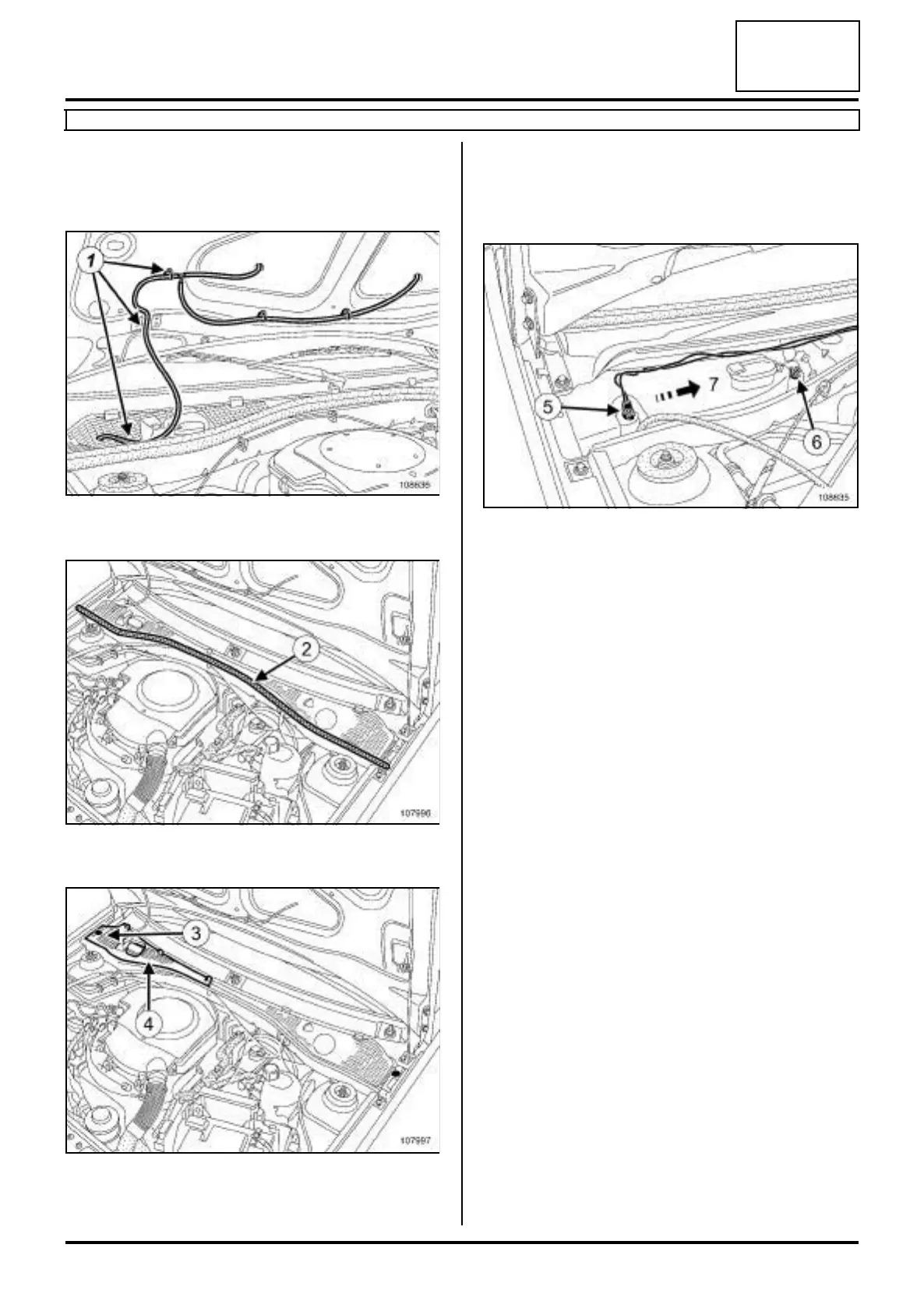

REMOVAL
I - REMOVAL PREPARATION OPERATION
a Detach the pipe at (1) .
a Remove the engine compartment seal (2) .
a Remove:
-the side bolt (3) from the scuttle half-grille,
- the right-hand scuttle half-grille (4) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (5) from the windscreen
washer pump.
a Remove:
- the bolt (6) from the windscreen washer bottle,
-the windscreen washer bottle by pulling it in the di-
rection of the arrow (7) .
a Drain the windscreen washer bottle.
a Disconnect the windscreen washer pump from the
bottle.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Fit the windscreen washer pump onto the bottle.
a Refit:
- the windscreen washer bottle,
- the windscreen washer bottle bolt.
II - FINAL OPERATION.
a Connect the windscreen washer pump connector.
a refit:
- the right-hand scuttle half-grille,
- the side bolt to the scuttle half-grille,
- the engine compartment seal.
a Clip the pipe at (1) .
a Fill-up the windscreen washer bottle.
