88A-11
WIRING HARNESS
Engine wiring: Removal - Refitting
K4M
88A

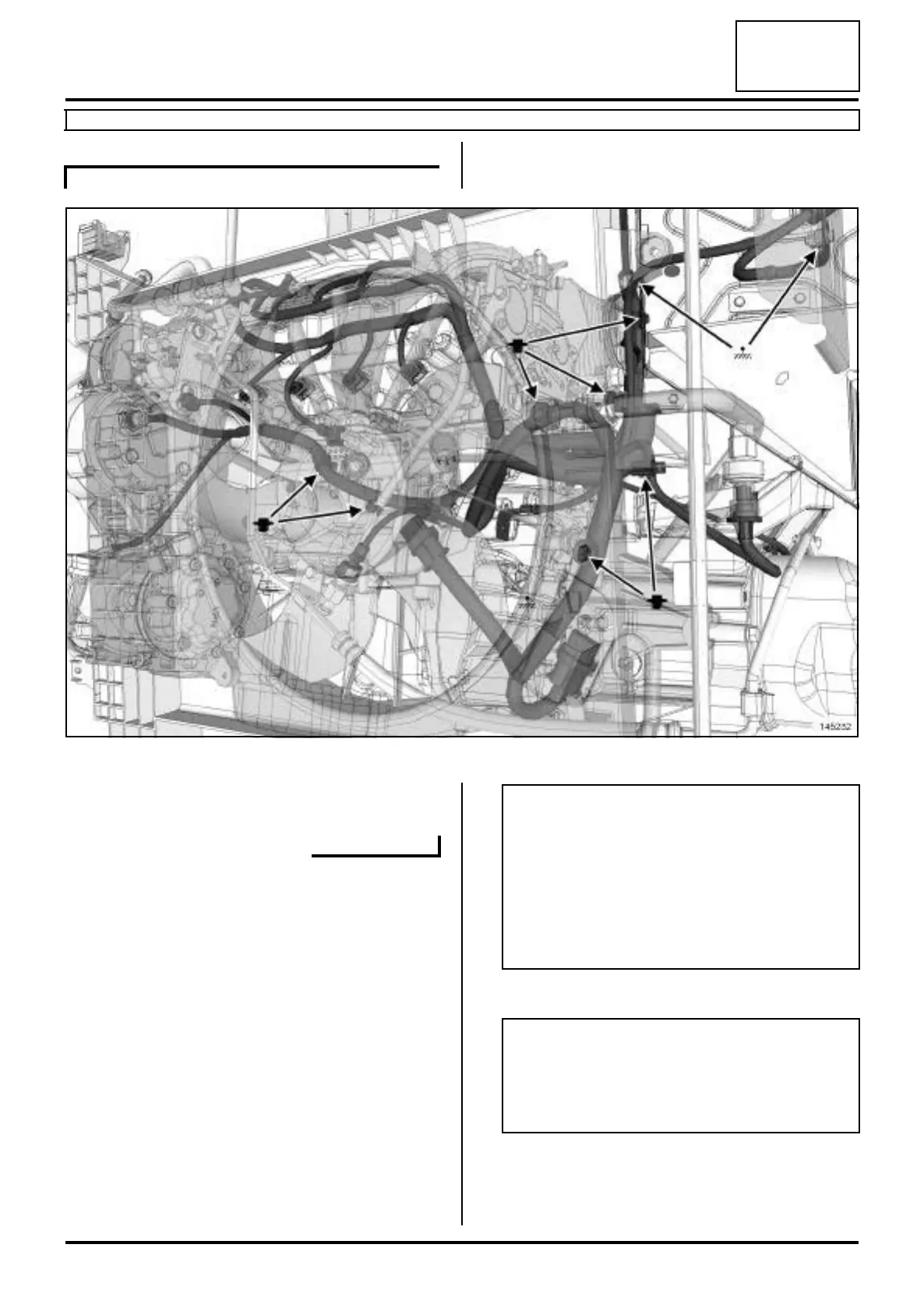

a Disconnect all the connectors.
a Unclip the engine wiring where indicated.
a
a Remove the earth terminals.
a Remove the engine wiring.
AIR CONDITIONING
145232
Note:
Before removing the earth terminal, mark its
position using a indelible pencil by drawing a
line on the earth terminal and on the gearbox
casing.
When reassembling, improper positioning of the
earth terminal on the gearbox casing could result
in damage to the earth terminal or earth wiring.
WARNING
To prevent any damage during the removal oper-
ation, check that the wiring is free from its mount-
ings (retaining clip, plastic clip, adhesive tape,
connector, etc.).
