11
RFL Electronics Inc. June 10, 2002
RFL 9300DCDR
System Configuration
48 to 125 VDC nominal (±20%), with modem, X.21, RS-449, V.35,
G.703 (co-directional) and direct fiber optic communications.
1988 IEC 255-22-1
1 MHz burst disturbance tests - Class III. Note that this speci-
fication requires insulation tests including impulse withstand
tests as specified in IEC 255-5.
1989-10 IEC 255-22-2
Electrostatic discharge test - Class III.
1989-10 IEC 255-22-3
Radiated electromagnetic field disturbance tests -
Class III and C37.90.2.
1992-03 IEC 255-22-4
Fast Transient disturbance test - Class III

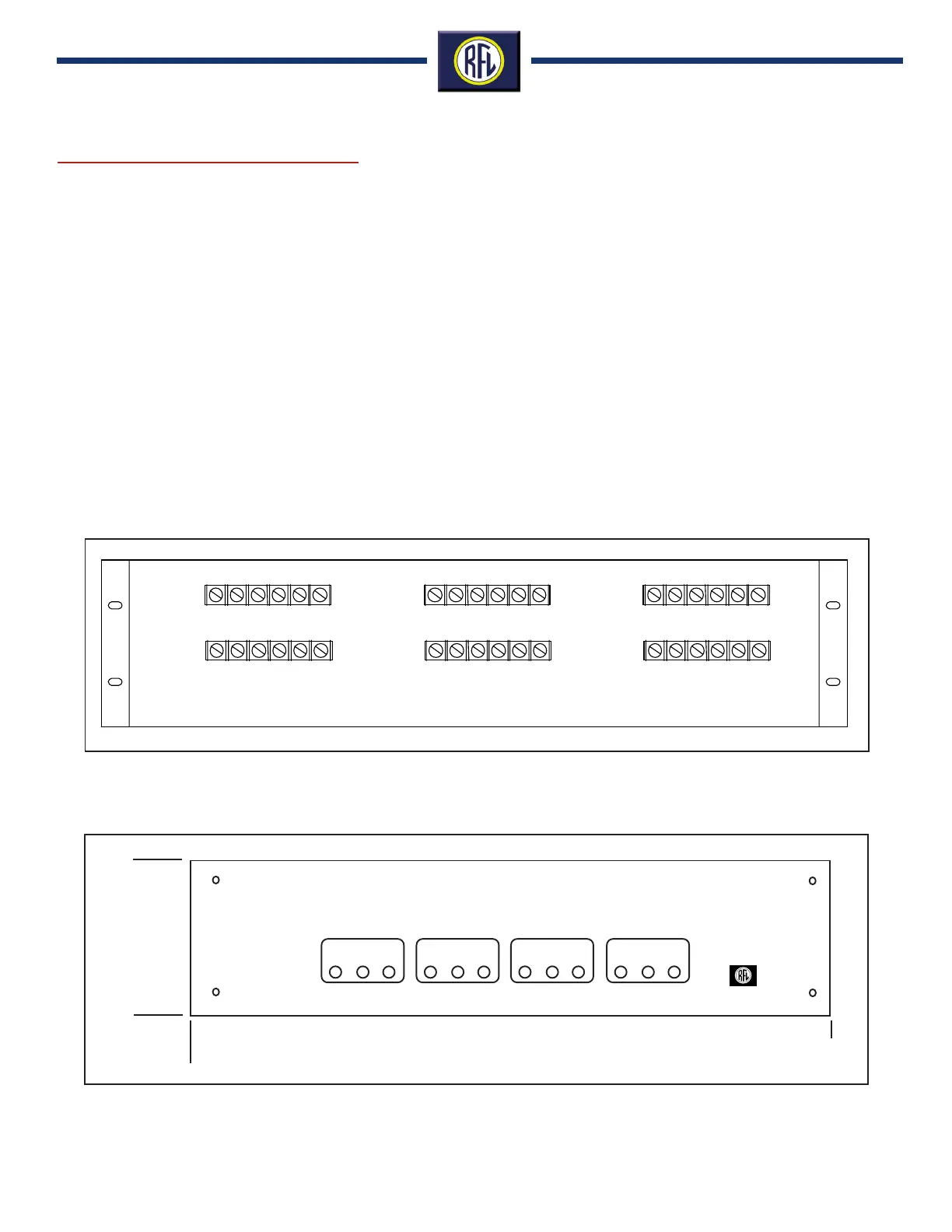

Figure 17. Rear View of RFL 9300 Single Pole Chassis Extension.
Aux-2 Aux-3 Aux-4
TB1A
Trip-1 Trip-2 Aux1
TB1B
Aux-2 Aux-3 Aux-4
TB2A
Trip-1 Trip-2 A ux1
TB2B
Aux-2 Aux-3 Aux-4
TB3A
Trip-1 Trip-2 Aux1
TB3B
Phase A Phase B Phase C
0
RFL 9300
Single Pole Option
++
STATUS
THREE
POLE
SINGLE
POLE
TRIP
DISABLE
+++
PHASE A
TRIP TC1 TC2
+++
PHASE B
TRIP TC1 TC2
+++
PHASE C
TRIP TC1 TC2
RFL Electronics Inc.
0
17.265’’
3.38’’
+
International
Compliance Standards
IEC 255-5 (1977)
Insulation Test (1500 VRMS, 5KV impulse)
IEC 801-5
Lighting Strike (CCS currently meets a similar test)
IEC 255-21-1
Vibration
IEC 255-21-2
Shock
IEC 255-21-3 and C.37.98-1987
Seismic
EN60950
CE Approval
Figure 16. Front View of RFL 9300 Single Pole Chassis Extension.
