Enter a Disconnect 1 label on the HMI (Figure 5.21). The number of characters is
limited to a maximum string width of 18 pixels (approximately four characters).
D01CTLN
Enter a Disconnect 1 label on the control screen. Enter a descriptive name (there
are 15 characters available) that clearly identifies the disconnect.
89AM01, 89BM01
These SELOGIC control equations report the state of Disconnect 1 auxiliary con-
tacts. Both equations must be programmed for the Disconnect Switch Status and
Alarm Logic to function correctly.

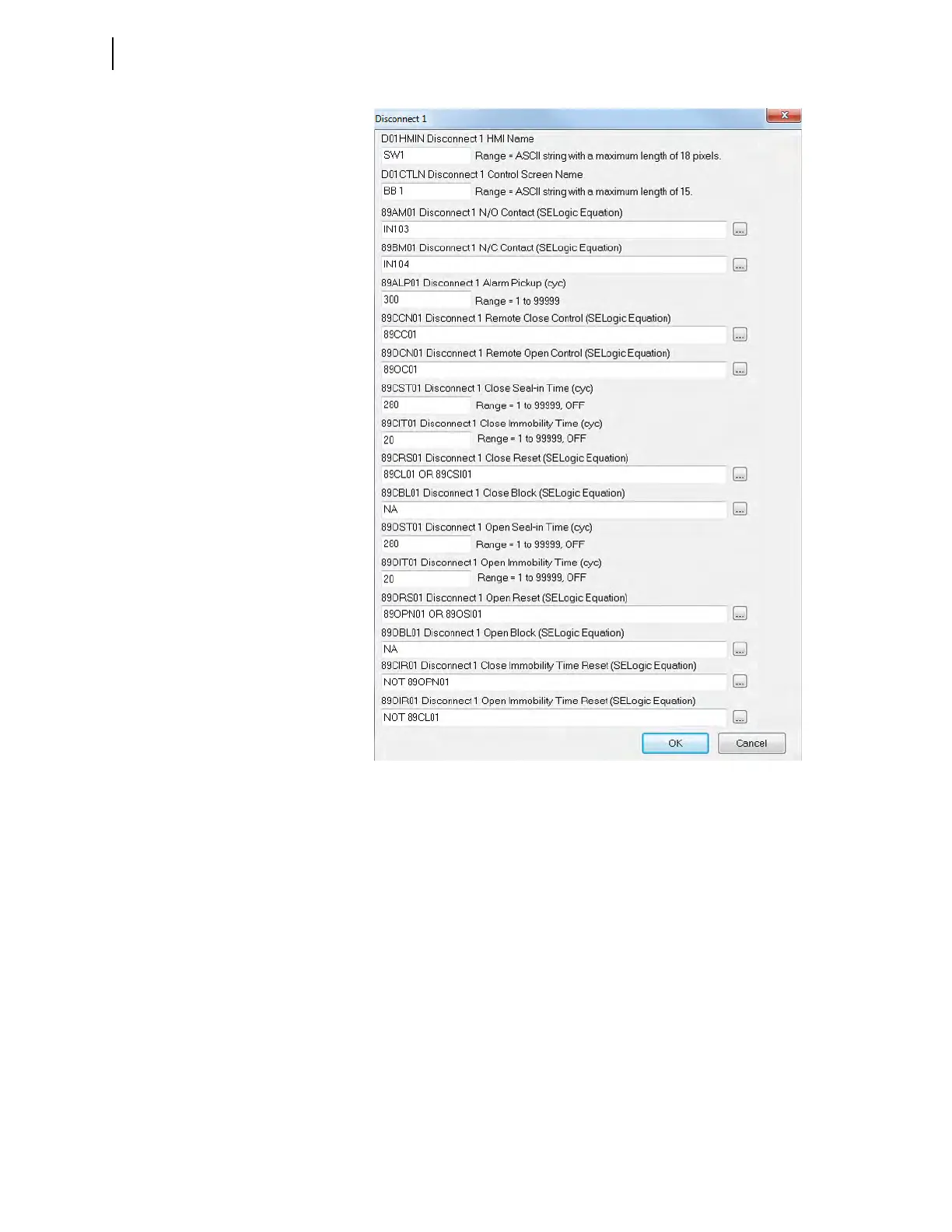

Figure 5.21 Disconnect Assignment Dialog Box, SW1
