Graphic view
The graphic view shows the contour of the workpiece as a dynamic graphic with broken lines.
The program block selected in the work plan is highlighted in color in the graphic view.

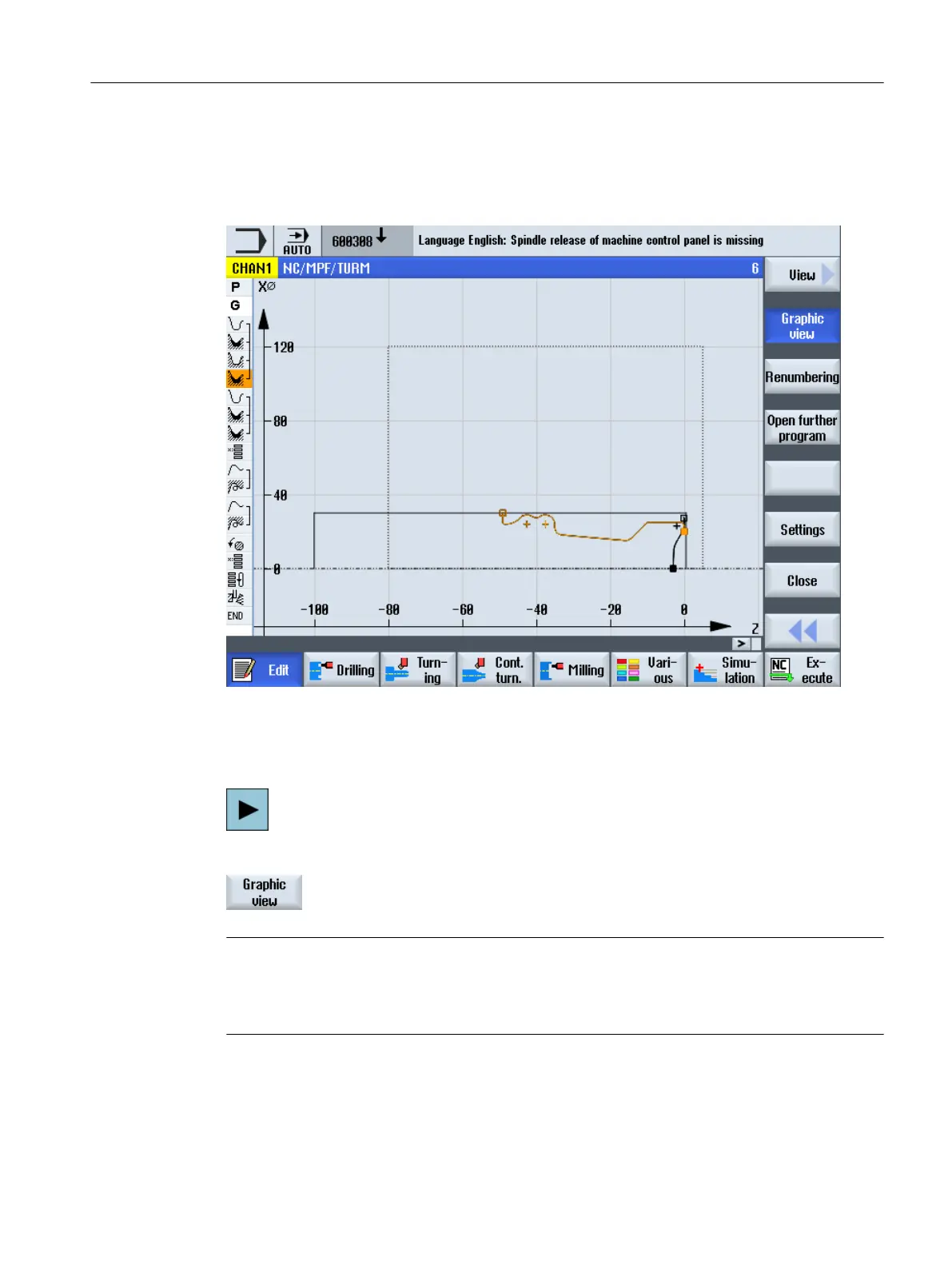

Figure 9-2 Graphic view of a ShopTurn program
Parameter screen with help display and graphic view
1. Press the <Cursor right> key to open a selected program block or
cycle in the work plan.
The associated parameter screen with help display is then dis‐
played.
2. Press the "Graphic view" softkey.
The graphic view of the selected program block is displayed.
Note
Switching between the help screen and the graphic view
The key combination <CTRL> + <G> is also available for the switchover between the help
screen and the graphic view.
Creating a ShopTurn program
9.2 Program views
Turning
Operating Manual, 06/2019, A5E44903486B AB 287
