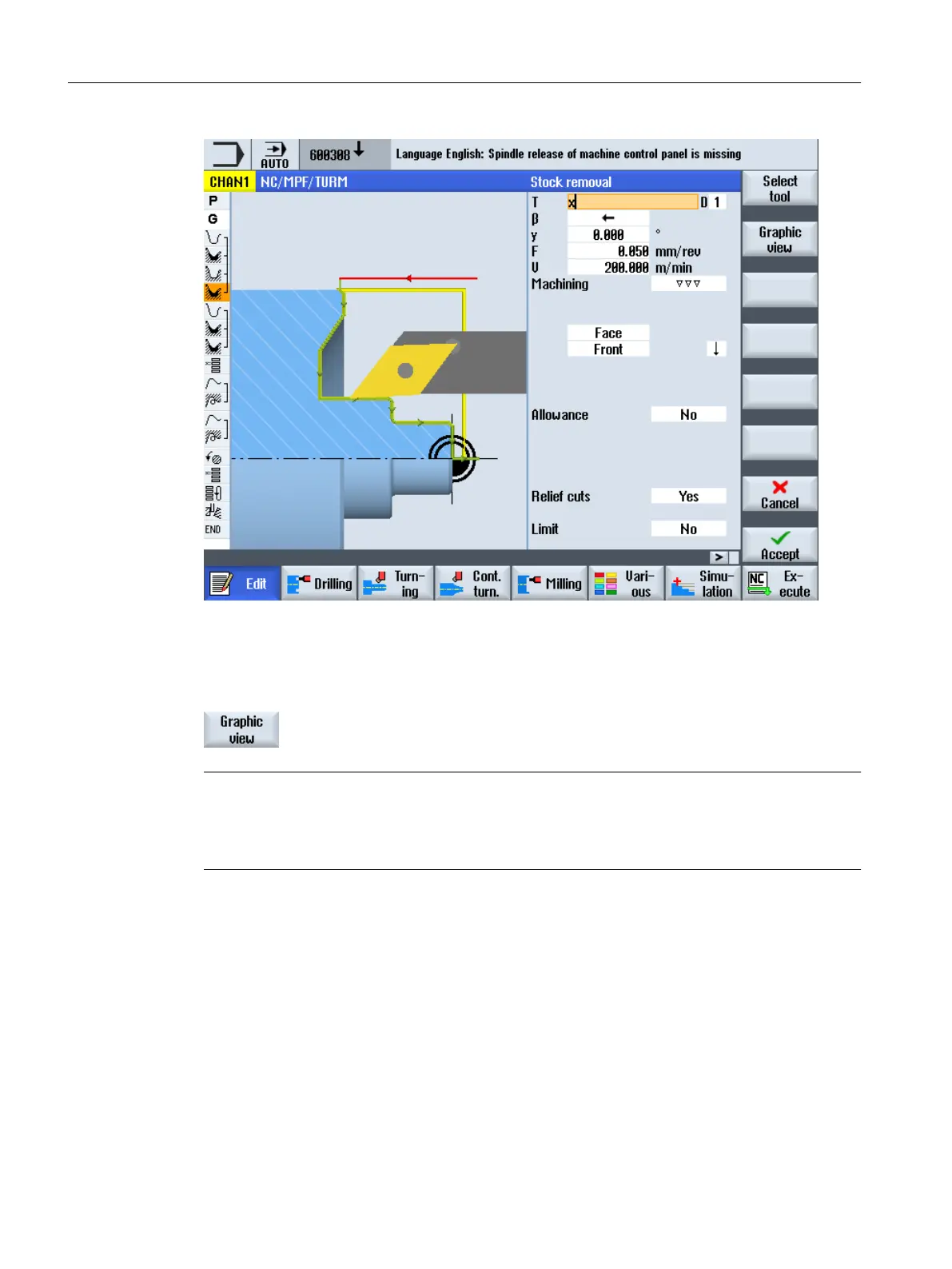

Figure 9-3 Parameter screen with dynamic help display

The animated help displays are always displayed with the correct orientation to the selected

coordinate system. The parameters are dynamically displayed in the graphic. The selected

parameter is displayed highlighted in the graphic.

Press the "Graphic view" softkey to toggle between the help display and

the graphic view in the screen.

Note

Switching between the help screen and the graphic view

The key combination <CTRL> + <G> is also available for the switchover between the help

screen and the graphic view.
