Siemens SINUMERIK 840D sl Turning - Turning; Display of the B axis

Turning

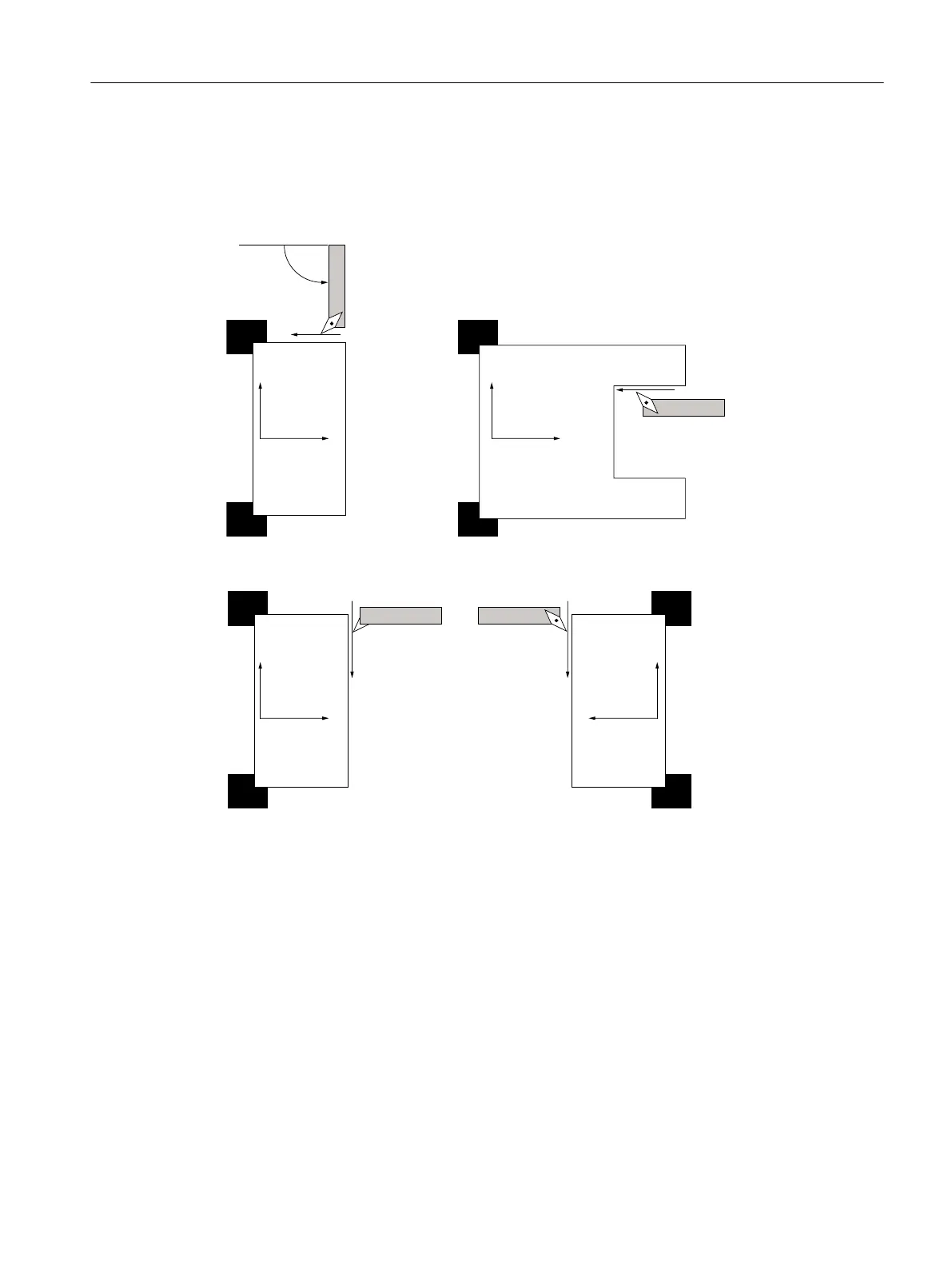

Alignment angles allow you to perform a wide range of different turning operations (for
example, internal and external longitudinal machining, surface machining with a main spindle
and counterspindle, residual material) without changing the tool.
/RQJLWXGLQDOPDFKLQLQJH[WHUQDO
)DFHFXWWLQJPDLQVSLQGOH)DFHFXWWLQJFRXQWHUVSLQGOH
/RQJLWXGLQDOPDFKLQLQJLQWHUQDO
;
=
;
=
;
=
;
=
˟ |
ǩ |
˟ |
ǩ |
˟ |
ǩ |
˟ |
ǩ |
Display of the B axis
The B axis is displayed in the following windows:
● Axis position display in actual value window
● In the “Positioning” window to position axes in manual operation
● You can display the B axis in the zero offset lists using the "Zero offset" softkey and you can
also define the offset.
Working with a B axis (only 840D sl)
17.1 Lathes with B axis
Turning
