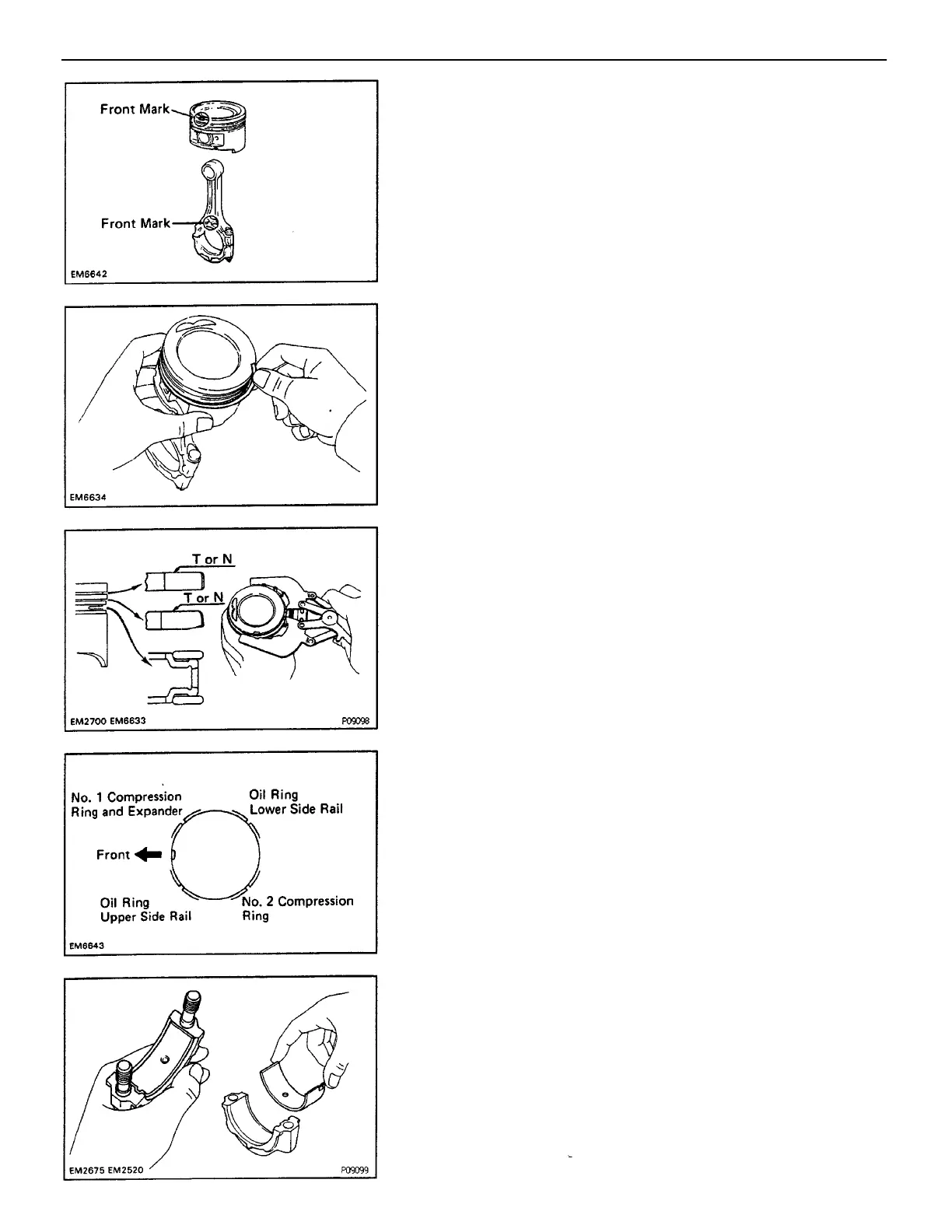

3. INSTALL BEARINGS
(a) Install the bearing in the connecting rod and rod cap.
(b) Lubricate the face of the bearings with engine oil.
NOTICE: Install the bearings with the oil hole in the
connecting rod.
(c) Align the notch on the piston with the mark on the rod
and push the piston pin in with your thumb.
(d) Install a new snap ring on the other side of the pin.
(c) Position the piston rings so that the ring end gaps are
as shown.
NOTICE: Do not align the end gaps.
(b) Using a ring expander, install the two compression
rings with the code marks facing upward.
2. PLACE RINGS ON PISTON
(a) Install the oil ring expander and two side rails by hand.
–ENGINE ENGINE MECHANICAL
EG1–67
