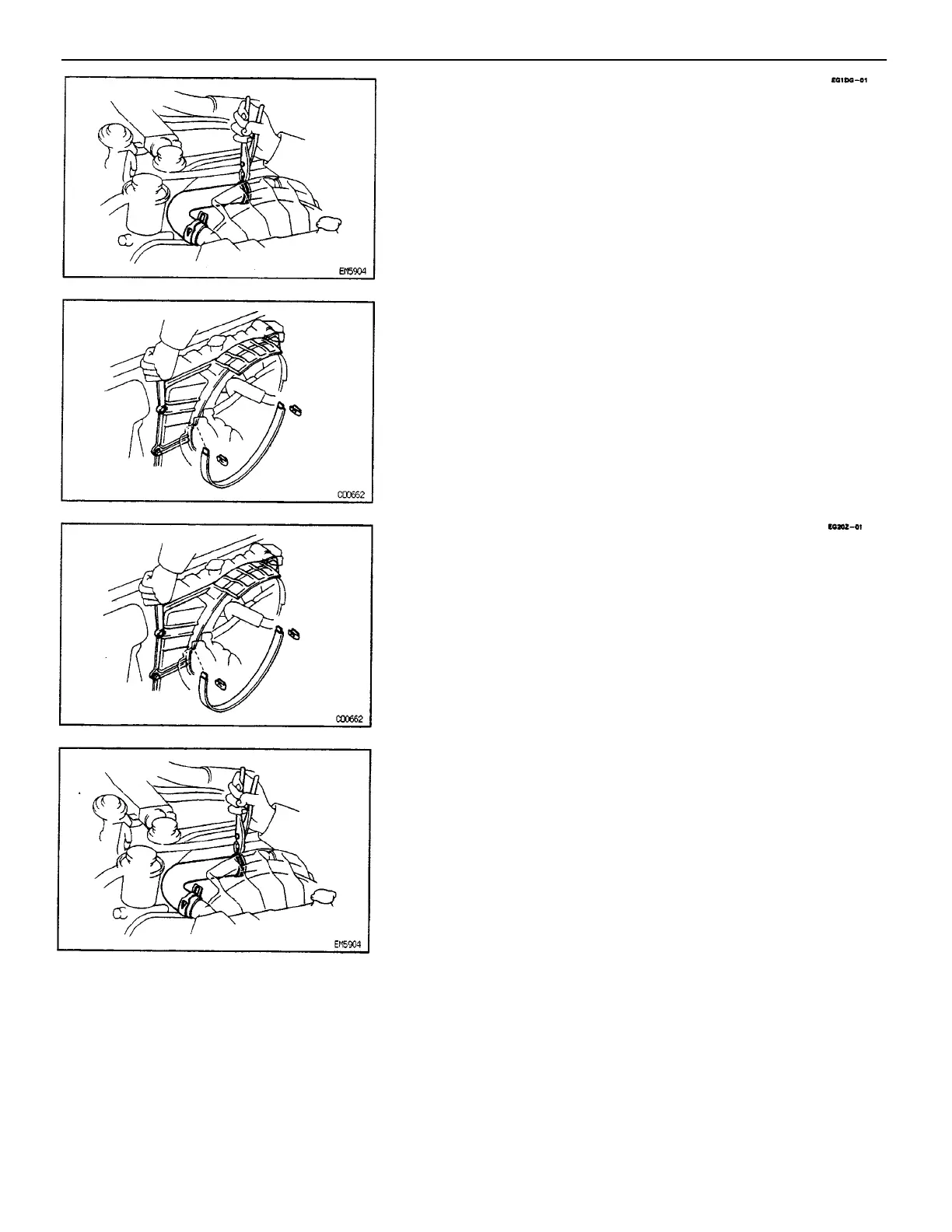

(c) Remove the No.2 fan shroud.
(d) Remove the No.1 fan shroud.
(e) Disconnect the oil cooler hoses.
HINT:
• Be careful as some oil will leak out. Catch it in a
suitable container.
• Plug the hose to prevent oil from escaping.
(f) Remove the four bolts and radiator.
RADIATOR INSTALLATION
1. INSTALL RADIATOR
(a) Install the radiator with the four bolts.
(b) Connect the oil cooler hoses.
(c) Install the No.1 fan shroud
(d) Install the No.2 fan shroud
RADIATOR REMOVAL
1. DRAIN ENGINE COOLANT
2. REMOVE ENGINE UNDER COVER
3. REMOVE RADIATOR
(a) Disconnect the reservoir hose.
(b) Remove the radiator hoses.
2. INSTALL ENGINE UNDER COVER
3. FILL WITH ENGINE COOLANT
4. START ENGINE AND CHECK FOR LEAKS
(e) Install the radiator hoses.
(d) Connect the reservoir hoses.
–ENGINE COOLING SYSTEM
EG2–270
