Toyota 22R-E - Tighten Bolts and Nuts on Chassis and Body

• Leaf spring U – bolt mounting nuts
Torque:
2WD 0.5 ton 147 N–m (1,500 kgf–cm, 108 ft–Ibf)
Others 123 N–m (1,250 kgf–cm, 90 ft–Ibf)
Under Severe Conditions:
In addition to the above maintenance items, check for
loose or missing bolts and nuts on the following.
• Steering system
• Drive train

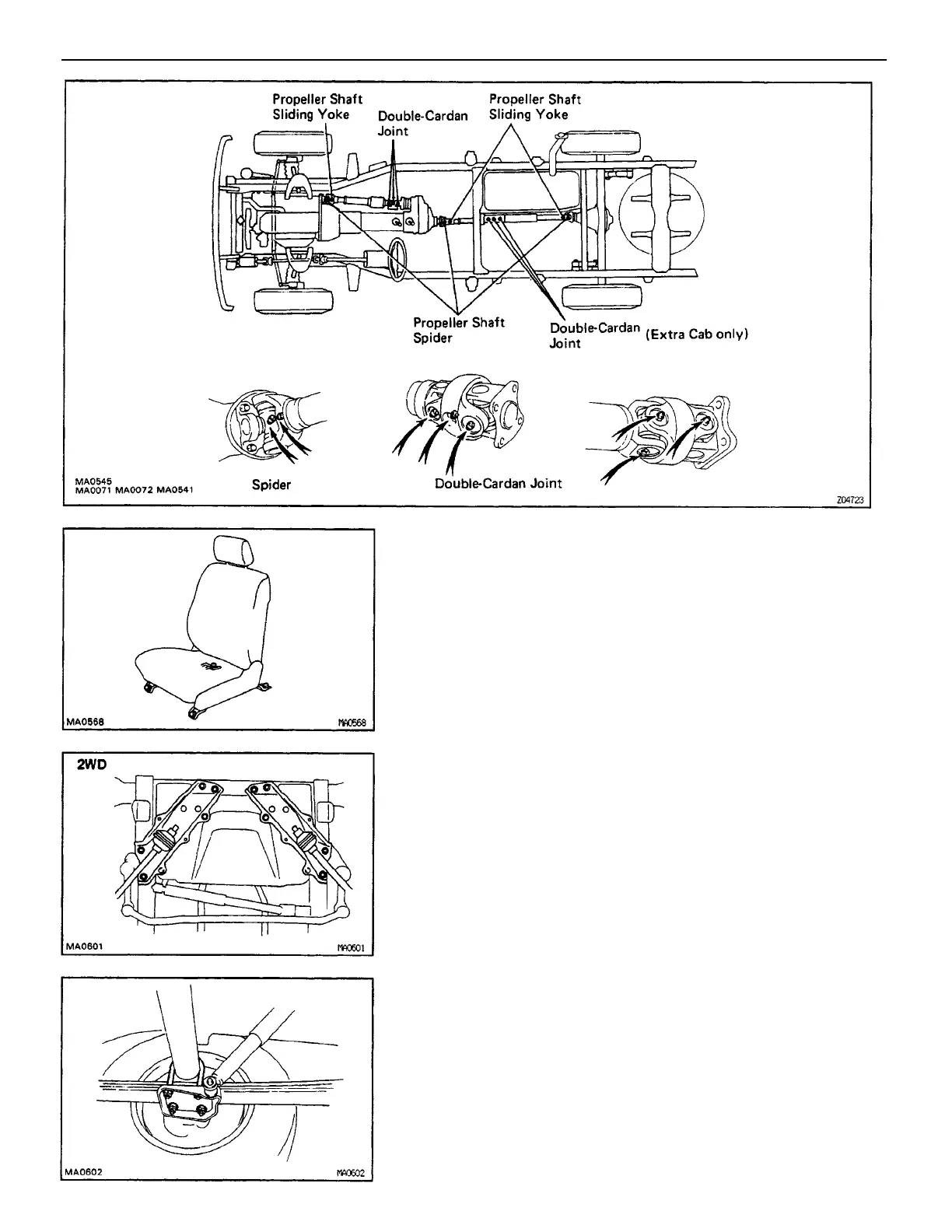

29. TIGHTEN BOLTS AND NUTS ON CHASSIS AND
BODY
Tighten the following parts:
• Seat mounting bolts
Torque: 37 N–m (375 kgf–cm, 27 ft–lbf)
• Strut bar bracket–to –frame mounting bolts (2
WD)
Torque: 52 N–m (530 kgf–cm, 38 ft–Ibf)
–MAINTENANCE MAINTENANCE OPERATIONS
MA–22
