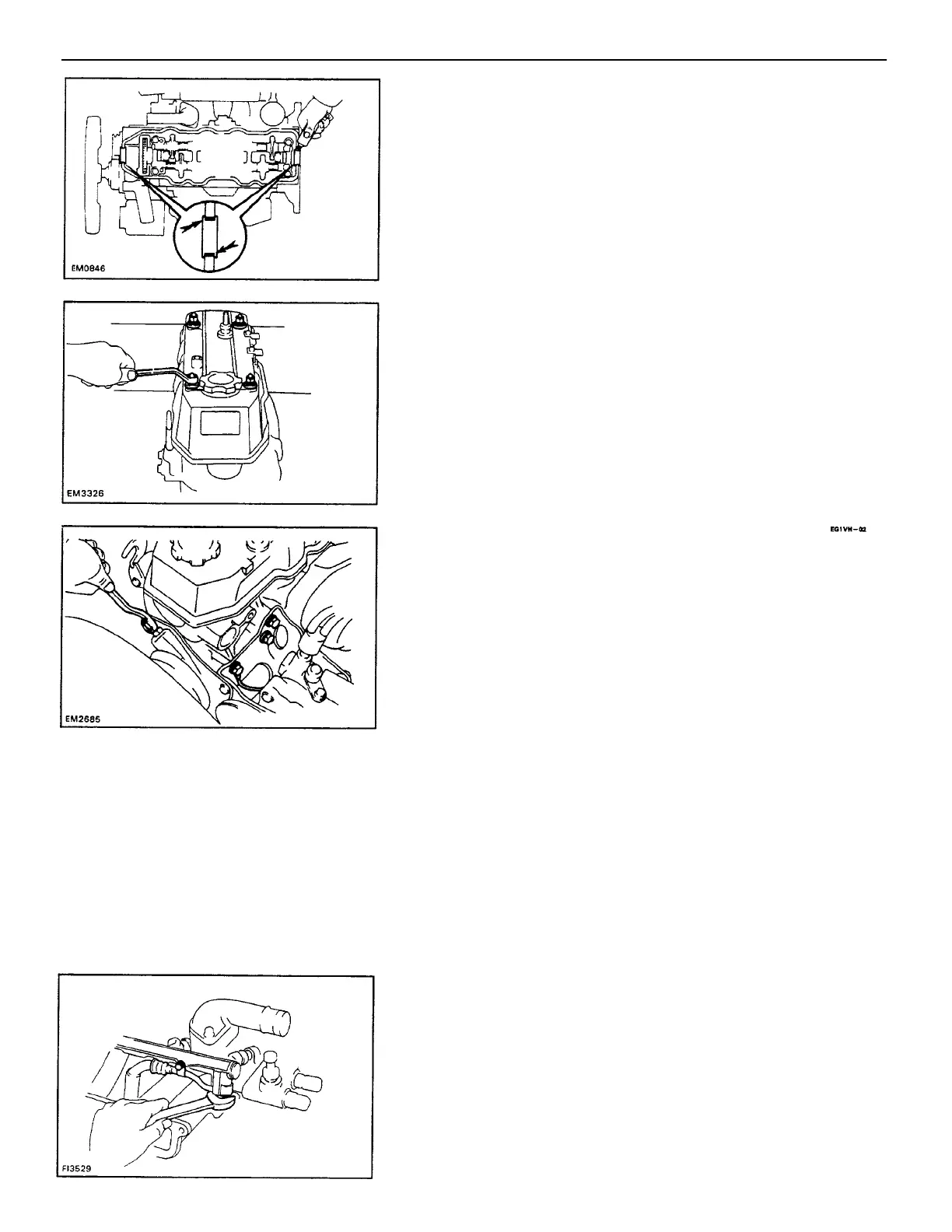

POST INSTALLATION
1. (w/PS)
CONNECT PS BRACKET TO CYLINDER HEAD
Install the four bolts and bond strap. Torque the bolts.
Torque: 44N–m (450kgf–cm, 33ft–lbf)
2. (w/PS)
INSTALL DRIVE BELT AND ADJUST BELT TEN–
SION
(See step 2 on page MA–6)
3. CONNECT BY–PASS HOSE TO INTAKE MANIFOLD
4. CONNECT FUEL HOSE TO DELIVERY PIPE
Install new gaskets and the fuel hose with union bolt.
Torque: 44N–m (450kgf–cm, 33ft–lbf)
5. CONNECT FOLLOWING WIRES:
(a) Engine coolant temp. sensor wire
(b) Cold start injector time switch wire
(c) VSV wires
(d) Igniter wire
(b) Install the gasket to the cylinder head.
(c) Place the head cover on the cylinder head and install
the four seals and nuts.
Torque: 5.9N–m (60kgf–cm, 52in.–Ibf)
8. INSTALL HEAD COVER
(a) Apply seal packing to the four locations shown.
Seal packing: Part No. 08826–00080 or equivalent
–ENGINE ENGINE MECHANICAL
EG1–36
To Next Page
