(b) Disconnect the high–tension cord at the grommet.
DO NOT pull on the cord.
NOTICE:
• Pulling on or bending the cords may damage the
conductor inside.
• Do not wipe any of the oil from the grommet after
the high–tension cord is disconnected.
2. DISCONNECT DISTRIBUTOR CONNECTOR
DISTRIBUTOR REMOVAL
1. DISCONNECT HIGH–TENSION CORDS FROM
DISTRIBUTOR CAP
(a) Using a screwdriver, lift up the lock claw and dis–
connect the holder from the distributor cap.

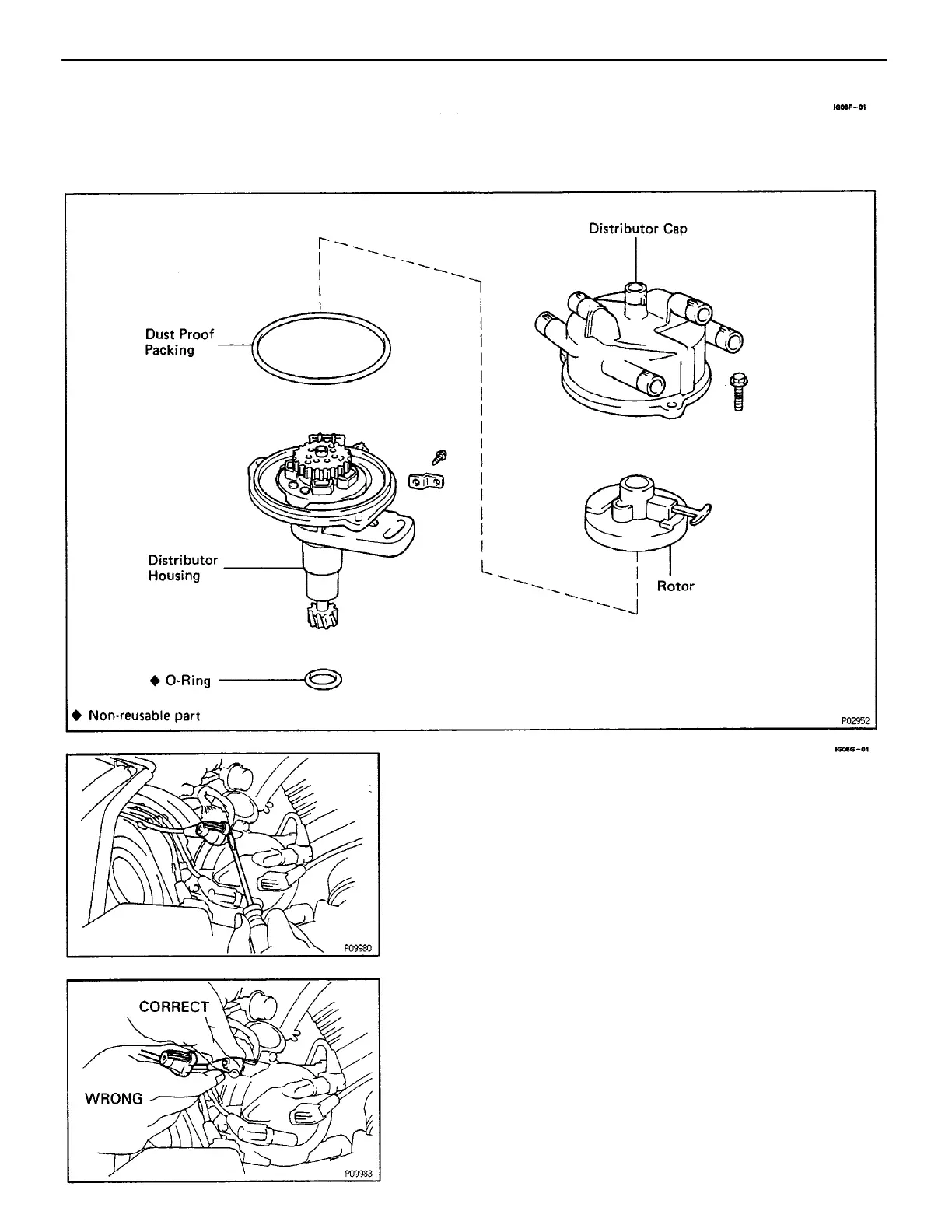

DISTRIBUTOR
COMPONENTS
–IGNITION SYSTEM (3VZ– E)
IG–24
