Toyota 22R-E - Connect Fuel Return Hose; Install Chamber with Throttle Body; Connect Following Wires; Connect Following Parts

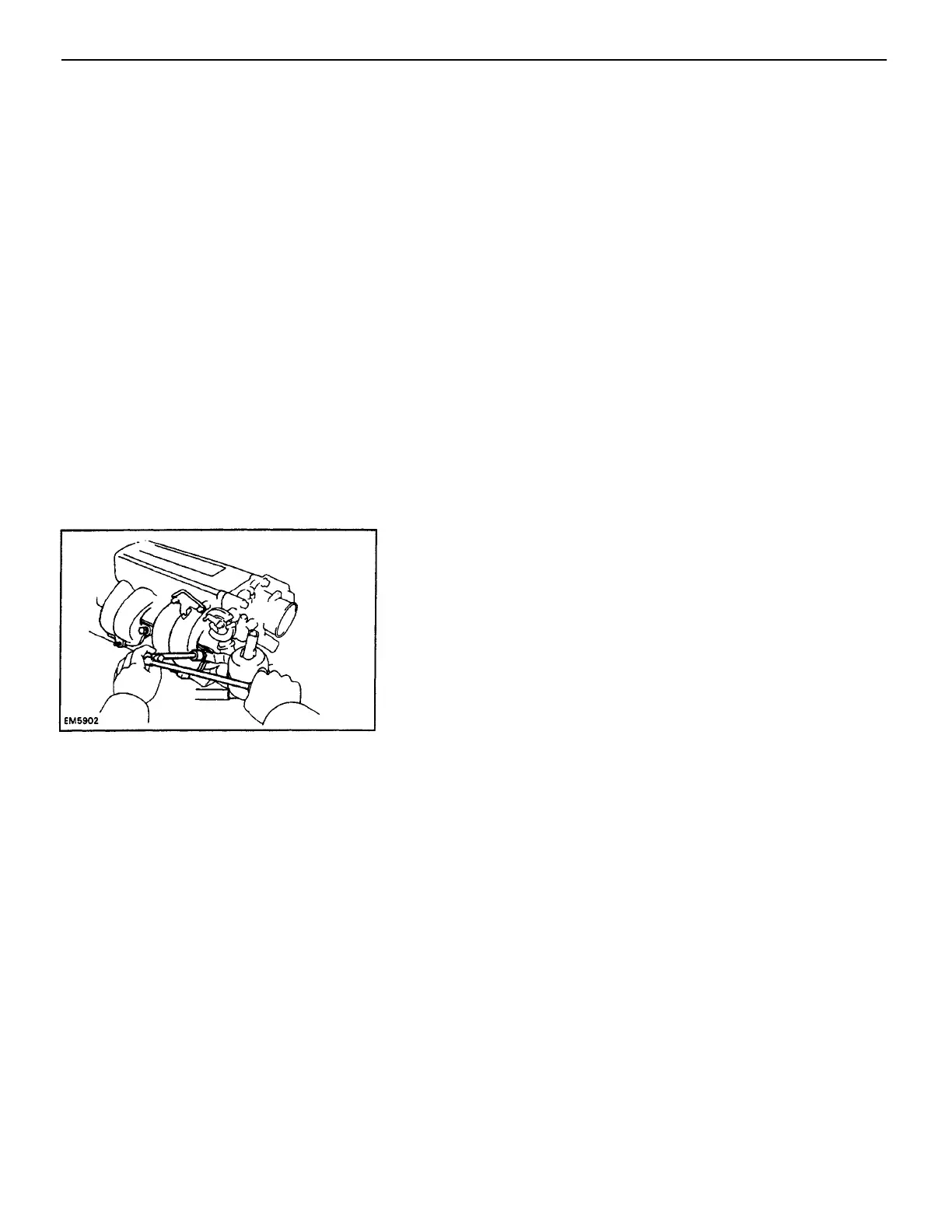

7. INSTALL CHAMBER WITH THROTTLE BODY
(a) Position new gaskets on the intake manifold and No. 1
EGR pipe.
(b)– Install the chamber, throttle body, fuel hose clamp,
resonator and bond strap with the four bolts and two
nuts.
(c) Connect the chamber and stay with a bolt.
(d) Install the bolts holding the EGR valve to the chamber.
(e) Install the new gaskets and cold start injector pipe.
8. CONNECT FOLLOWING WIRES:
(a) (California only)
EGR gas temp. sensor wire
(b) Throttle position wire
(c) Cold start injector wire
9. INSTALL EGR VACUUM MODULATOR
10. CONNECT FOLLOWING PARTS:
(a) (w/ Oil cooler)
Connect the No. 1 oil cooler hose to the intake man–
ifold.
(w/o Oil cooler)
Connect the No. 1 water by–pass hose to the intake
manifold.
(b) No. 2 and No. 3 water by–pass hoses to the throttle
body
(c) Vacuum hoses to throttle body
(d) Pressure regulator hose
(e) Fuel pressure up hose
(f) PAIR valve hose
(g) EGR valve hose
(e) (A/T)
OD temp. switch wire
(f) Engine coolant temp. sender gauge wire
(g) Injector wires
(h) (with A/C)
Compressor wires
(i) Transmission wires
(j) Starter wire (terminal 50)
(k) Oil pressure sender gauge wire
(l) Knock sensor wire
6. CONNECT FUEL RETURN HOSE
