Brushes

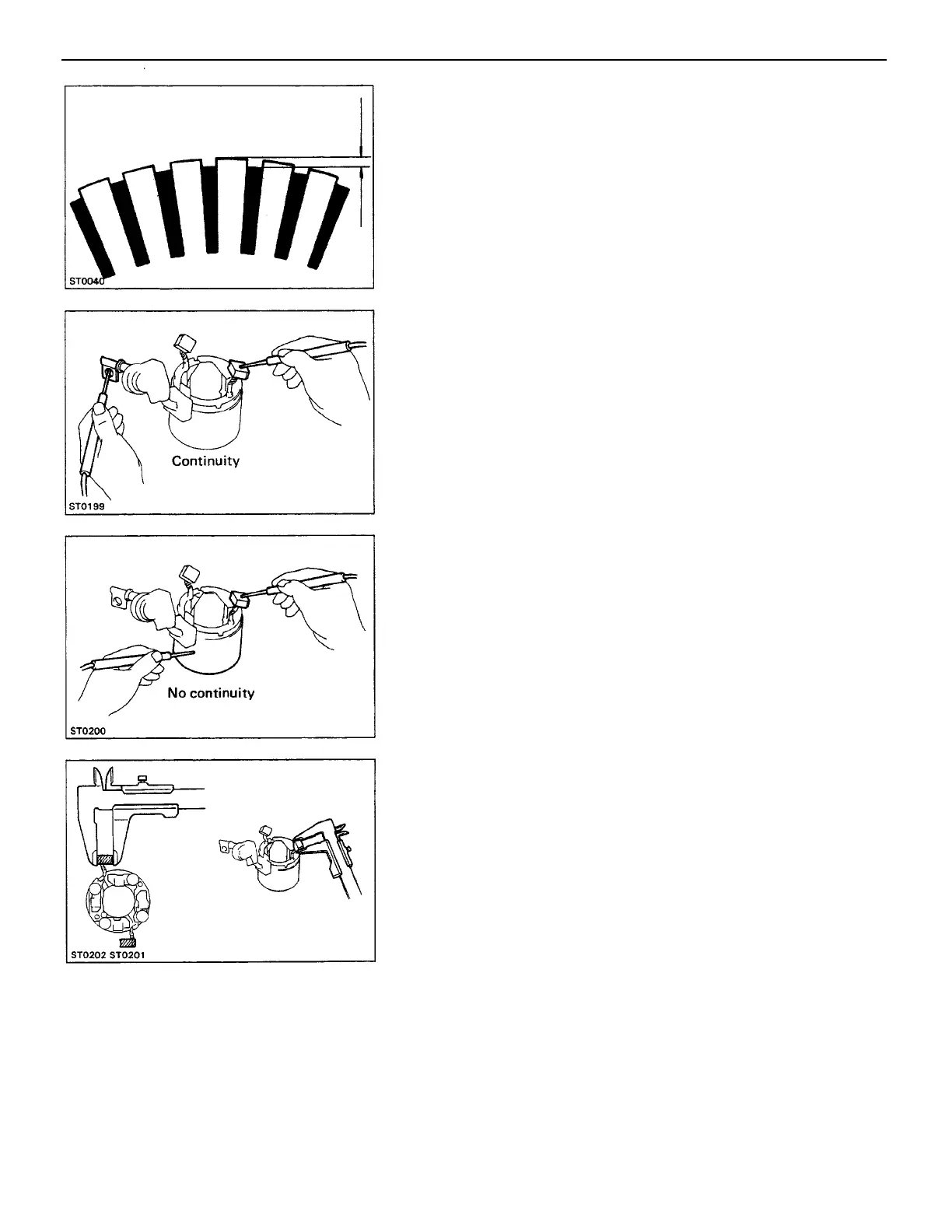

INSPECT BRUSH LENGTH
Using vernier calipers, measure the brush length.
Standard length: 1.0 kW 13.5 mm (0.531 in.)
1.4 kW 15.5 mm (0.610 in.)
1.6 kW 15.5 mm (0.610 in.)
Minimum length: 1.0 kW 8.5 mm (0.335 in.)
1.4 kW 10.0 mm (0.394 in.)
1.6 kW 10.0 mm (0.394 in.)
If the length is less than minimum, replace the brush holder
and field frame.
4. INSPECT UNDERCUT DEPTH OF SEGMENT
Check that the undercut depth is clean and free of foreign
material. Smooth out the edge.
Standard undercut depth: 0.6 mm (0.024 in.)
Minimum undercut depth: 0.2 mm (0.008 in.)
If the undercut depth is less than minimum, correct it with
a hacksaw blade.
Field Frame (Field Coil)
1. INSPECT FIELD COIL FOR OPEN CIRCUIT
Using an ohmmeter, check that there is continuity between
the lead wire and field coil brush lead.
If there is no continuity, replace the field frame.
2. INSPECT THAT FIELD COIL IS NOT GROUNDED
Using an ohmmeter, check that there is no continuity be–
tween the field coil end and field frame.
If there is continuity, repair or replace the field frame.
–STARTING SYSTEM Starter
ST–6
