COLD START INJECTOR TIME SWITCH
INSPECTION

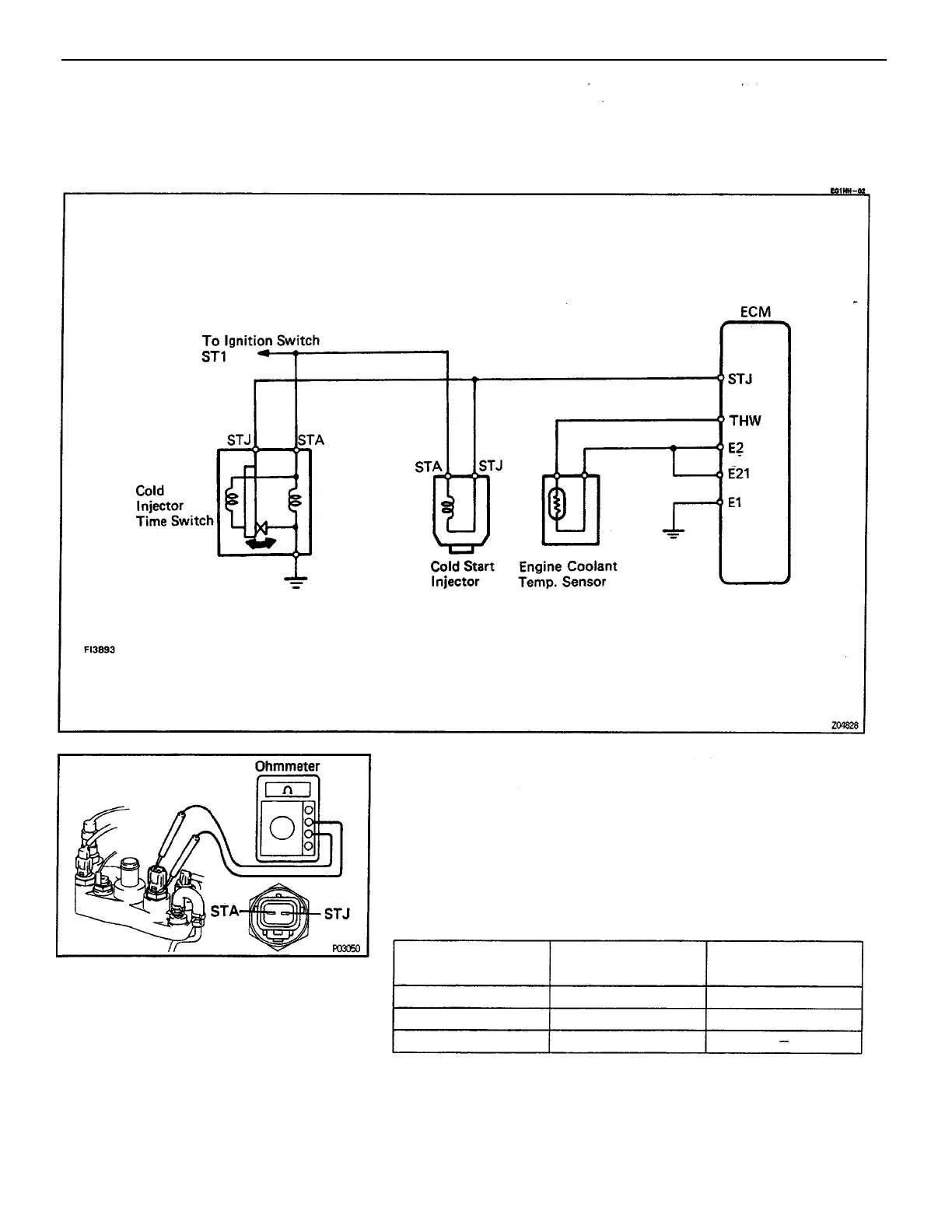

MEASURE RESISTANCE OF COLD START INJEC–
TOR TIME SWITCH
(a) Disconnect the connector.
(b) Using an ohmmeter, measure the resistance between
terminals.
If the resistance is not as specified, replace the
switch.
(c) Reconnect the connector.
COLD START INJECTOR TIME
SWITCH
Engine coolant
temperature
Above 25
 C (77 F)
Below 10
 C (50 F)
Between terminals Resistance ()
STA–Ground
STA–STJ
STA–STJ
30–50
30–90
70–90
–ENGINE MFI SYSTEM
EG2–247
