FUEL PUMP INSTALLATION
(See page EG1–180)
1. INSTALL FUEL PUMP FILTER
2. INSTALL FUEL PUMP
(a) Insert the outlet port of the fuel pump into the fuel
hose.
(b) Install the rubber cushion to the lower side of the fuel
pump.
(c) Push the lower side of the pump, together with the
rubber cushion, into the pump bracket.
3. INSTALL FUEL PUMP BRACKET
(a) Place the bracket with a new gasket on the fuel tank.
(b) Install and torque the seven screws.
Torque: 3.8 N–m (40 kgf–cm, 34 in.–lbf)
4. INSTALL FUEL TANK
NOTICE:
• Tighten the fuel tank mounting bolts, etc. to the
specified torque.

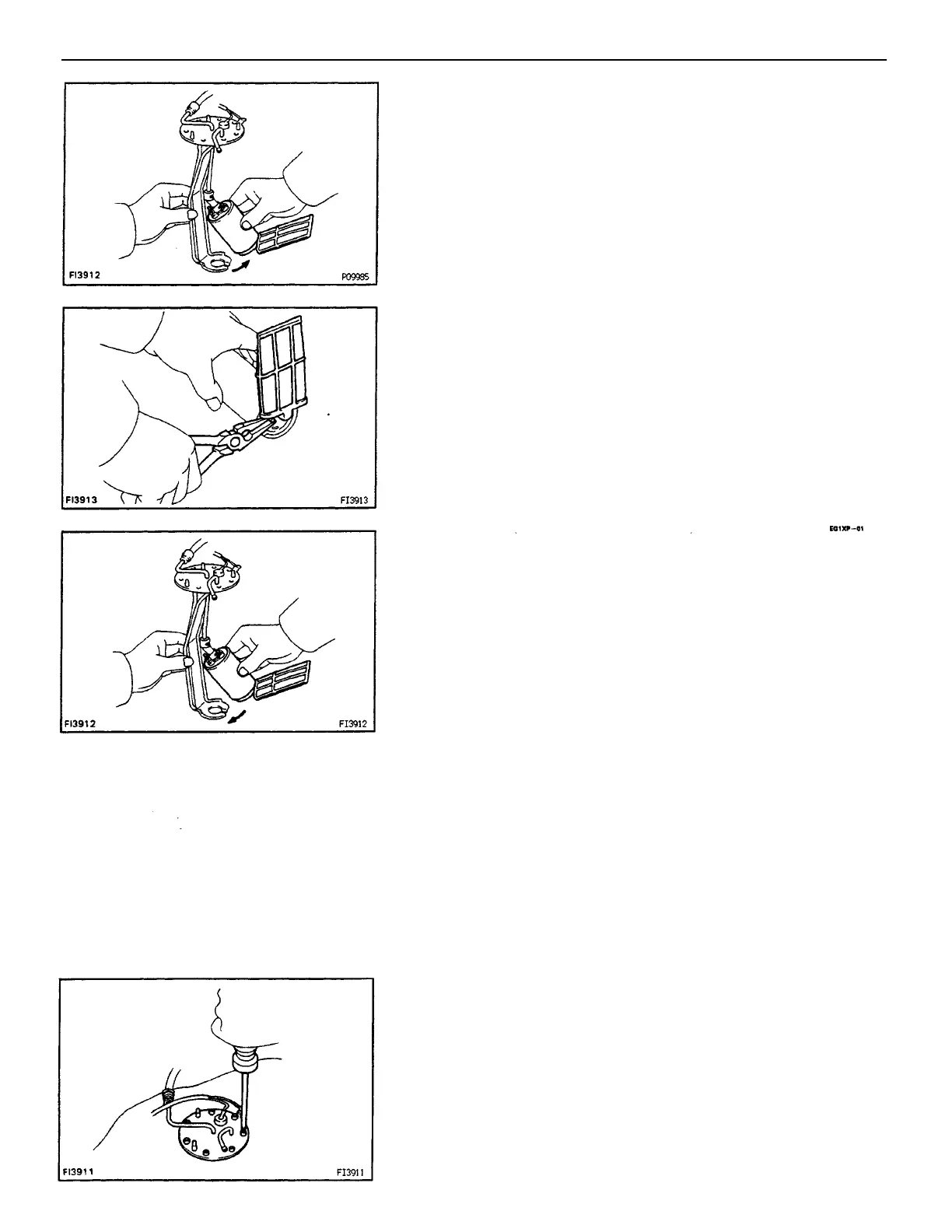

4. REMOVE FUEL PUMP
(a) Remove the two nuts and disconnect the wires from
the fuel pump.
(b) Pull off the fuel pump from the lower side of the
bracket.
(c) Remove the fuel pump from the fuel hose.
5. REMOVE FUEL PUMP FILTER
(a) Remove the rubber cushion.
(b) Remove the clip and pull out the filter.
–ENGINE MFI SYSTEM
EG1–181
