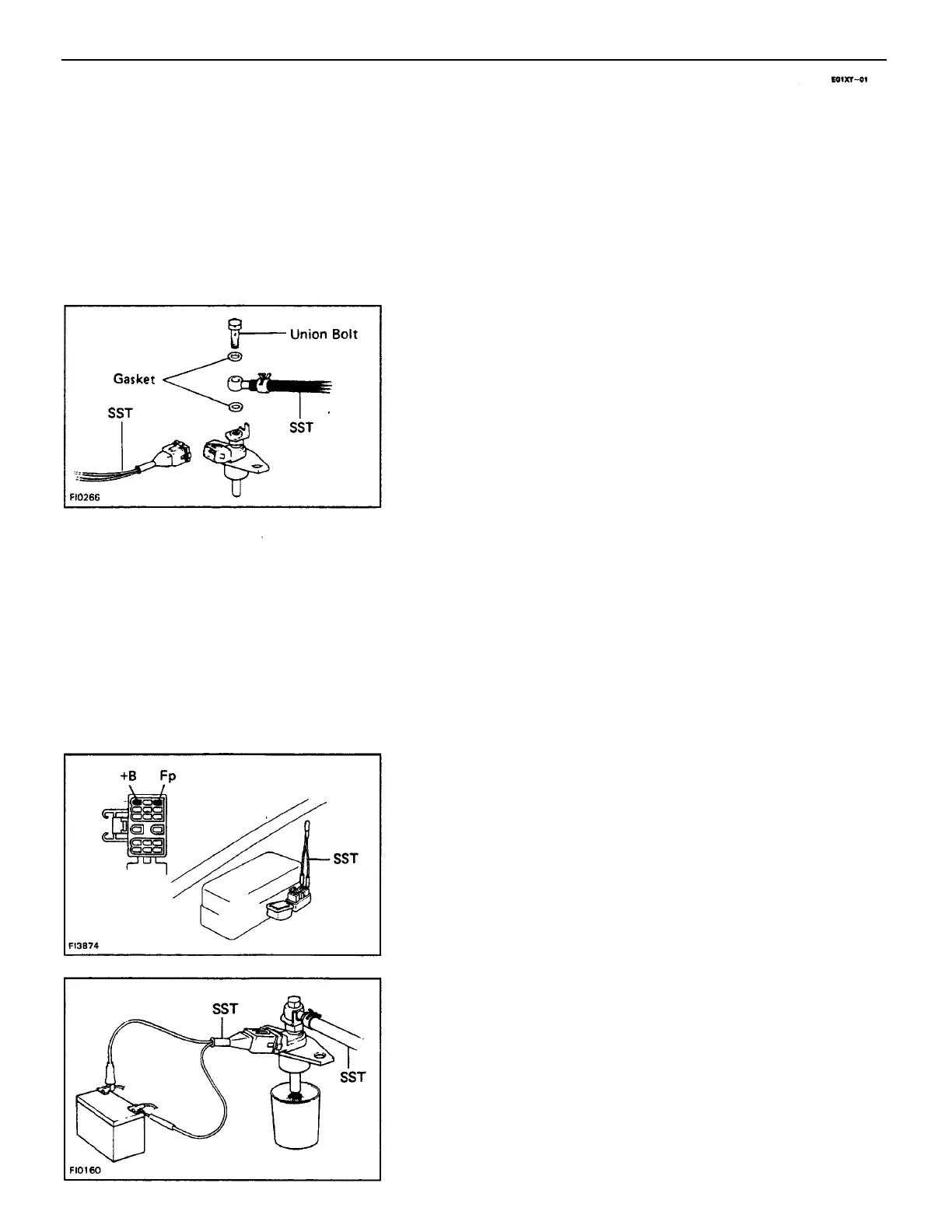

(b) Install a gasket, SST (two unions), another gasket and
two union bolts to the delivery pipe and injector.
(c) Connect the SST (hose) to each union.
SST 09268–41045 (092368–41080)
(d) Connect the SST (wire) to the injector.
SST 09842–30050
CAUTION: Position the injector as far away from the
battery as possible.
(e) Put a container under the injector.
(f) Turn the ignition switch ON.
HINT: Do not start the engine.
(h) Connect the test probes of the SST to the battery and
check that the fuel injection is as shown.
SST 09842–30050
NOTICE: Perform this check within the shortest possible
time.
COLD START INJECTOR INSPECTION
CHECK INJECTION OF COLD START INJECTOR
HINT: The engine should be cold.
(a) Remove the cold start injector.
(g) Using SST, connect terminals Fp and + B of the DLC
1.
SST 09843–18020
–ENGINE MFI SYSTEM
EG1–184
