5. REMOVE BRUSHES AND BRUSH HOLDER
(a) Remove the two screws and pull the end cover with
0–ring (1.4, 1.6 kW) off the field frame.
(b) Using a screwdriver, hold the spring back and discon–
nect the brush from the brush holder. Disconnect the
four brushes and remove the brush holder.
6. REMOVE ARMATURE FROM FIELD FRAME

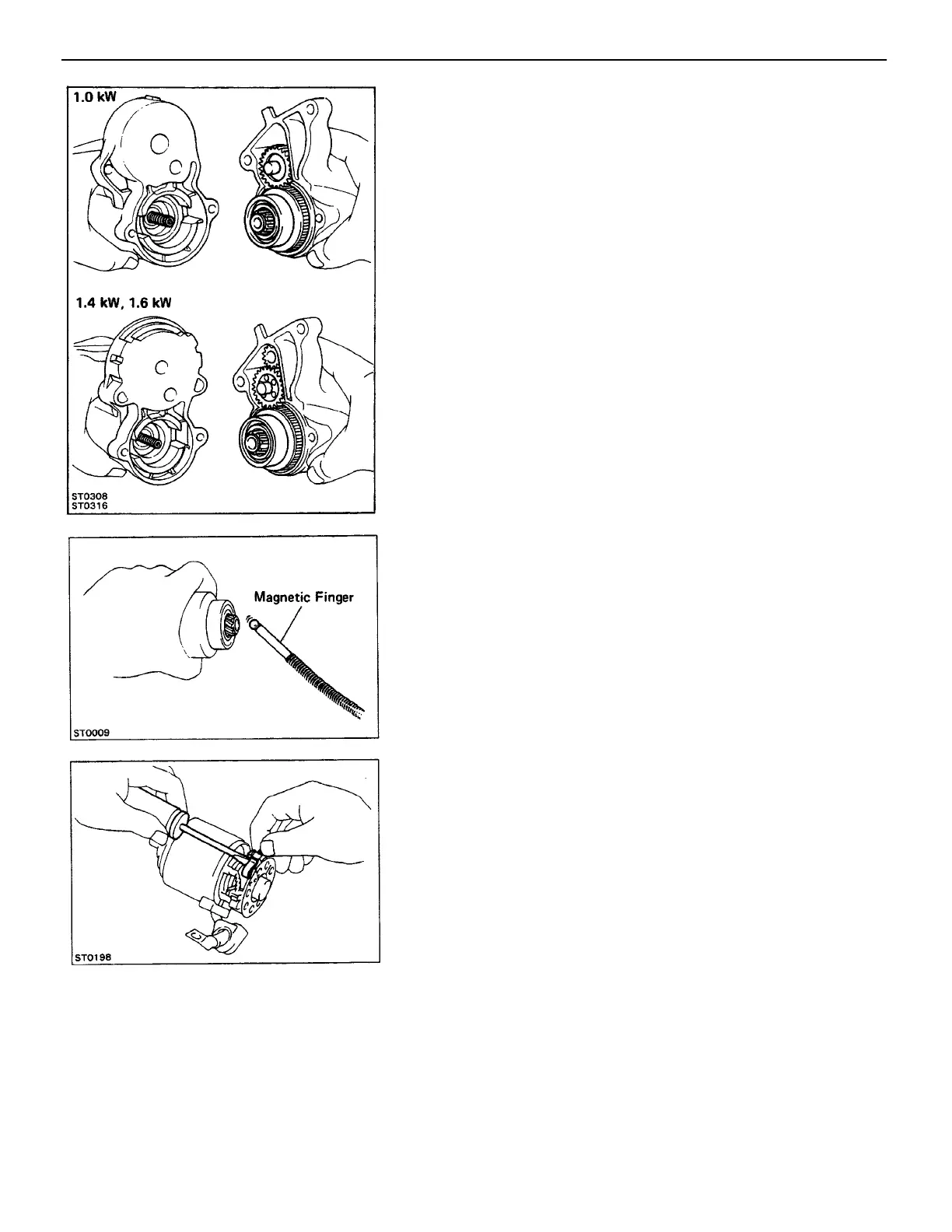

3. REMOVE CLUTCH ASSEMBLY AND GEARS FROM
STARTER HOUSING
4. REMOVE STEEL BALL AND SPRING
Using a magnetic finger, remove the spring and steel ball
from the clutch shaft hole.
(b) Remove the starter housing with the pinion gear
(1.4, 1.6 kW), idler gear, bearing and clutch assembly.
–STARTING SYSTEM Starter
ST–4
