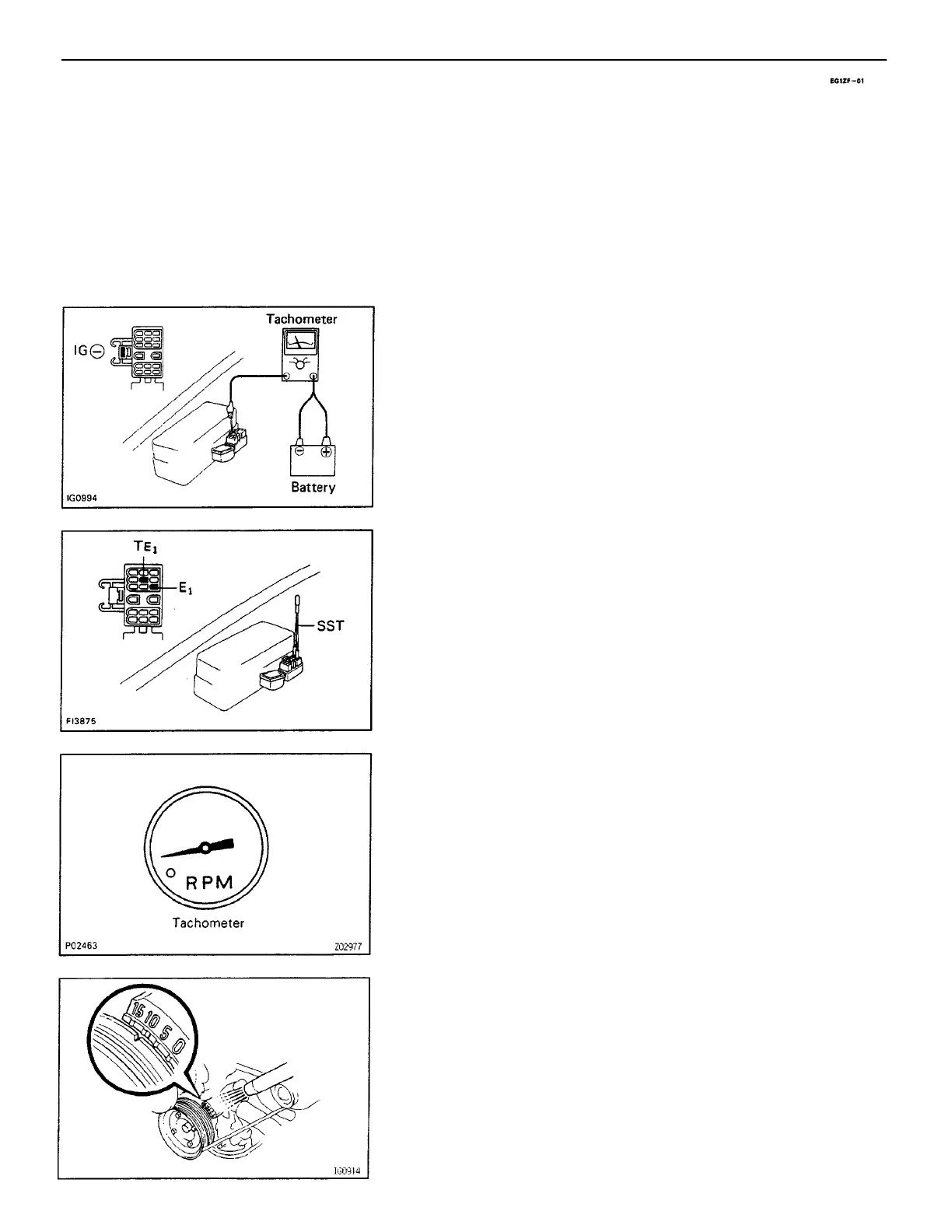

2. CONNECT TACHOMETER AND TIMING LIGHT TO
ENGINE
Connect the test probe of a tachometer to terminal IG
(–) of the data link connector 1.
NOTICE:
• Never allow the tachometer terminal to touch
ground as it could result in damage to the igniter
and/or ignition coil.
• As some tachometers are not compatible with this
ignition system, we recommend that you confirm
the compatibility of your unit before use.
3. ADJUST IGNITION TIMING
(a) Using SST, connect terminals TE1 and E1 of the the
data link connector 1.
SST 09843–18020
(c) Using a timing light, check the ignition timing.
Ignition timing:
10
 BTDC @ idle
(Transmission in neutral position)
(d) Loosen the hold–down bolt, and adjust by turning
the distributor.
(e) Tighten the hold–down bolt, and recheck the ignition
timing.
Torque: 18N–m (185 kgf–cm, 13 ft–lbf)
IGNITION TIMING INSPECTION AND
ADJUSTMENT
1. WARM UP ENGINE
Allow the engine to warm up to normal operating
temperature.
(b) Check the idle speed.
Idle speed:
800 ± 50 rpm
–ENGINE ENGINE MECHANICAL
EG2–25

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
