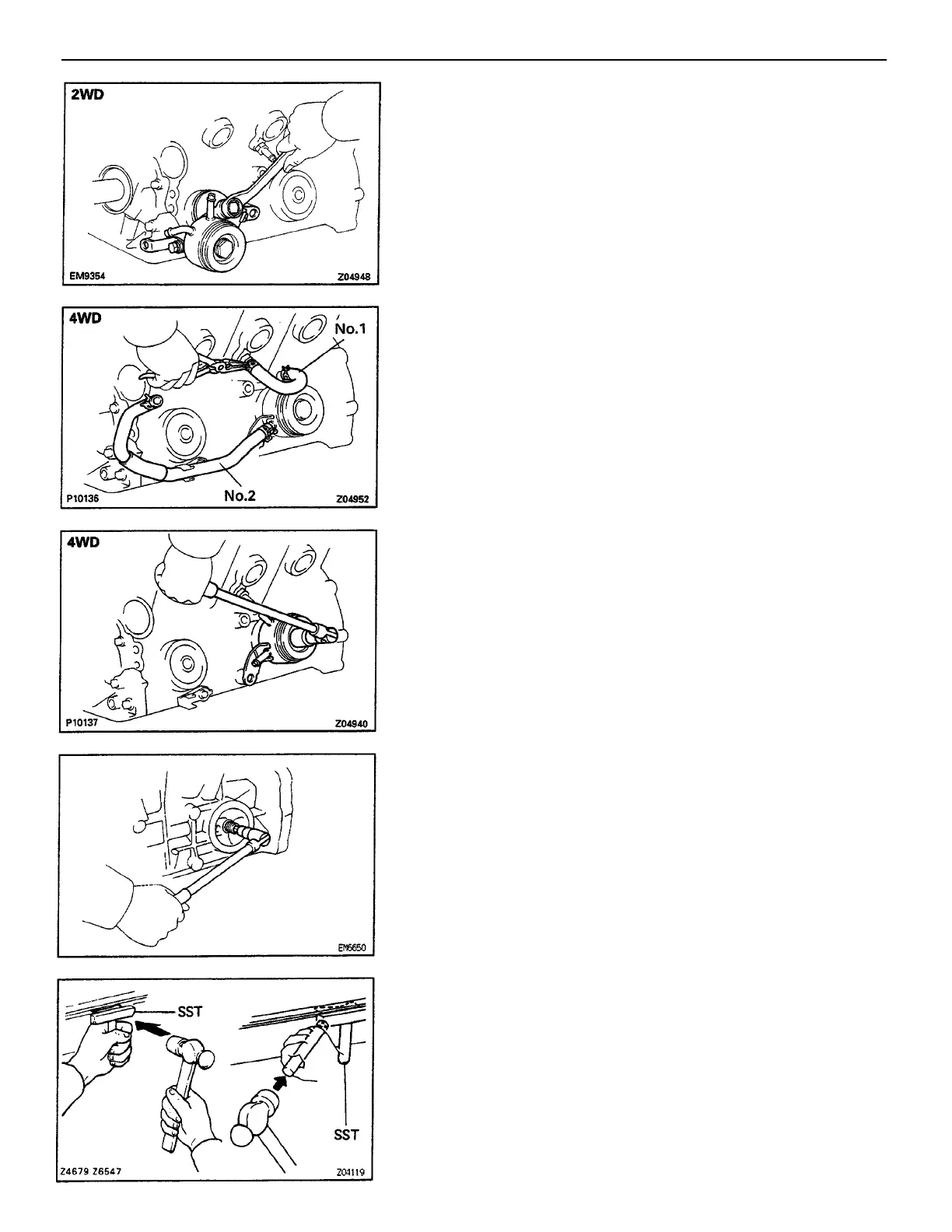

18. REMOVE OIL PAN
(a) Remove the seventeen bolts and two nuts.
(b) Insert the blade of SST between the baffle plate and
oil pan, cut off applied sealer and remove the oil pan.
SST 09032–00100
NOTICE: Be careful not to damage the oil pan and baffle
plate flanges.
(b) Remove the bolt holding the bracket to the cylinder
block.
(c) Remove the relief valve, seal washer, oil cooler and
seal washer.
(d) Remove the O–ring and gasket from the oil cooler.
(b) Remove the two bolts holding the bracket to the
cylinder block.
(c) Remove the union bolt, gasket, 0–ring, the oil cooler,
bracket assembly and 0–ring.
17. REMOVE OIL FILTER UNION
Using a 12 mm hexagon wrench, remove the oil filter
union.
16. (4WD)
REMOVE OIL COOLER
(a) Remove the No.1 and No.2 oil cooler hoses.
