ENGINE INSTALLATION
1. (M/T only)
INSTALL CLUTCH DISC AND COVER
2. INSTALL TRANSMISSION TO ENGINE
3. INSERT ENGINE AND TRANSMISSION ASSEMBLY
IN VEHICLE
(a) Attach the engine chain hoist to the engine hangers.
(b) Slowly lower the engine and transmission assembly
into the engine compartment.
NOTICE: Be careful not to hit the PNP switch.
(c) Keep the engine level, and align the RH and LH mount–
ings and body mountings.
(d) Attach the RH and LH mounting insulators to the
body mountingssand temporarily install the four bolts.
(e) Jack up and put the transmission onto the member.

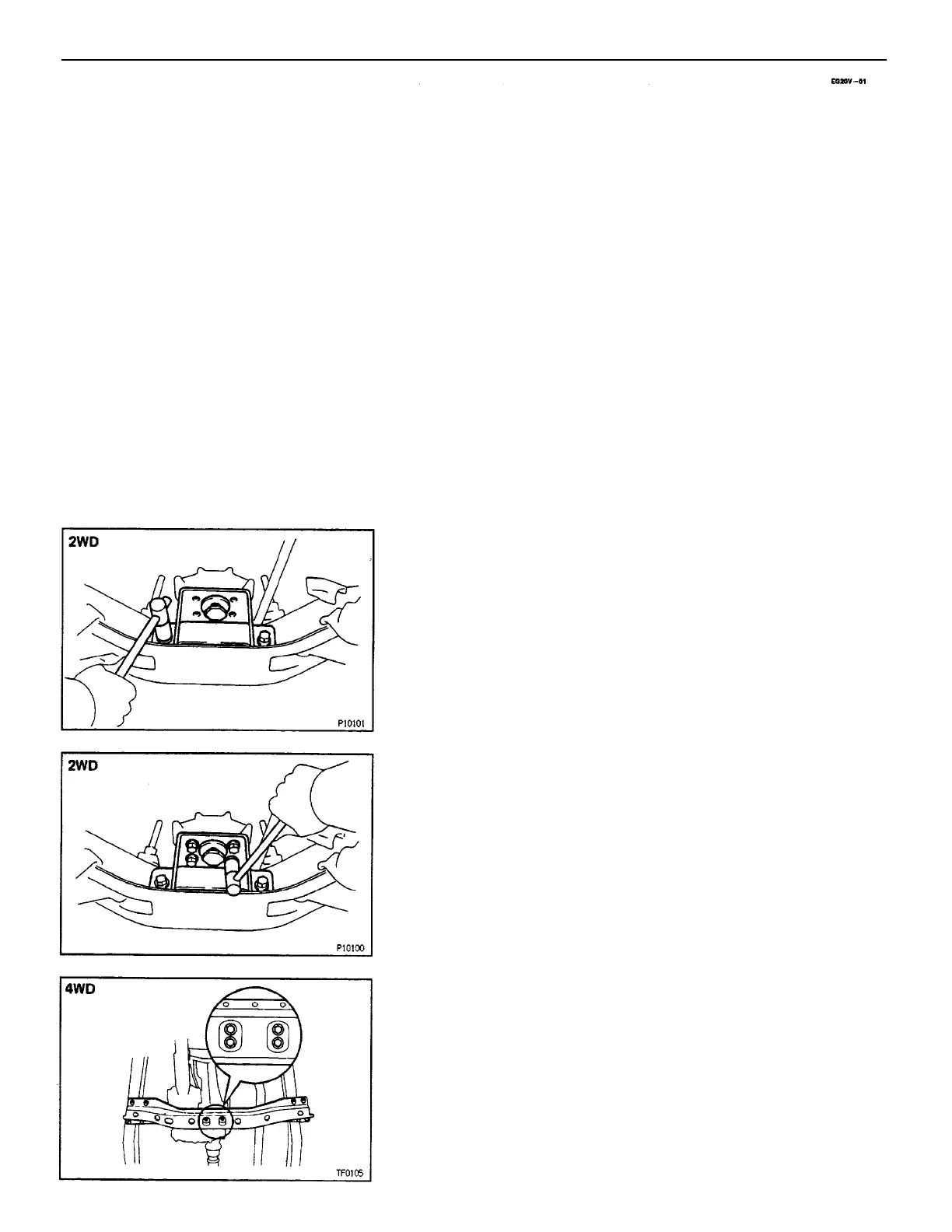

5. (4WD)
INSTALL NO.2 FRAME CROSSMEMBER
(a) Raise the transmission slightly with a jack.
(b) Install the frame crossmember to the side frame with
the eight bolts.
Torque: 95 N–m (970 kgf–cm, 70 ft–lbf)
(c) Lower the transmission and transfer.
(d) Install the frame crossmember to the engine rear mou–
nting insulator.
Torque: 13 N–m (130 kgf–cm, 9 ft–lbf)
4. (2WD)
INSTALL ENGINE REAR MOUNTING BRACKET
(a) Raise the transmission slightly by raising the engine
with a jack and a wooden block under the transmis–
sion.
(b) Install the engine rear mounting bracket to the sup–
port member.
Torque: 25 N–m (260 kgf–cm. 19 ft–lbf)
(c) Lower the transmission and rest it on the extension
housing.
(d) Install the mounting bracket to the mounting insula–
tor.
Torque: 13 N–m (130 kgf–cm, 9 ft–lbf)
