DIAGNOSTIC TROUBLE CODES OUTPUT
(Normal mode)
To obtain an output of diagnostic trouble codes,
proceed as follows:
1. Initial conditions
(a) Battery voltage above 11 volts or more.
(b) Throttle valve fully closed (throttle position sensor
IDL points closed).
(c) Transmission in neutral position.
(d) Accessories switched OFF.
(e) Engine at normal operating temperature.
2. Turn the ignition switch ON. Do not start the engine.

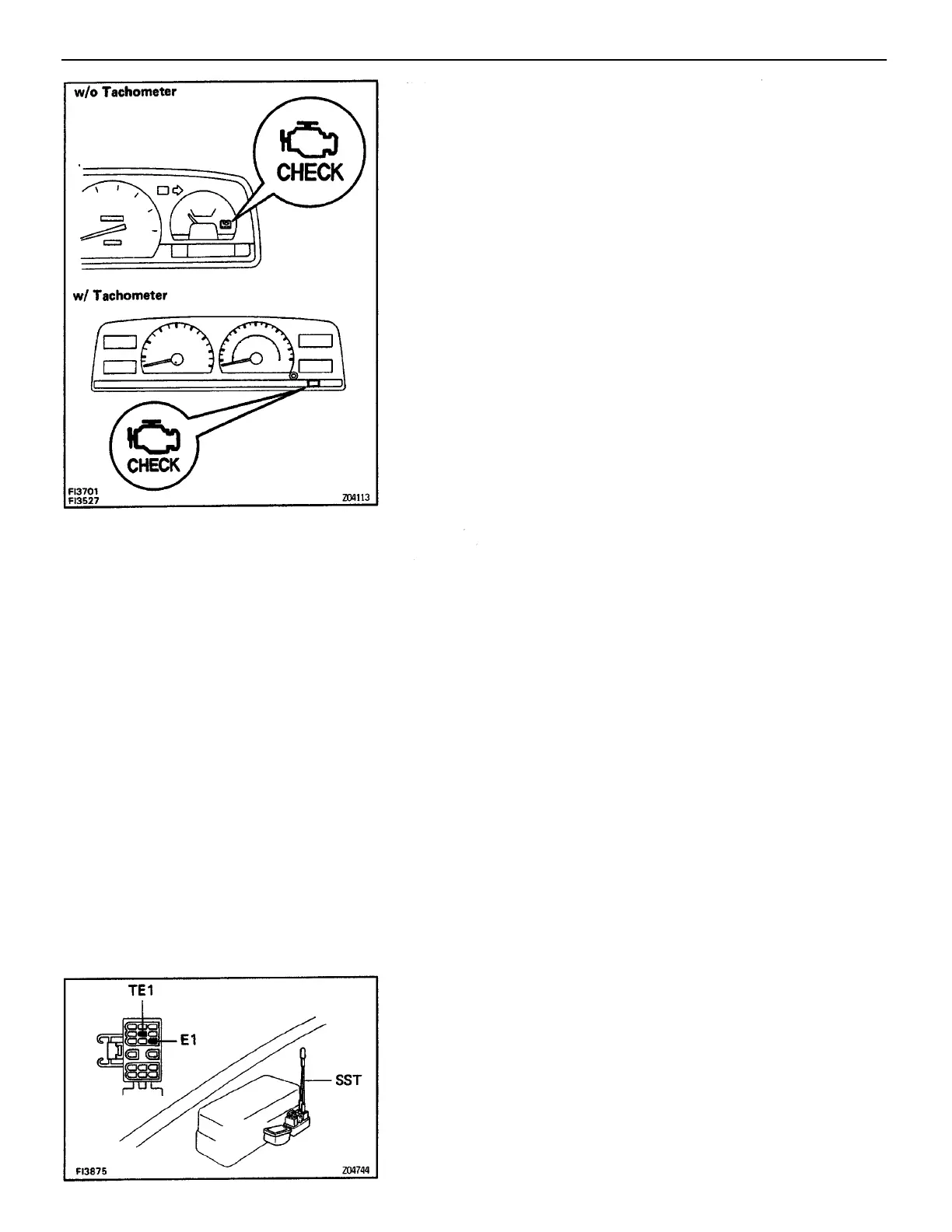

MALFUNCTION INDICATOR LAMP CHECK
1. The malfunction indicator lamp will come on when the
ignition switch is placed at ON and the engine is not
running.
2. When the engine is started, the malfunction indicator
lamp should go off.
If the light remains on, the diagnosis system has
detected a malfunction or abnormality in the system.
3. Using SST, connect terminals TE1 and E1 of the DLC
1.
SST 09843–18020
HINT: The DLC1 is located near the No.2 relay block.
–ENGINE MFI SYSTEM
EG2–171
