6. TIGHTEN RH AND LH ENGINE MOUNTING
INSULATOR BOLTS
Tighten the four bolts holding the mounting insulators
to the body mountings.
Torque: 37 N–m (380 kgf–cm, 27 ft–lbf)
7. (4WD only)
INSTALL NO.1 FRONT FLOOR AND BRAKE TUBE
HEAT INSULATOR
8. INSTALL NO.1 FRAME CROSSMEMBER
9. (4WD only)
INSTALL STABILIZER BAR
10. (4WD only)
INSTALL TRANSFER UNDER COVER
11. CONNECT SPEEDOMETER CONNECTOR
12. (4WD A/T only)
CONNECT MANUAL SHIFT LINKAGE
13. (4WD only)
INSTALL FRONT PROPELLER SHAFT
(See page PR–16)
14. INSTALL REAR PROPELLER SHAFT
(See page PR–15)
15. (M/T only)
INSTALL SHIFT LEVERS

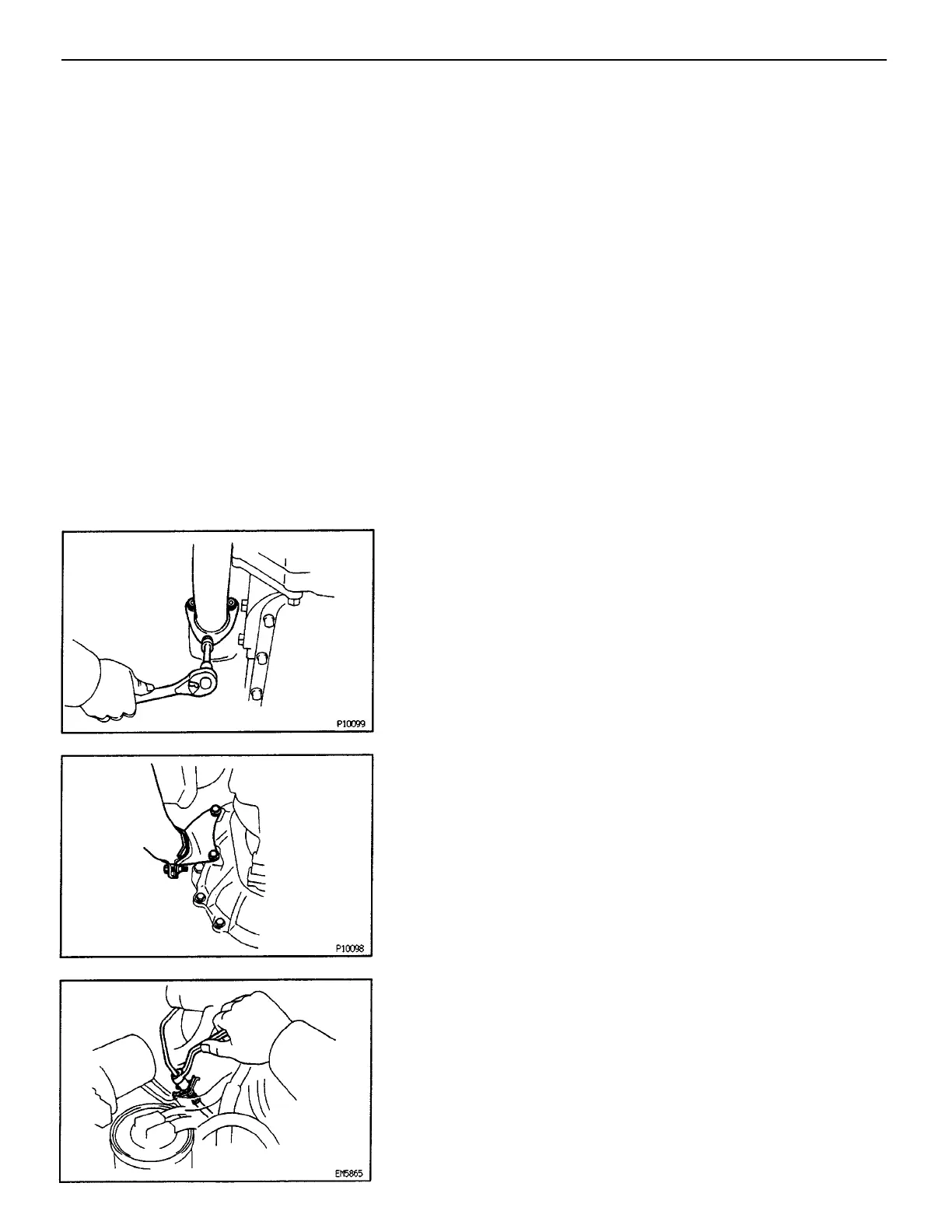

16. INSTALL FRONT EXHAUST PIPE
(a) Connect the exhaust pipe to the LH exhaust manifold
with new gasket and three new nuts.
Torque: 62 N–m (630 kgf–cm, 46 ft–lbf)
(b) Connect the exhaust pipe to the catalytic converter
with new gasket and the two bolts.
Torque: 39 N–m (400 kgf–cm, 29 ft–lbf)
(c) Install the pipe bracket to the transmission with the
two bolts.
(d) Install the pipe bracket to the exhaust pipe with the
pipe clamp.
(e) Connect the oxygen sensor connector.
17. (M/T only)
CONNECT CLUTCH RELEASE CYLINDER HOSE
18. INSTALL A/C COMPRESSOR
–ENGINE ENGINE MECHANICAL
EG2–131
