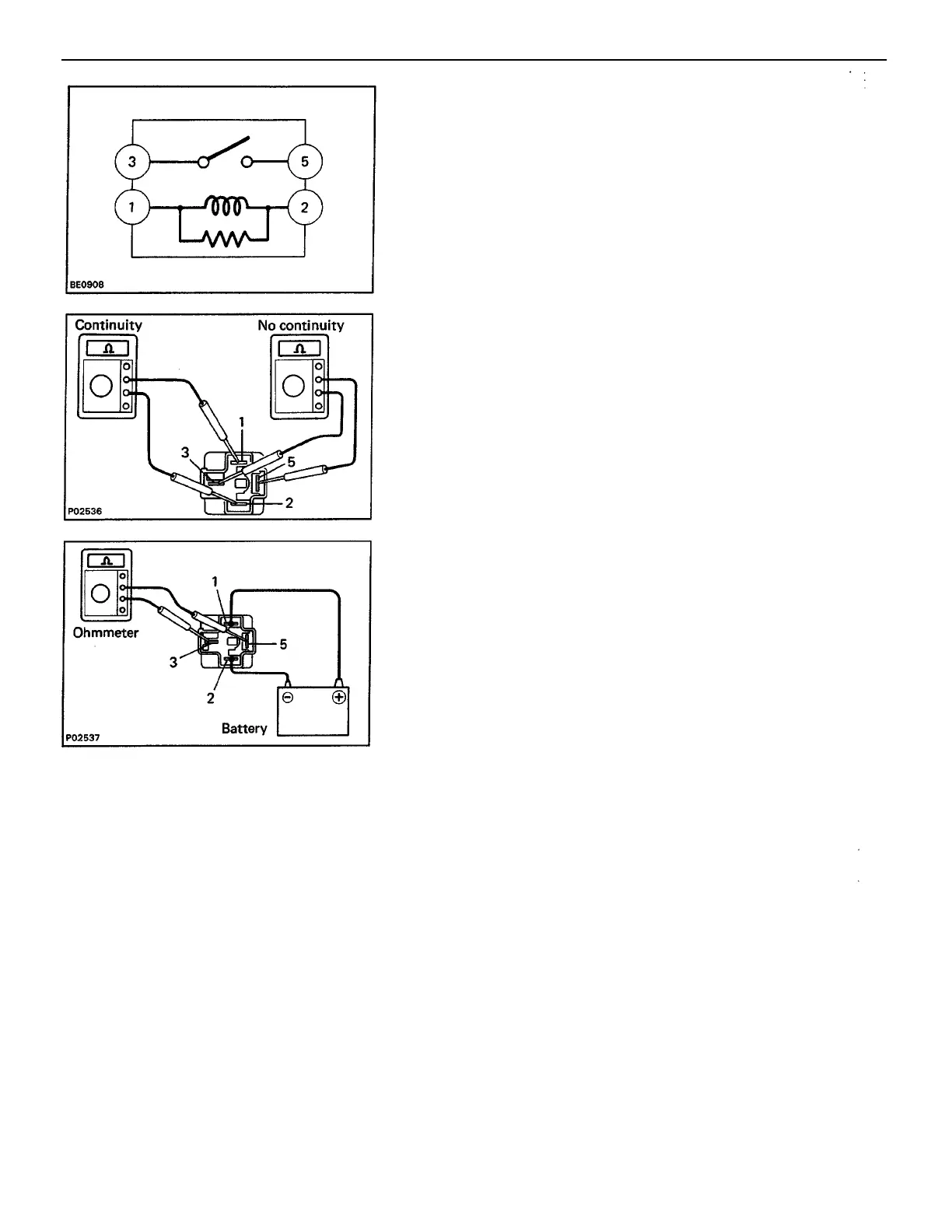

1. INSPECT RELAY CONTINUITY
(a) Using an ohmmeter, check that there is continuity be–
tween terminals 1 and 2.
(b) Check that there is no continuity between terminals
3 and 5.
If continuity is not as specified, replace the relay.
2. INSPECT RELAY OPERATION
(a) Apply battery voltage across terminals 1 and 2.
(b) Check that there is continuity between terminals 3 and*
5.
If operation is not as described, replace the relay.
STARTER RELAY
INSPECTION OF STARTER RELAY
LOCATION: The relay is located in the No. 1 junction block
on the driver’s side.
CLUTCH START SWITCH (M/T only)
(See page CL–4)
–STARTING SYSTEM Starter Relay, Clutch Start Switch
ST–13
