(b) Using SST, loosen the pulley bolt.
SST 09213–58012 (90201–08131, 91111–50845),
09330–00021
(c) Remove the SST and pulley bolt.

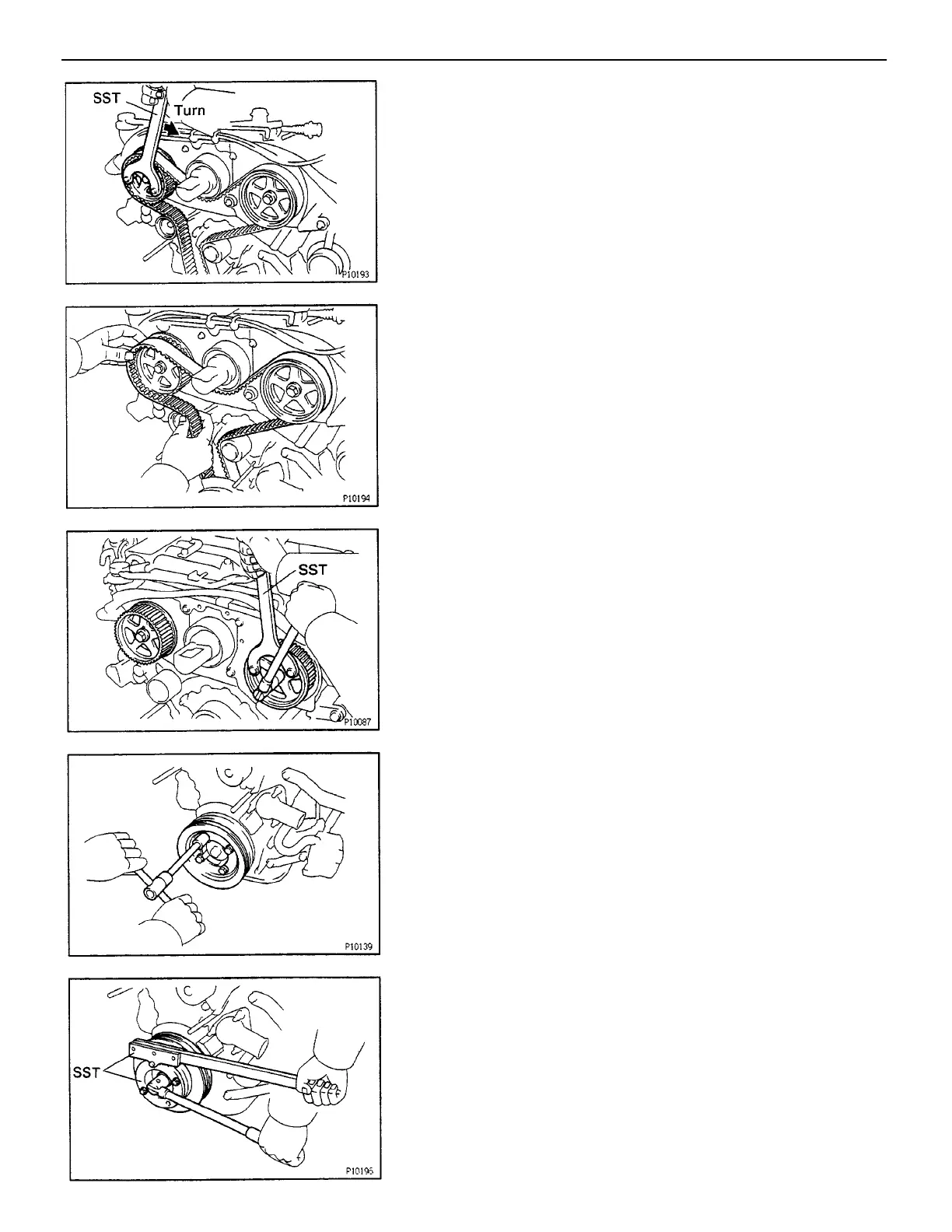

20. REMOVE CAMSHAFT TIMING PULLEYS
Using SST, remove the pulley bolt, timing pulley and
knock pin. Remove the two timing pulleys.
SST 09278–54012
(a) Using SST, loosen the tension spring between the LH
and RH camshaft timing pulleys by slightly turning the
LH camshaft timing pulley clockwise.
(b) Disconnect the timing belt from the camshaft timing
pulleys.
21. REMOVE CRANKSHAFT PULLEY
(a) Remove the four bolts and PS drive belt pulley.
