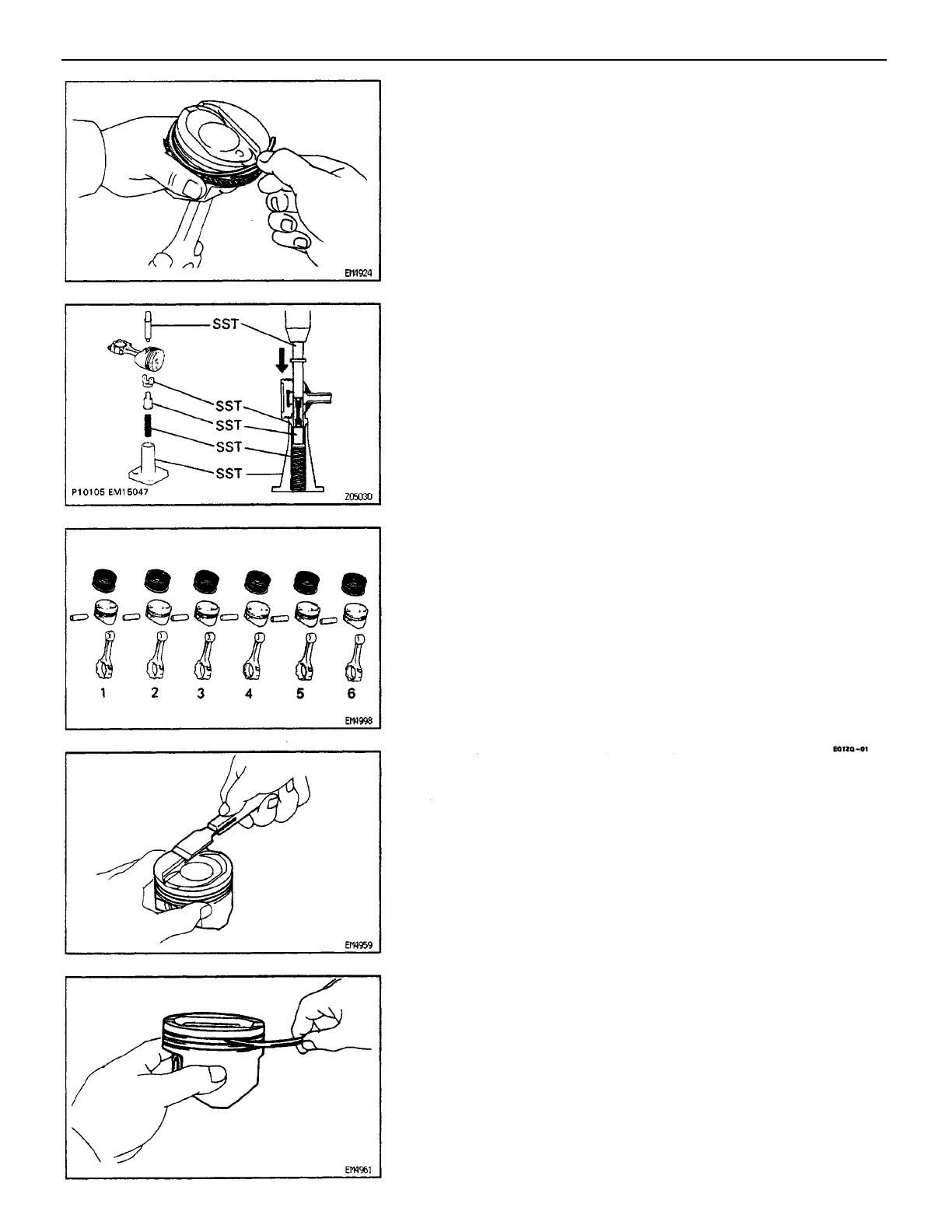

PISTON AND CONNECTING ROD
INSPECTION
1. CLEAN PISTON
(a) Using a gasket scraper, remove the carbon from the
piston top.
3. DISCONNECT CONNECTING ROD FROM PISTON
Using SST and a press, press out the piston pin from
the piston. Remove the connecting rod.
SST 09221– 25024 (09221 –00020, 09221– 00030,
09221– 00181, 09221 –00190, 09221– 00200)
HINT:
The piston and pin are a matched set.
Arrange the pistons, pins, rings, connecting rods
and bearings in correct order.
(b) Remove the two side rails and oil ring by hand.
HINT: Arrange the piston rings in correct order only.
(b) Using a groove cleaning tool or broken ring, clean the
piston ring grooves.
–ENGINE ENGINE MECHANICAL
EG2–108
