IDLE AND OR 2500 RPM CO HC
CHECK
HINT: This check is used only to determine whether or
not the idle CO/HC complies with regulations.
1. INITIAL CONDITIONS
(a) Engine at normal operating temperature
(b) Air cleaner installed
(c) All pipes and hoses of air induction system connected
(d) All accessories switched OFF
(e) All vacuum lines properly connected
HINT: All vacuum hoses for EGR systems, etc. should
be properly connected.
(f) MFI system wiring connectors fully plugged
(g) Ignition timing set correctly
(h) Idle speed set correctly
(i) Transmission in neutral position
(j) Tachometer and CO/HC meter calibrated by hand

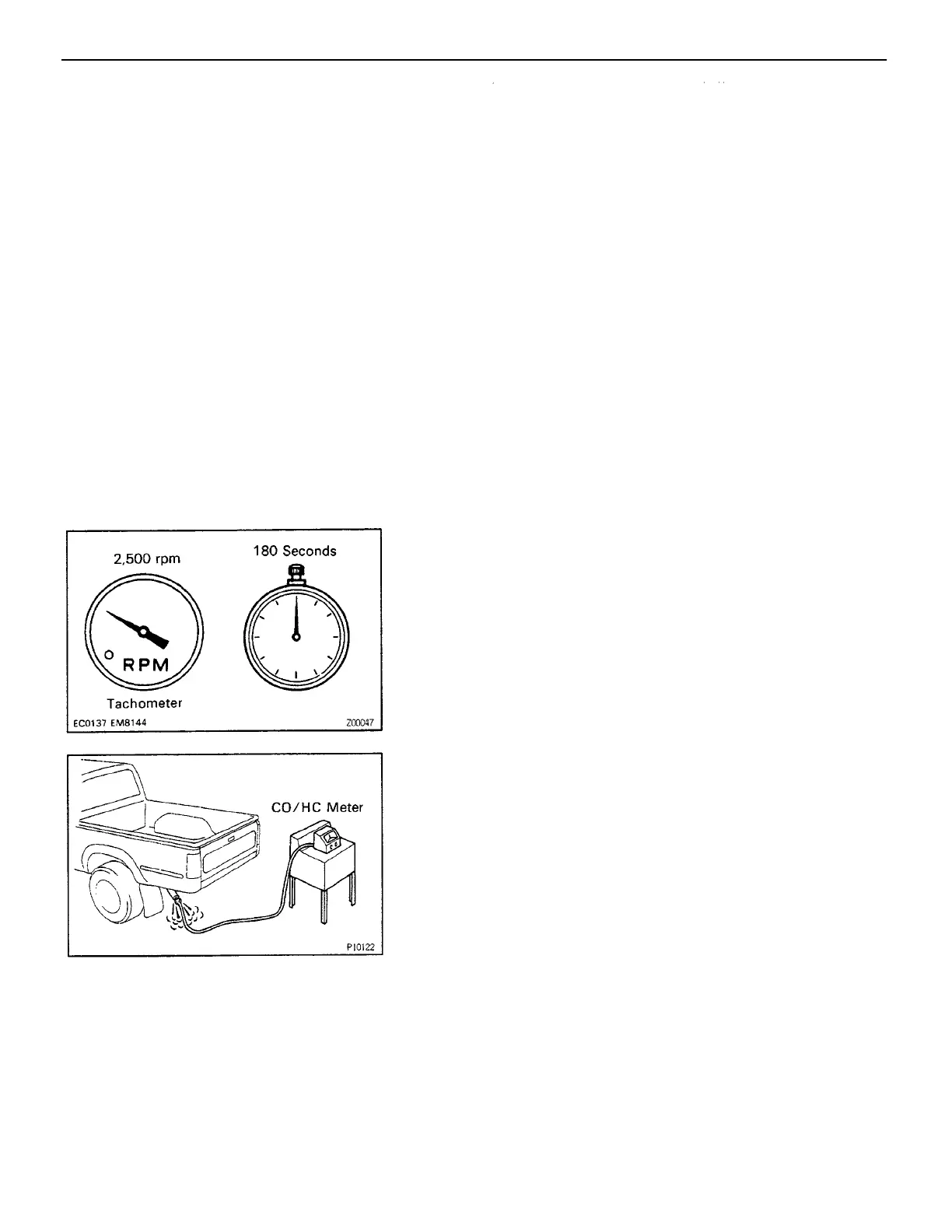

4. INSERT CO/HC METER TESTING PROBE INTO
TAILPIPE AT LEAST 40 cm (1.3 ft) DURING IDLING
5. IMMEDIATELY CHECK CO/HC CONCENTRATION
AT IDLE AND/OR 2,500 RPM
HINT: When performing the 2 mode (2,500 rpm and
idle) test, follow the measurement order prescribed by
the applicable local regulations.
2. START ENGINE
3. RACE ENGINE AT 2,500 RPM FOR APPROX. 180
SECONDS
–ENGINE ENGINE MECHANICAL
EG2–28

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
