OIL PUMP INSTALLATION
(See page EG1–238)
1. INSTALL OIL PUMP DRIVE SPLINE AND O–RING
(a) Slide the pump drive spline onto the crankshaft.
HINT: If the oil pump drive spline cannot be installed
by hand, use SST. (See page EG1–43)
(b) Place the 0–ring into the groove.
2. INSTALL OIL PUMP
(a) Clean the threads of the upper set bolt and timing
chain cover bolt hole of any sealer, oil or foreign
particles.
Remove any oil with kerosene or gasoline.
OIL PUMP ASSEMBLY.
(See page EG1–238)
(a) Install the relief valve and spring in the body, and
screw on the relief valve plug with a new gasket.
(b) Insert the drive and driven gears into the pump body.
(b) Apply sealant to 2 or 3 threads of the bolt end.
Sealant: Part No. 08833–00070, THREE BOND 1324 or
equivalent
HINT: This adhesive will not harden while exposed to
air. It will act as a sealant or binding agent only when
applied to threads, etc. and air is cut off.

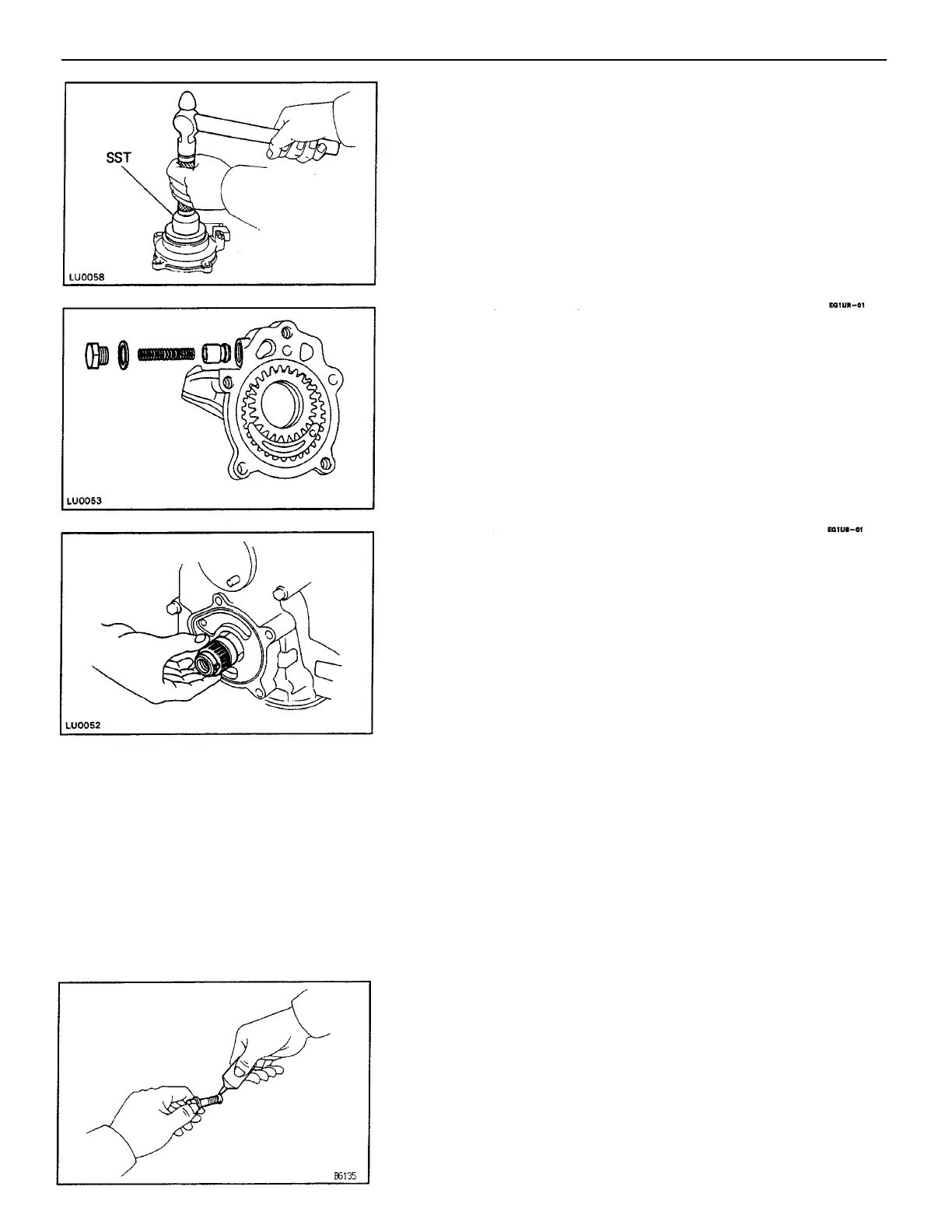

2. INSTALL OIL SEAL
(a) Apply MP grease to a new oil seal lip.
(b) Using SST, drive in the new oil seal.
SST 09223–50010
–ENGINE LUBRICATION SYSTEM
EG1–241
