Toyota 22R-E - Distributor Components; Distributor Removal; Distributor Installation; Install Distributor and Set

DISTRIBUTOR REMOVAL
1. DISCONNECT HIGH – TENSION CORDS AND
WIRING CONNECTOR
2. REMOVE TWO SCREWS AND PULL OFF DISTRIB–
UTOR CAP
3. REMOVE HOLD – DOWN BOLT AND PULL OUT
DISTRIBUTOR
DISTRIBUTOR INSTALLATION
1. INSTALL DISTRIBUTOR AND SET TIMING
(a) Install a new O–ring to the distributor.
HINT: Always use a new 0–ring when installing the
distributor.

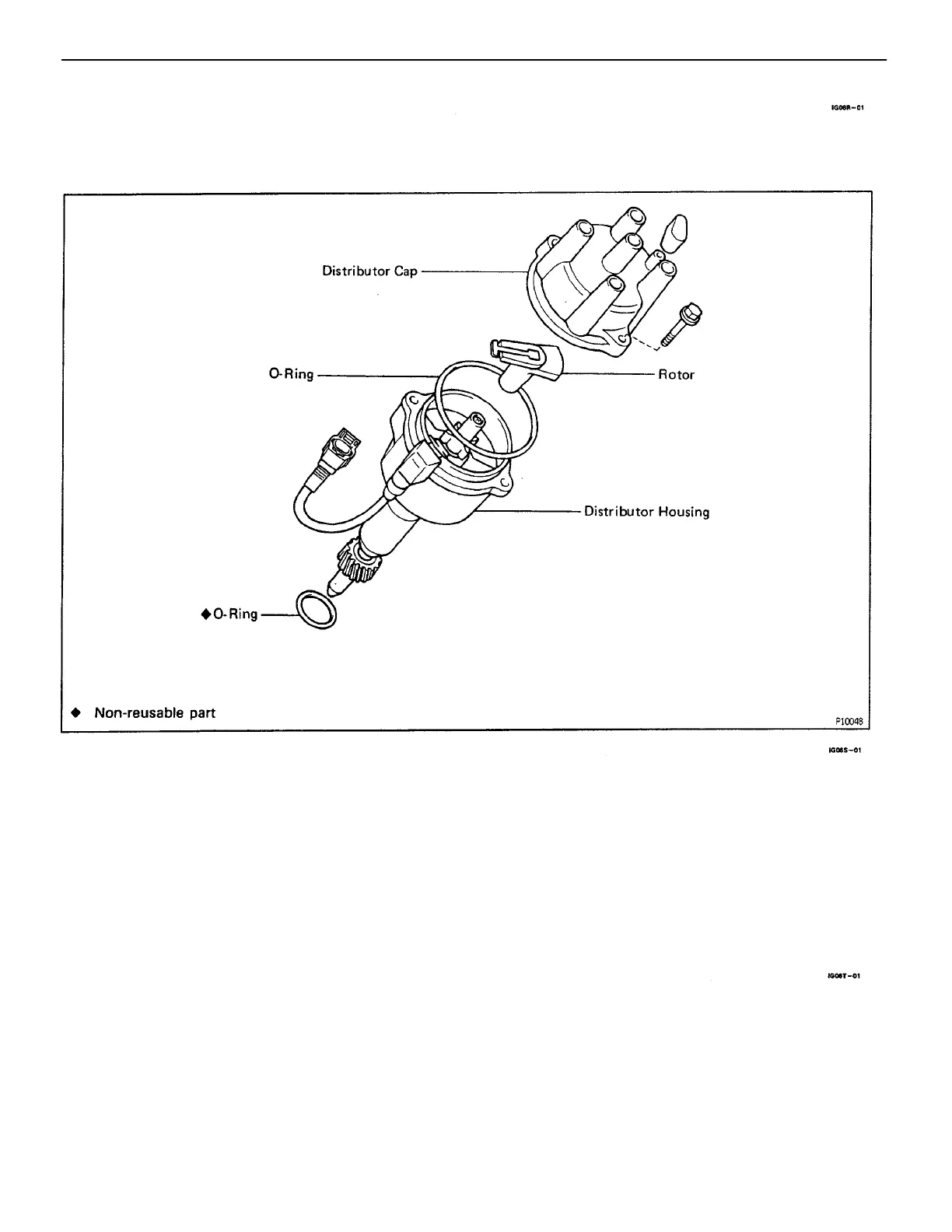

DISTRIBUTOR
COMPONENTS
–IGNITION SYSTEM (22R– E)
IG–9
