Toyota 22R-E - VC-E2 (E21); Vta-E2 (E21)

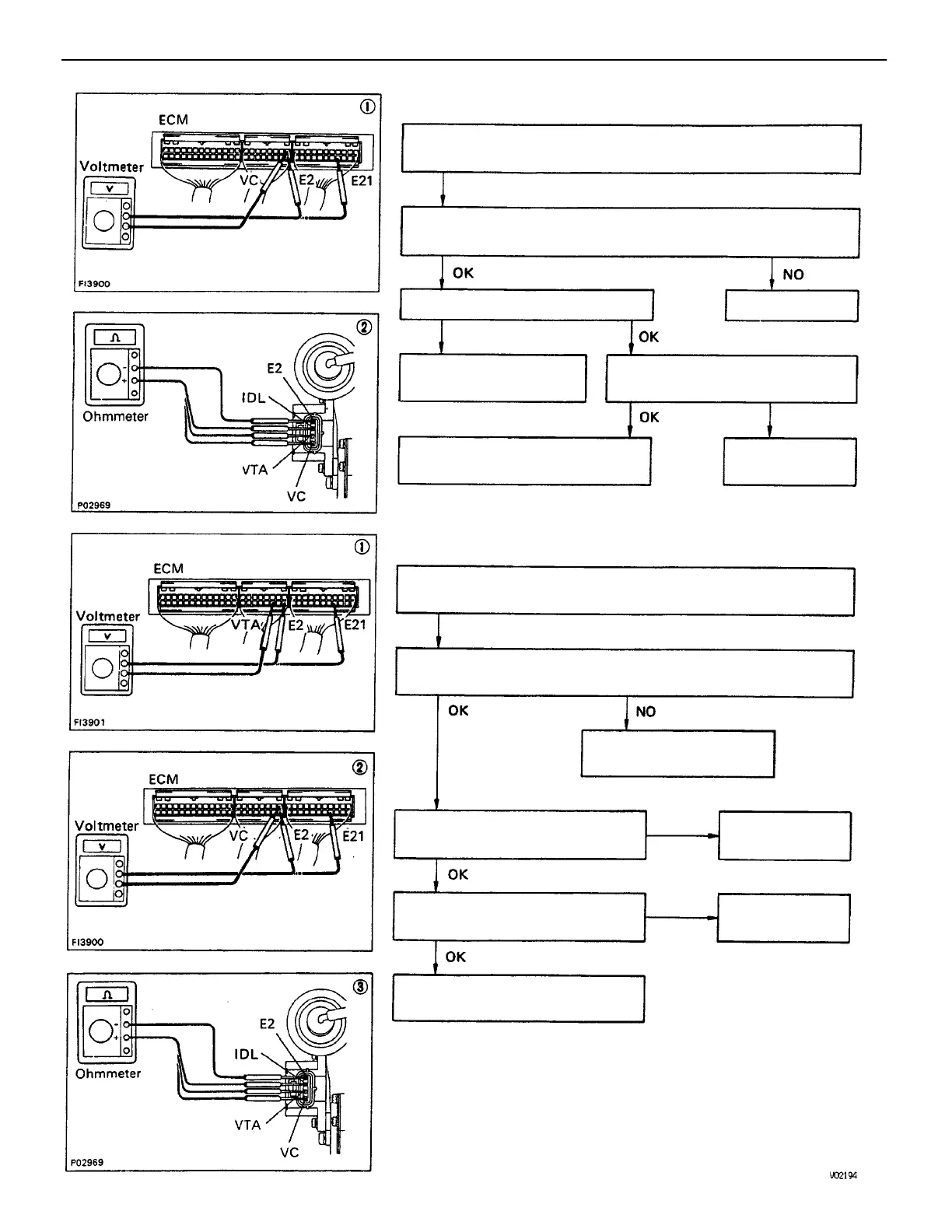

Check that there is voltage between ECM terminals + B1( + B) and E1.
(IG SW ON)
(2) Check that there is voltage between ECM terminals VC and E2 (E21) .
(IG SW ON)
(1) There is no voltage between ECM terminals VTA and E2 (E21).
(IG SW ON)
(1) There is no voltage between ECM terminals VC and E2 (E21).
(IG SW ON)
(3) Check throttle position sensor.
Check wiring between ECM and
throttle position sensor.
Check wiring between ECM and
throttle position
(2) Check throttle position sensor.
Perform inspection of
VC – E2 (E21).
Repair or replace
wiring.
Try another ECM.
• VTA – E2 (E21)
• VC – E2 (E21)
Repair or replace.
Repair or replace.
Repair or replace.
Try another ECM.
Refer to No. 1.
BAD
BAD
BAD
BAD
–ENGINE MFI SYSTEM
EG2–189
