Toyota 22R-E - Inspect Resistance of ECM

2. INSPECT RESISTANCE OF ECM
NOTICE:
• Do not touch the ECM terminals.
• The tester probe should be inserted into the wiring
connector from the wiring side.

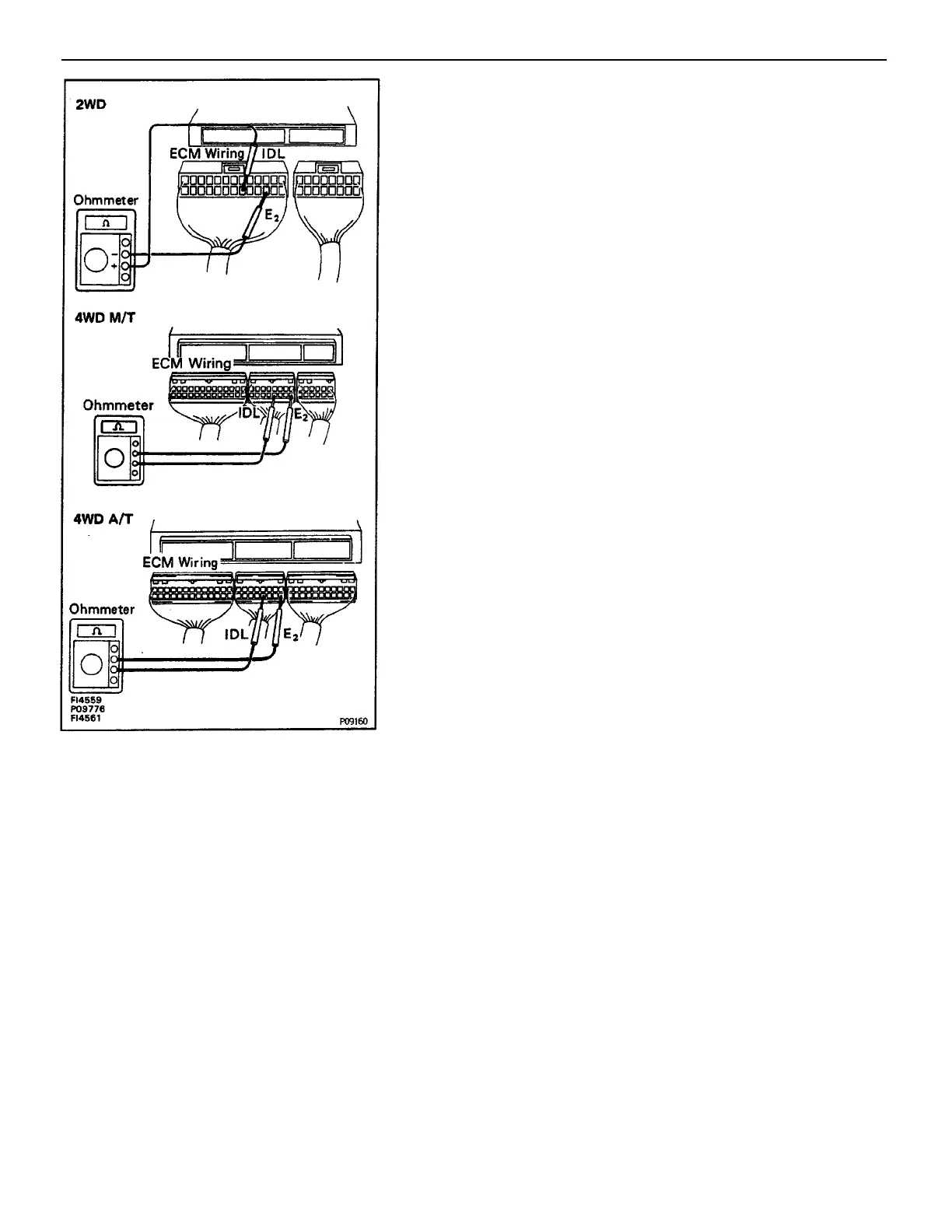

Check the resistance between each terminal of the
wiring connectors.
• Disconnect the connectors from the ECM.
• Measure the resistance at each terminal.
–ENGINE MFI SYSTEM
EG1–217
