FUEL PRESSURE REGULATOR
INSTALLATION
(See Components for Removal and Installation)

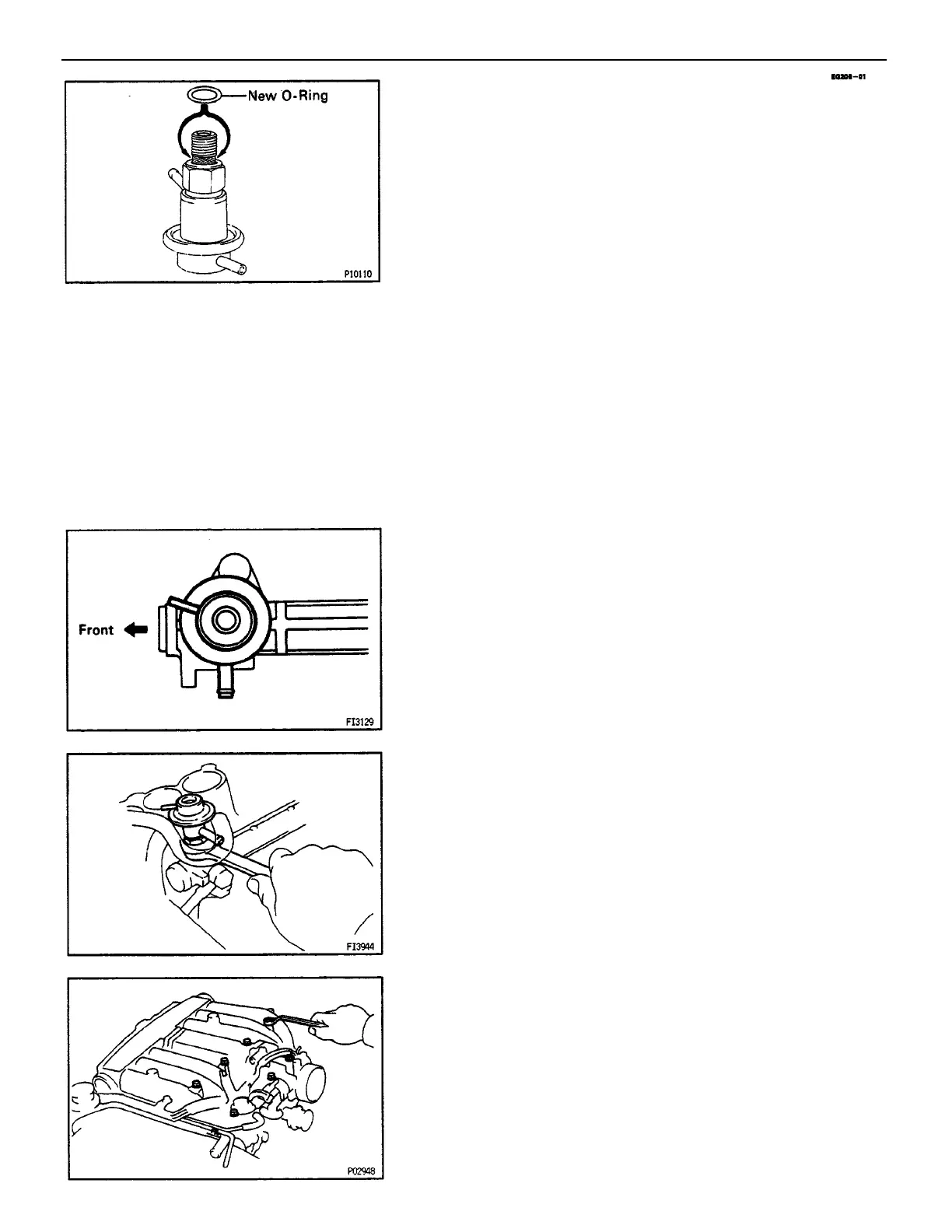

1. INSTALL FUEL PRESSURE REGULATOR
(a) Fully loosen the lock nut of the fuel pressure regula–
tor.
(b) Apply a light coat of gasoline to a new 0–ring and
install it to the fuel pressure regulator.
(c) Thrust the fuel pressure regulator completely into the
delivery pipe by hand.
2. INSTALL AIR INTAKE CHAMBER
(a) Position a new gasket on the intake manifold.
(b) Install the intake chamber with the six bolts and two
nuts.
Torque: 18 N–m (185 kgf–cm, 13 ft–lbf)
(d) Turn the fuel pressure regulator counterclockwise
until the outlet faces in the direction indicated in the
illustration.
(e) Torque the lock nut.
Torque: 29 N–m (300 kgf–cm, 22 ft–lbf)
–ENGINE MFI SYSTEM
EG2–216
