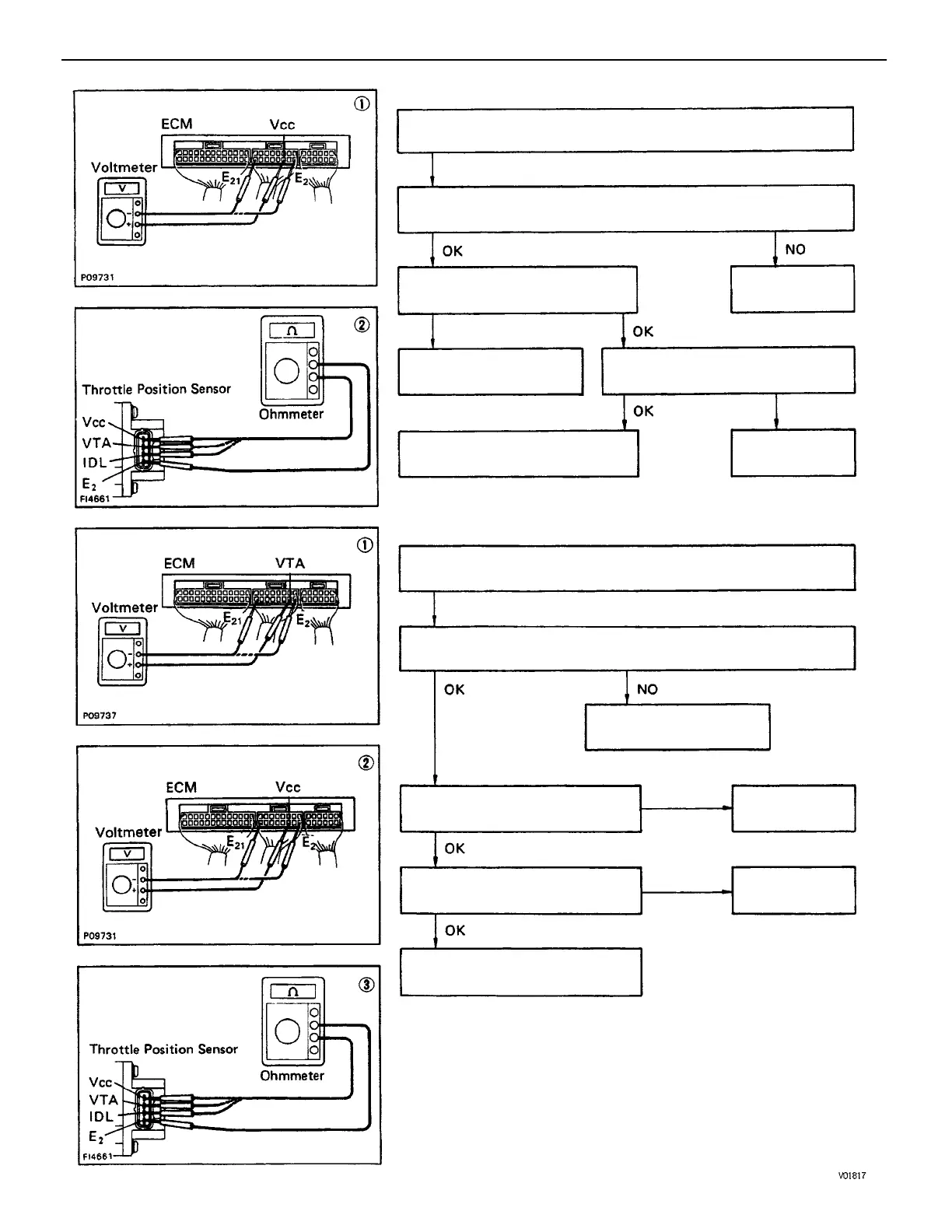

Toyota 22R-E - There Is no Voltage between ECM Terminals VCC and E2 (E21) (IG SW ON); There Is no Specified Voltage between ECM Terminals VTA and E2 (E21) (IG SW ON)

(1) There is no specified voltage between ECM terminals VTA and
E2 (E21).(IG SW ON)
(2) Check that there is voltage between ECM terminals Vcc and E2
(E21). (IG SW ON)
(1) There is no voltage between ECM terminals Vcc and E2 (E21).
(IG SW ON)
Check that there is voltage between ECM terminals + B (+ B1)
and E1. (IG SW ON)
Check wiring between ECM and
throttle position sensor.
Check wiring between ECM and
throttle position sensor.
Perform inspection of
Vcc – E1 (E21)
(2) Check throttle position sensor.
(3) Check throttle position sensor.
Repair or
replace wiring.
• VTA – E2 (E21)
• Vcc – E2 (E21 )
Try another ECM.
Try another ECM.
Repair or replace.
Repair or replace.
Repair or replace.
Refer to No. 1.
BAD
BAD
BAD
BAD
