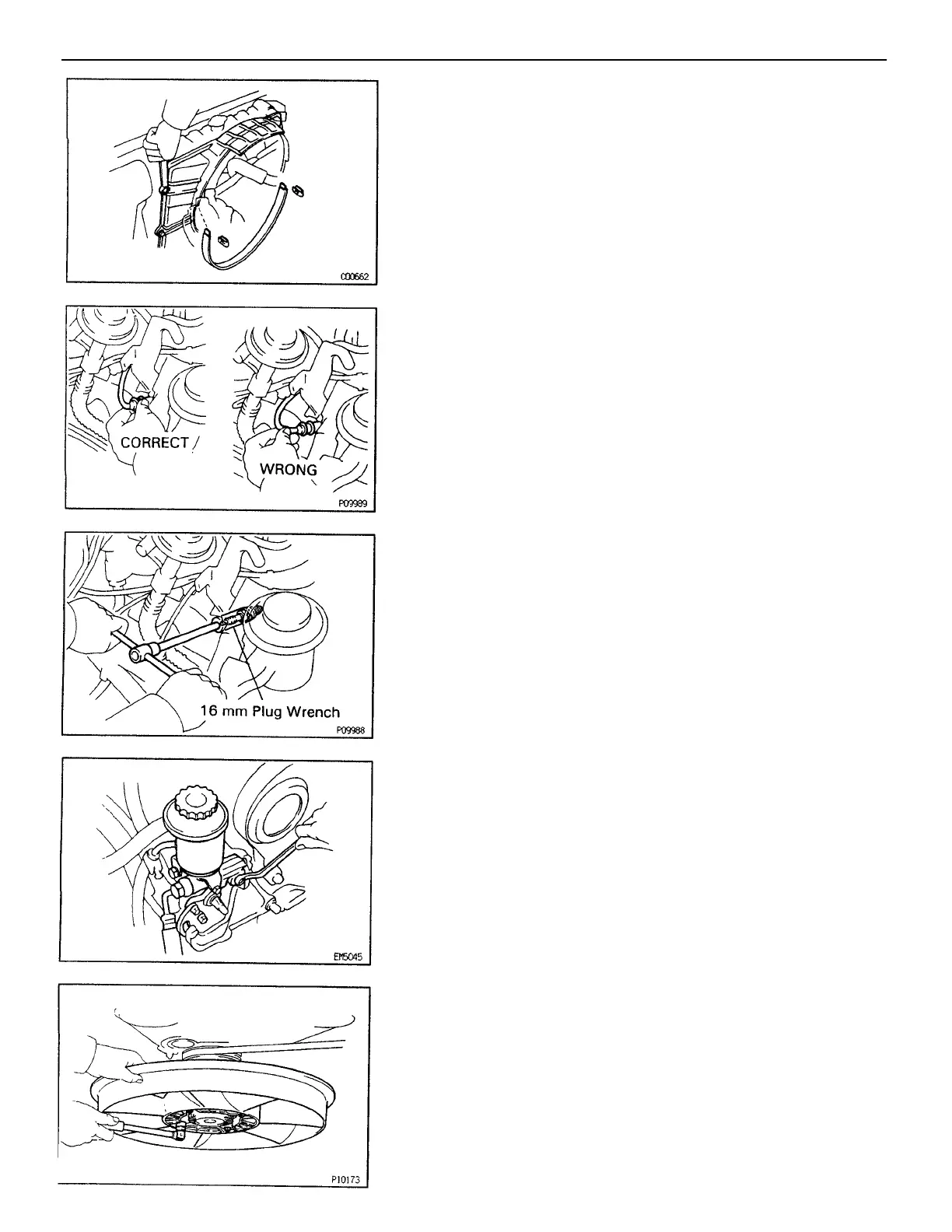

6. DISCONNECT HIGH–TENSION CORDS FROM
SPARK PLUGS
Disconnect the high – tension cords at the rubber
boot. Do not pull on the cords.
NOTICE: Pulling on or bending the cords may damage the
conductor inside.
(d) Remove the two clips and No.2 fan shroud.
(e) Remove the four bolts and No.1 fan shroud.
(f) Remove the four bolts and radiator.
5. DISCONNECT N0.2 AND NO.3 AIR HOSES FROM
AIR PIPE
7. REMOVE SPARK PLUGS
Using a 16 mm plug wrench, remove the six spark
plugs.
8. REMOVE PS DRIVE BELT AND PUMP PULLEY
9. DISCONNECT PS PUMP FROM ENGINE
10. REMOVE A/C DRIVE BELT
11. REMOVE COOLING FAN
Remove the four nuts and cooling fan.
12. REMOVE GENERATOR DRIVE BELT
–ENGINE ENGINE MECHANICAL
EG2–33
