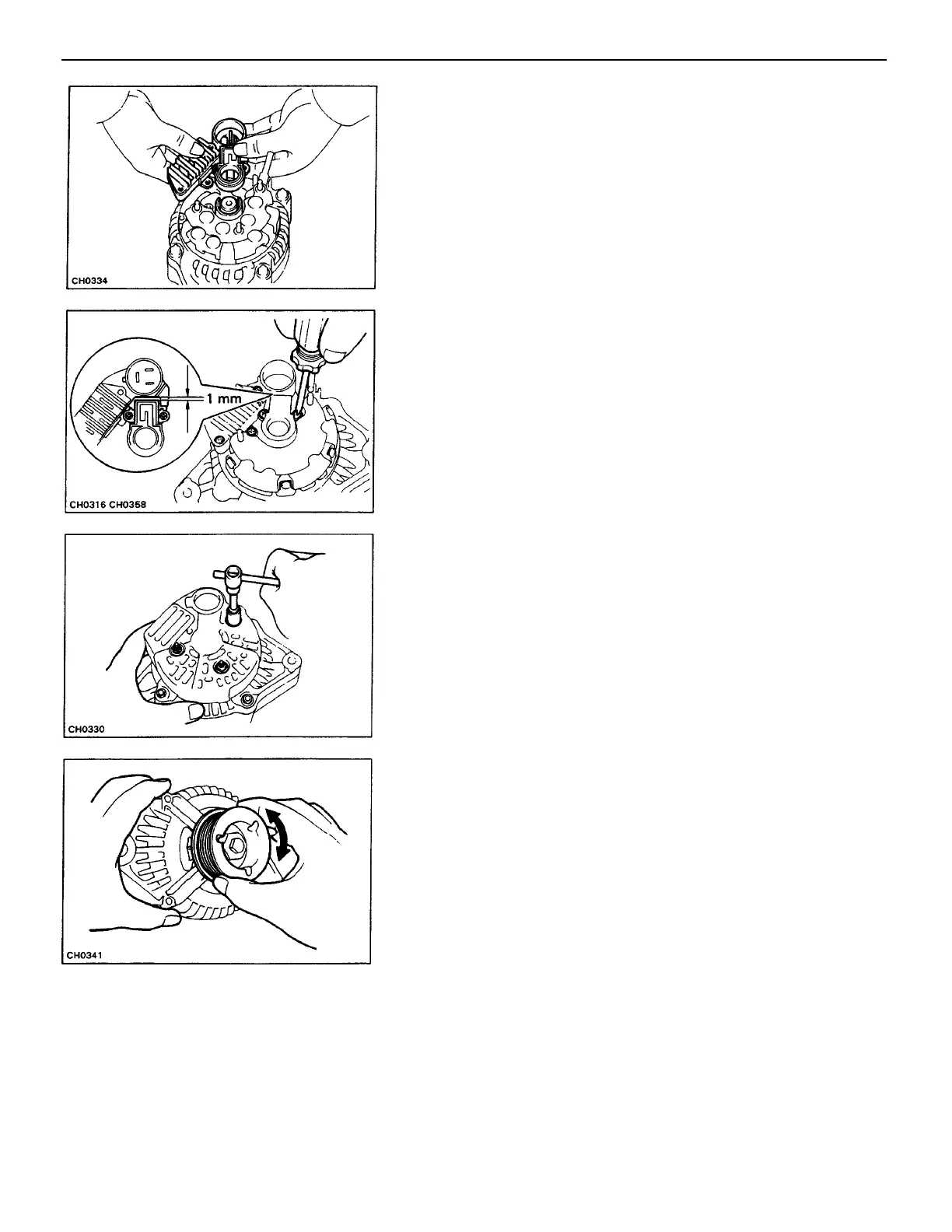

5. INSTALL BRUSH HOLDER AND IC REGULATOR
(a) Place the brush holder cover to the brush holder.
(b) Install the IC regulator and brush holder to the rear
end frame horizontally as shown in the illustration.
HINT: Check that the brush holder’s cover doesn’t slip
to one side during installation.
(c) Tighten the five screws until there is a clearance of
at least 1 mm (0.04 in.) between the brush holder
cover and connector.
6. INSTALL REAR END COVER
(a) Install the end cover with the three nuts.
(b) Install the terminal insulator with the nut.
7. MAKE SURE ROTOR ROTATES SMOOTHLY
–CHARGING SYSTEM Generator
CH–15
