Toyota 22R-E - Engine Coolant Temperature (ECT) Sensor Inspection

To Next Page

To Previous Page

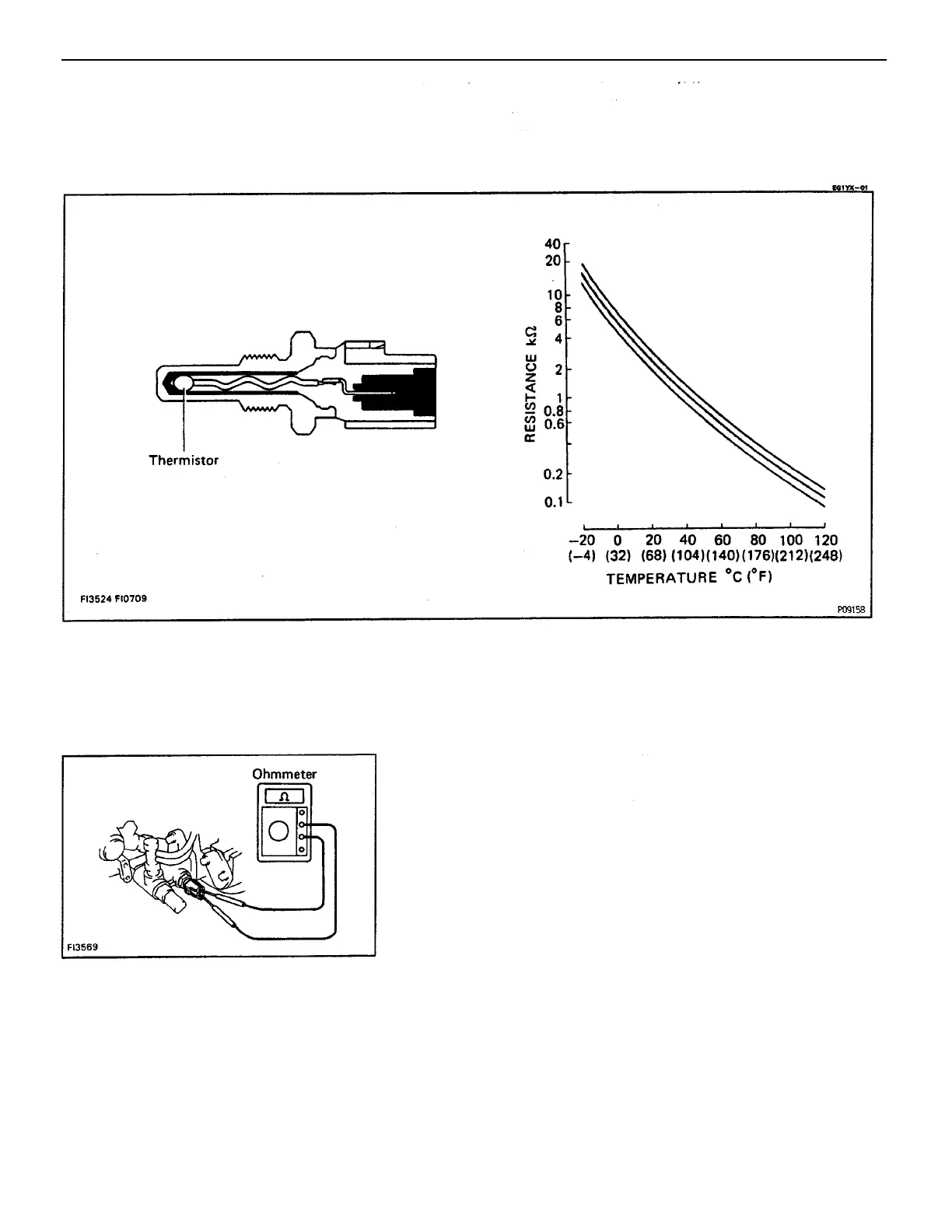

ENGINE COOLANT TEMPERATURE (ECT)

SENSOR INSPECTION

(a) Disconnect the connector.

(b) Using an ohmmeter, measure the resistance between

the terminals.

Resistance: Refer to the chart above.

ENGINE COOLANT TEMPERATURE

(ECT) SENSOR

–ENGINE MFI SYSTEM

EG1–209
