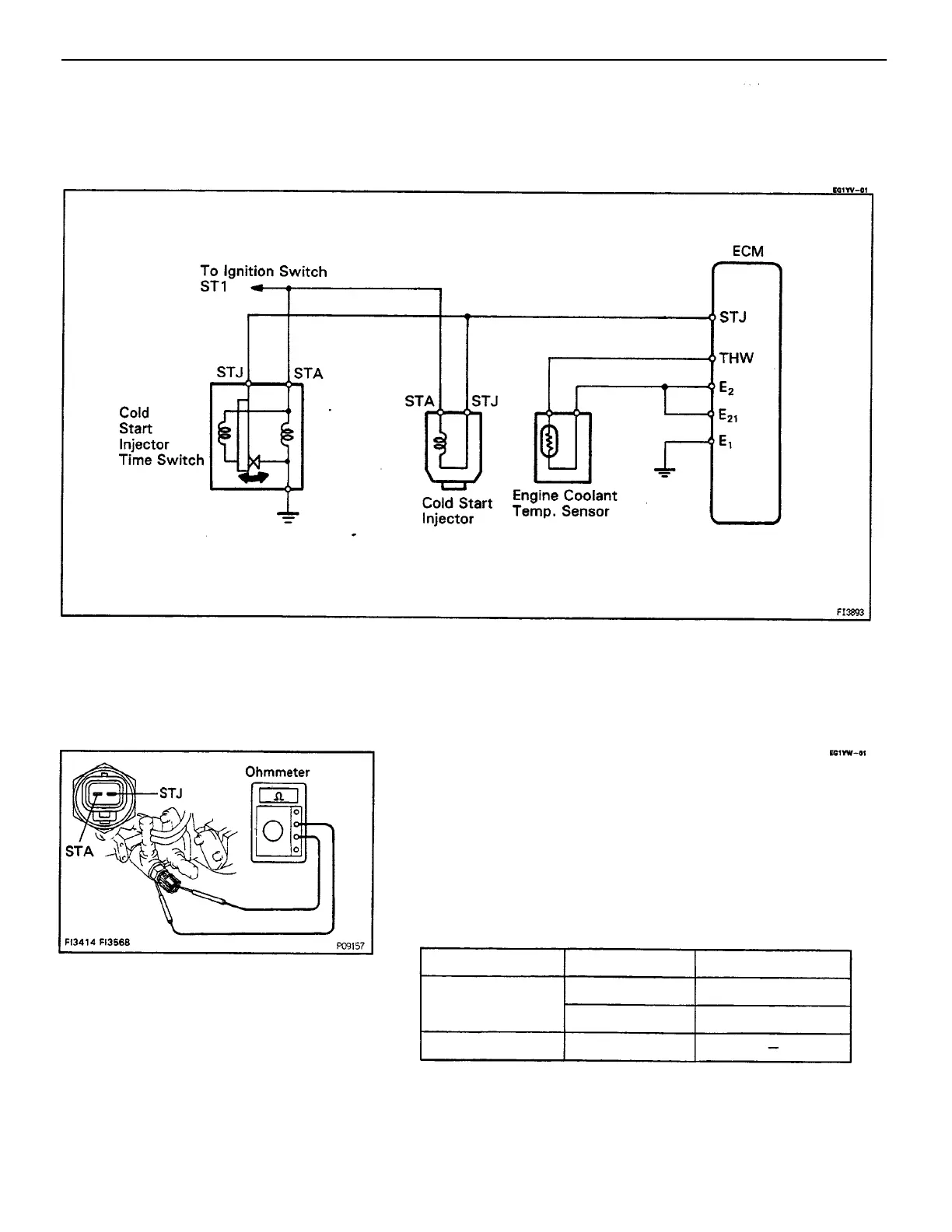

START INJECTOR TIME SWITCH

INSPECTION

MEASURE RESISTANCE OF START INJECTOR TIME

SWITCH

(a) Disconnect the connector.

(b) Using an ohmmeter, measure the resistance between

terminals.

COLD START INJECTOR TIME

SWITCH

Coolant temperature

below 10C (54F)

above 30C (86F)

Between terminals

Resistance (Ω )

STA – Ground

STA – STJ

65–90

30– 50

30–90

V01952
