6. CHECK AND ADJUST VALVE CLEARANCE
(See Tune – Up, steps 7 and 8 on pages EG –19 to
21)
Turn the camshaft and position the cam lobe upward,
check and adjust the valve clearance.
Valve clearance (Cold):
Intake
0.18 – 0.28 mm (0.007 – 0.011 in.)
Exhaust
0.22 – 0.32 mm (0.009 – 0.013 in.)
(d) Apply a light coat of engine oil on the threads and
under the heads of the bearing cap bolts.

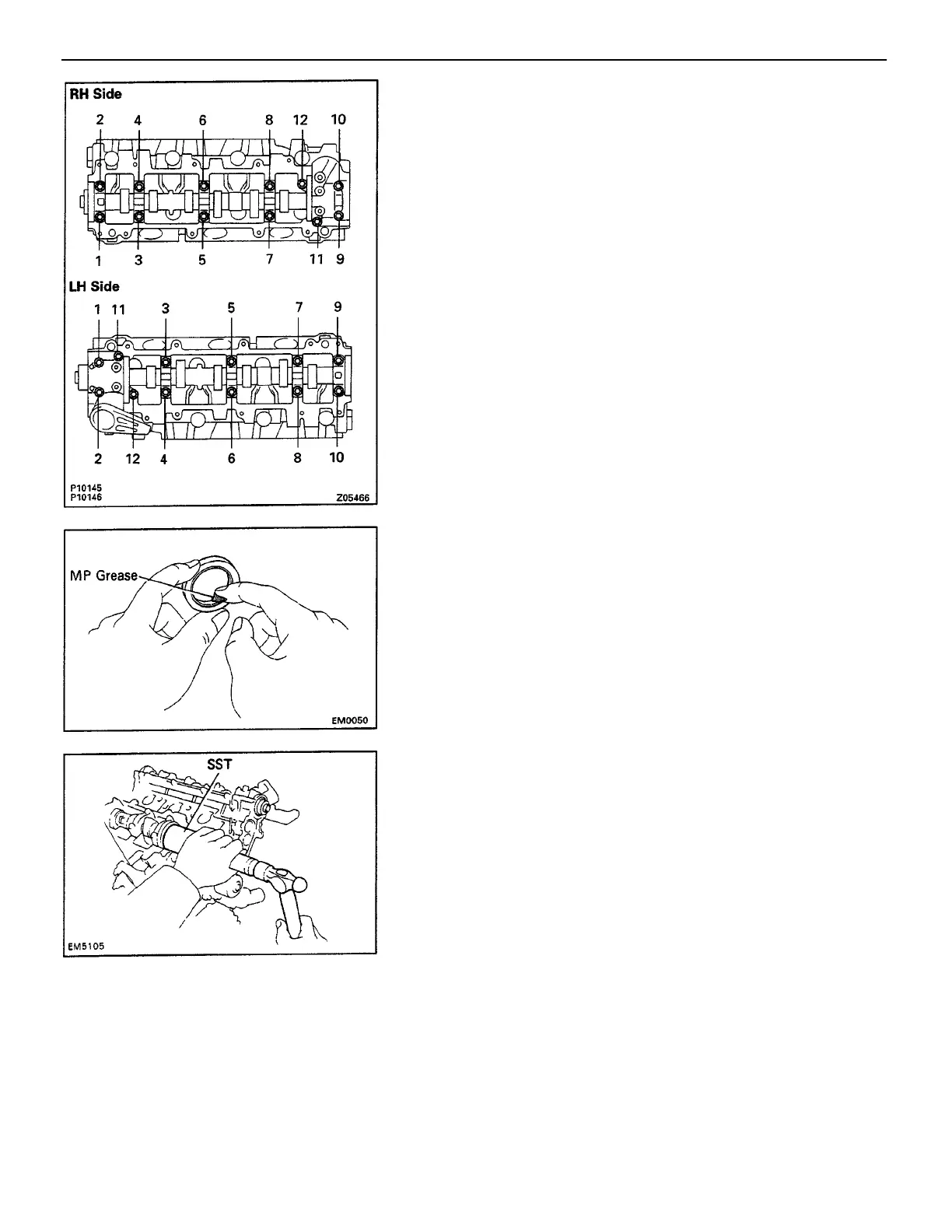

(e) Install and uniformly tighten the twelve bearing cap
bolts on one side in several passes, in the sequence
shown, then do the other side as shown.
Torque: 16 N–m (160 kgf–cm, 12 ft–lbf)
(g) Using SST, tap in the two camshaft oil seals.
SST 09214–60010
(f) Apply MP grease to a new oil seal lip.
–ENGINE ENGINE MECHANICAL
EG2–79
