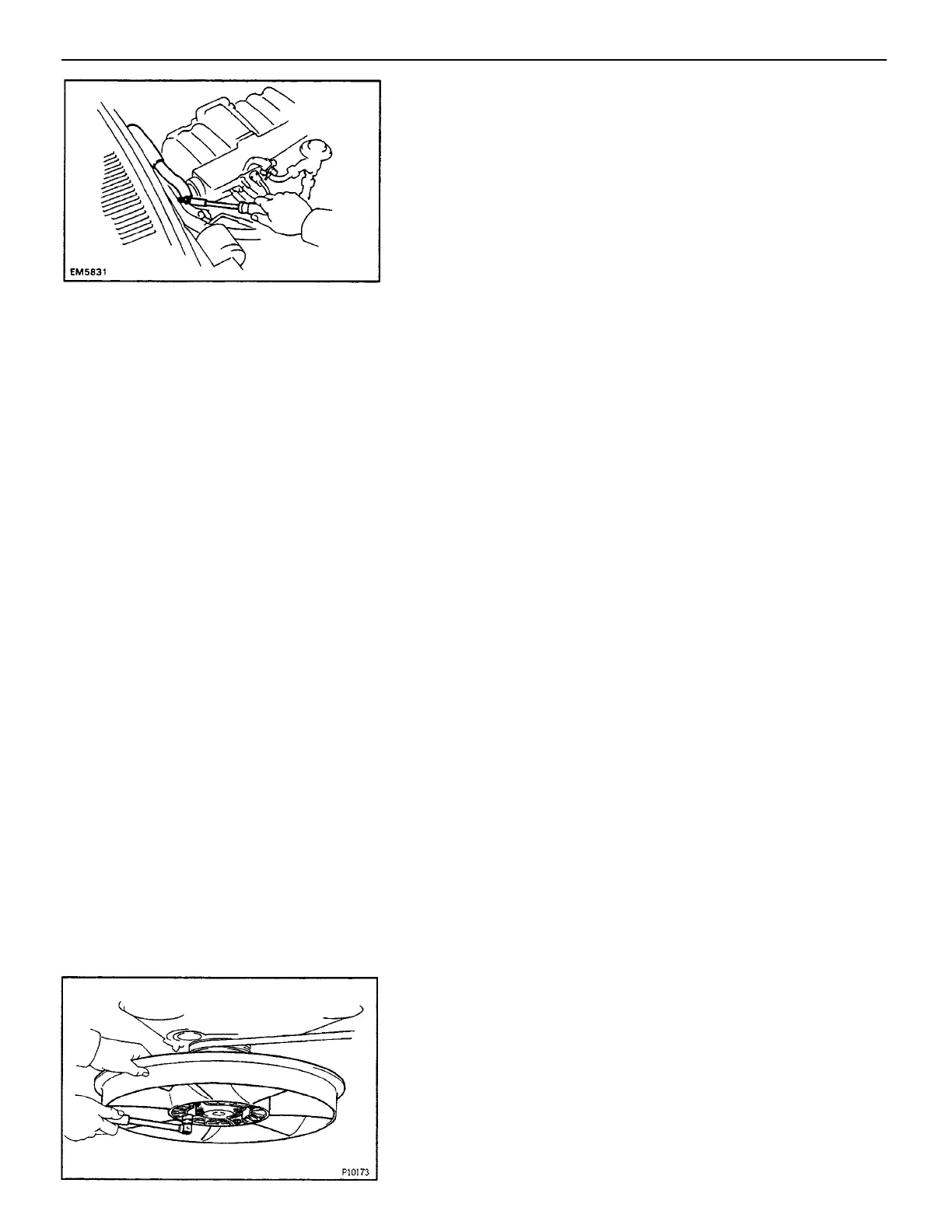

21. CONNECT STRAP, WIRES, CONNECTORS,
HOSES AND CABLES
(a) Connect the following cables:
• Accelerator cable
• (A/T only)
Throttle cable
• (w/ Cruise Control System)
Cruise control cable
(b) Connect the following hoses:
• PS air hoses to gas filter and air pipe
• Brake booster hose
• (w/ Cruise Control System)
Cruise control vacuum hose
• Charcoal canister hose to canister
• VSV vacuum hoses
(c) Connect the following strap, wires and connectors:
• Ground strap to LH fender apron
• Generator connector and wire
• Igniter connector
• Oil pressure sender gauge connector
• Ground strap to engine rear side
• ECM connectors
• VSV connectors
• A/C compressor connector
• (M/T only)
Starter relay connector
• Solenoid resister connector
• Data link connector 1
• (w/ ADD)
ADD switch connector
22. INSTALL GENERATOR DRIVE BELT
23. INSTALL COOLING FAN
Install the cooling fan with the four nuts.
Torque: 5.4 N–m (55 kgf–cm, 48 in.–Ibf)
24. INSTALL A/C DRIVE BELT
19. CONNECT HEATER HOSES
20. CONNECT FUEL INLET AND OUTLET HOSES
–ENGINE ENGINE MECHANICAL
EG2–132
