(See Components)

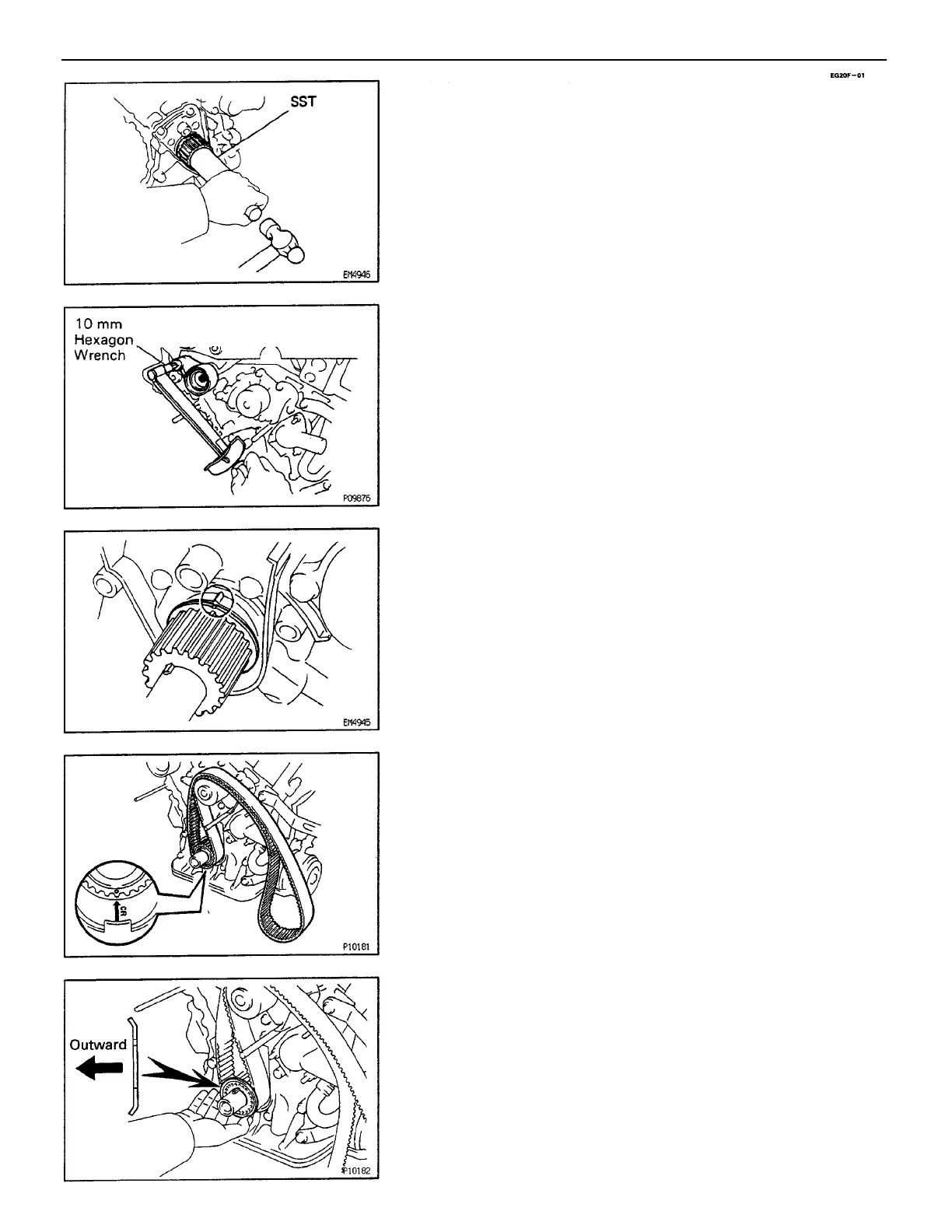

1. INSTALL CRANKSHAFT TIMING PULLEY
(a) Align the timing pulley set key with the key groove of
the pulley.
(b) Using SST and a hammer, tap in the timing pulley,
facing the flange side inward.
SST 09214–60010
(b) Remove any oil or water on the crankshaft timing
pulley and water pump pulley, and keep them clean.
(c) Align the installation mark on the timing belt with the
dot mark of the crankshaft timing pulley.
(d) Install the timing belt on the crankshaft timing pulley
and water pump pulley.
2. INSTALL NO.1 IDLER PULLEY
(a) Using a 10 mm hexagon wrench, install the plate
washer and idler pulley with the pivot bolt.
Torque: 34 N–m (350 kgf–cm, 25 ft–lbf)
(b) Check that the pulley bracket moves smoothly.
3. TEMPORARILY INSTALL TIMING BELT
NOTICE: The engine should be cold.
(a) Using the crankshaft pulley bolt, turn the crankshaft
and align the timing marks of the crankshaft timing
pulley and oil pump body.
4. INSTALL TIMING BELT GUIDE
Install the belt guide, facing the cup side outward.
TIMING BELT INSTALLATION
–ENGINE ENGINE MECHANICAL
EG2–41
